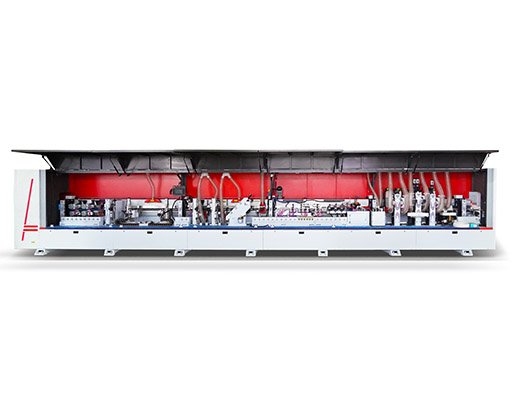

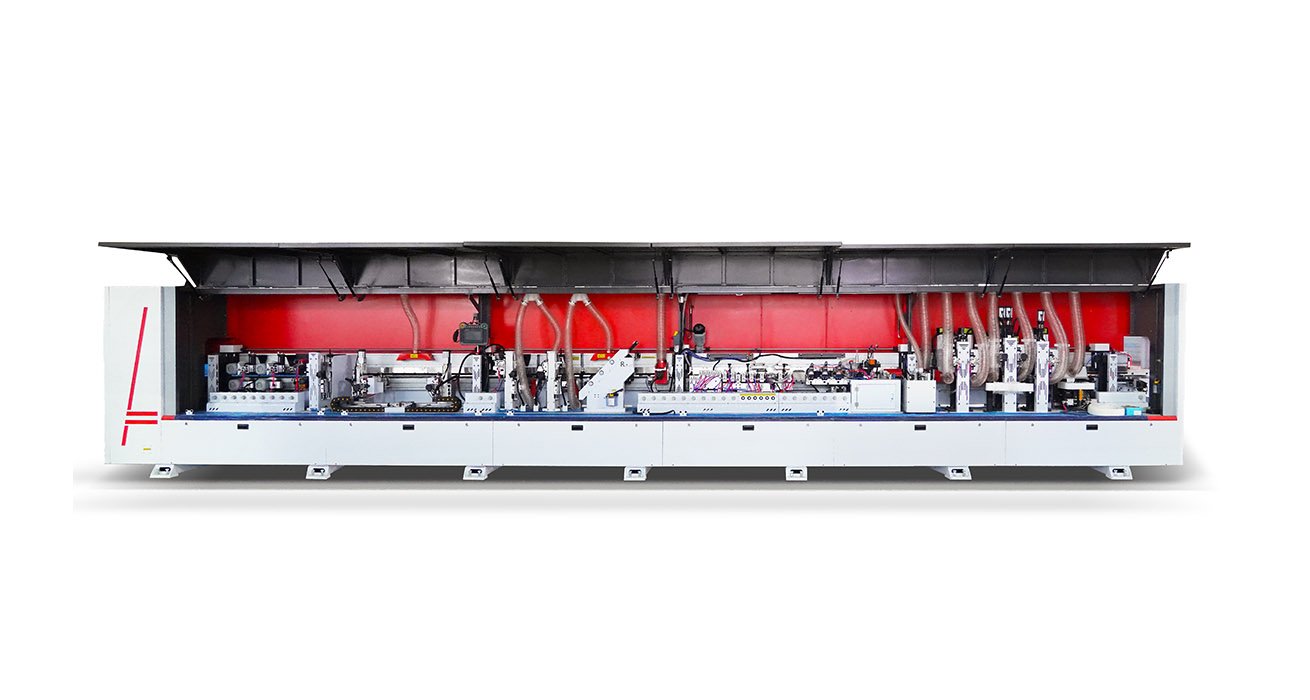

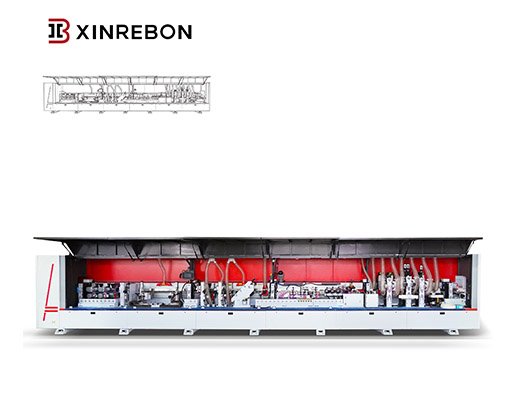

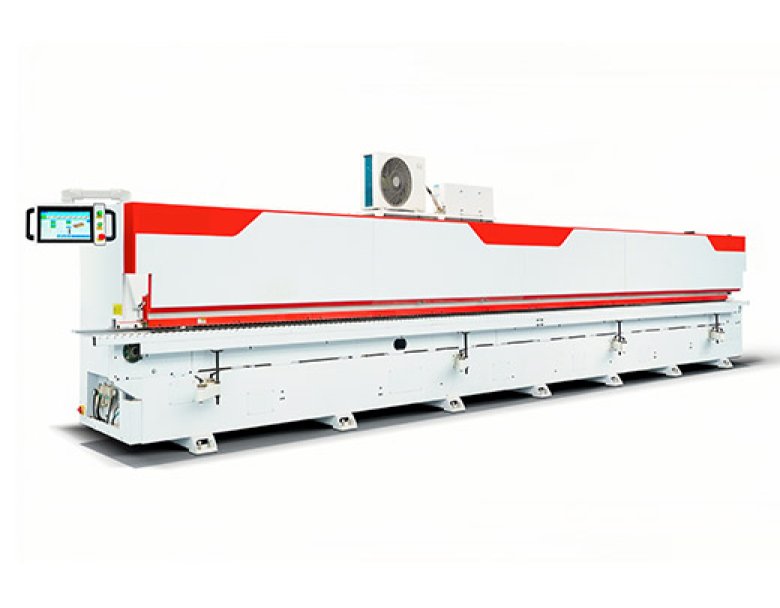

soft forming edge banding machine

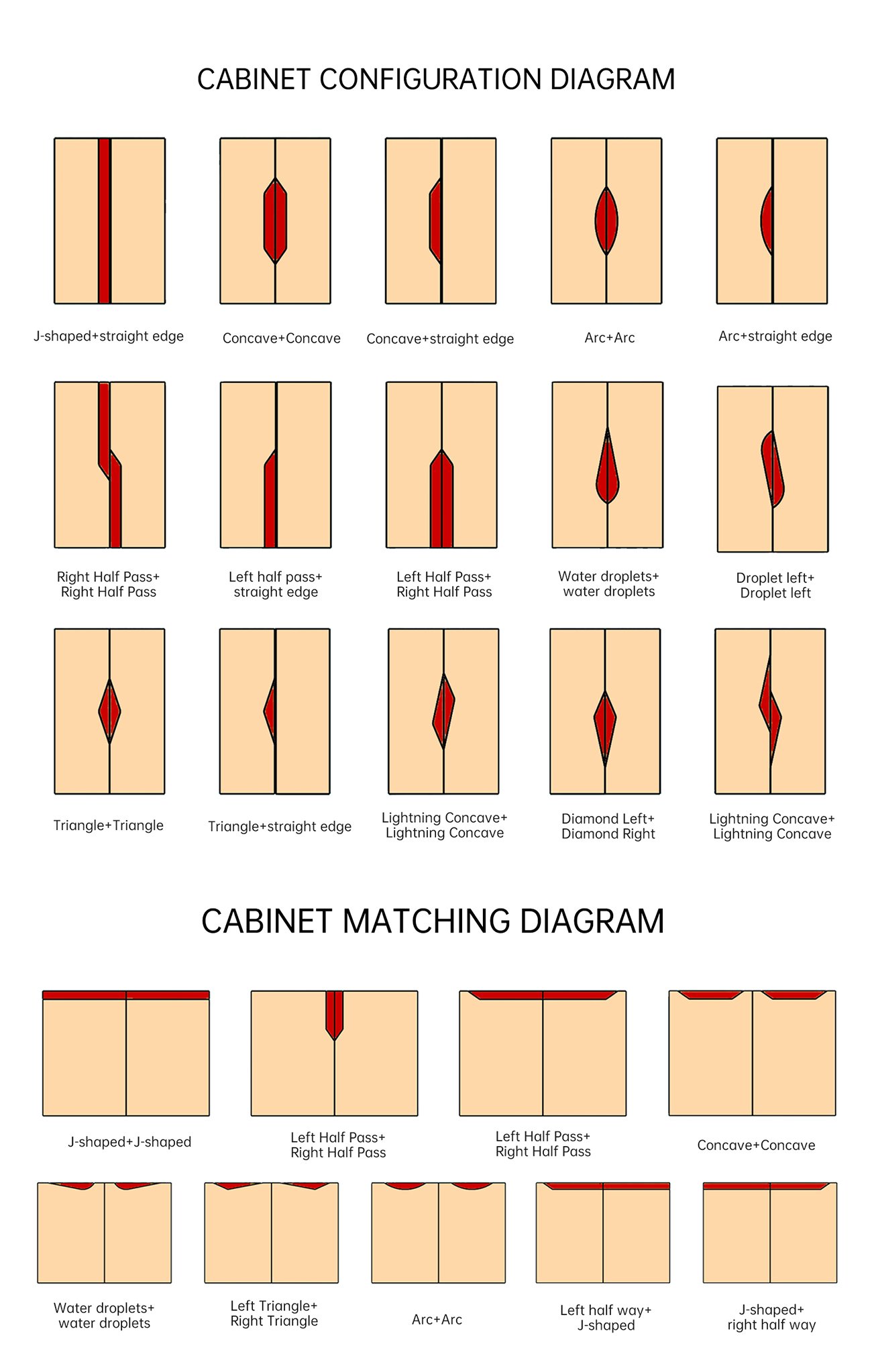

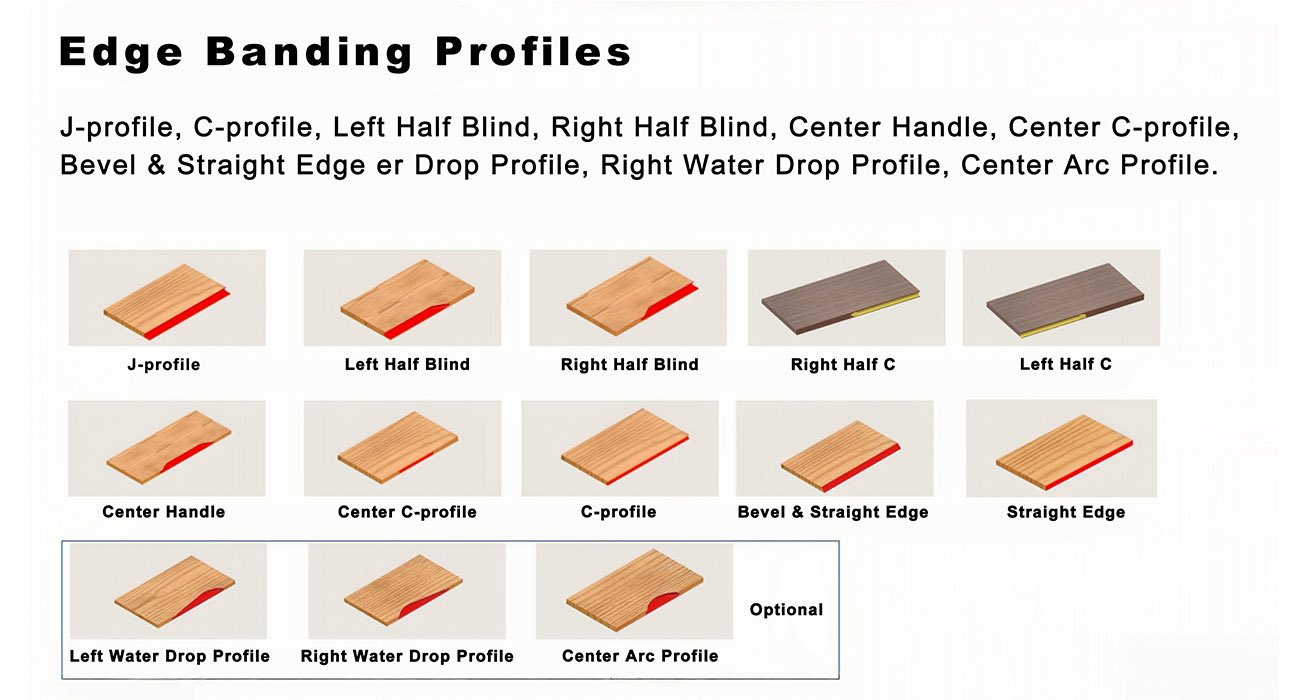

TRS-980PUR is an automatic soft forming edge banding machine for J/C shape handle-free cabinet doors. Equipped with precise profiling mold, its processing tolerance is controlled within 0.5mm. QR code scanning processing function is supported to save labor and boost production efficiency.
The whole machine adopts heavy-duty pressure beam and upright columns, with integrated design for cabinet partitions.
Inquire now
+Add to cart
+Product Details
Reviews
Inquiry
Products Recommended
Product Details
The interior is neat without blind viewing areas. Total machine power is increased to 70.5 kW, and profiling power is upgraded to 7.5 kW.The processing speed is improved by nearly 20%.
It features 18 working procedures and 14 servo positioning axes. A 21.5-inch HMl touch screen enables intelligent and convenient operation, with one-click switching between functions and real-time machine working status monitoring. Fitted with a branded air-conditioner for constant-temperature processing to deliver more stable operation.
All components are premium-brand parts with precise assembly to guarantee equipment reliability. The machine can operate under high-low-temperature conditions and other harsh environments. It boasts outstanding performance including high stability, high efficiency and high-processing accuracy.
-

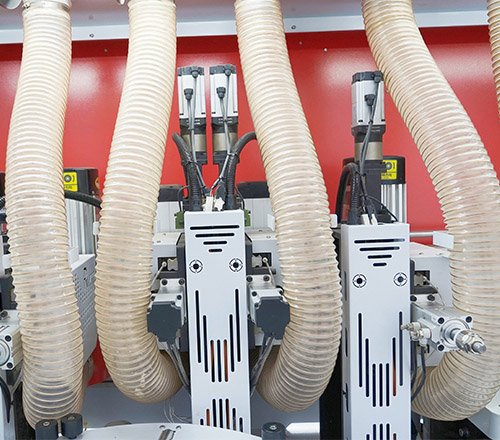

Pre-Milling
Dual 2.2 kW linear pre‑milling, 6.5 kW rough profiling, 7.5 kW high‑speed spindle motor with servo positioning for precise profiling, dual 7.5 kW cross‑rotary disc cutter profiling (45° bevel & straight edge)
-

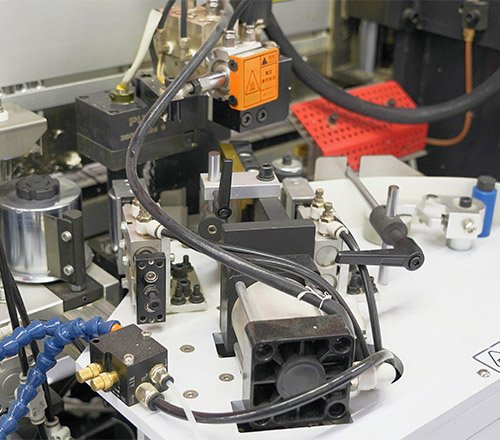

Gluing+Grooving
The edge band is evenly coated with adhesive. Edge band grooving enables 45° edge bending.
-

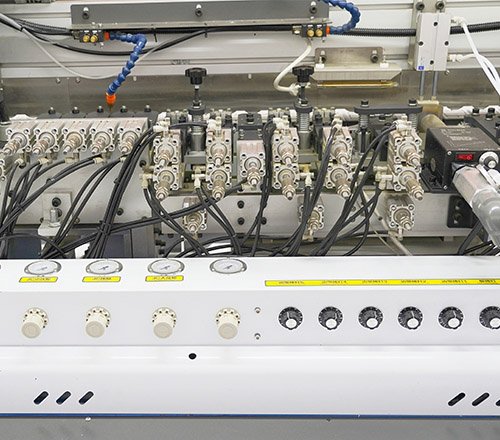

Pressing Unit
Pressing unit, specially designed for PUR adhesive. Pre-pressing fully fits the edge band tightly and smoothly onto panels without wrinkles, equipped with a spray cooling device.
-

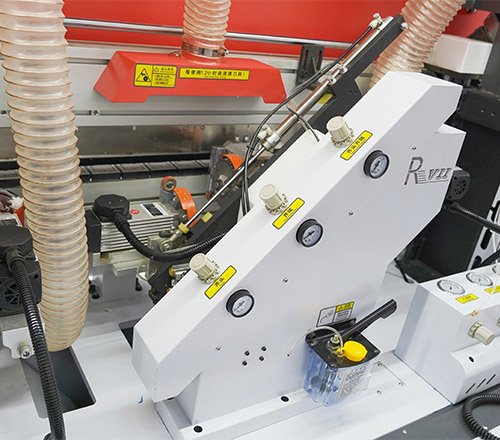

End Cutting
Quick edge‑band cutting with precision linear guide movement, template automatic tracking and high‑frequency high‑speed motor cutting unit.
-

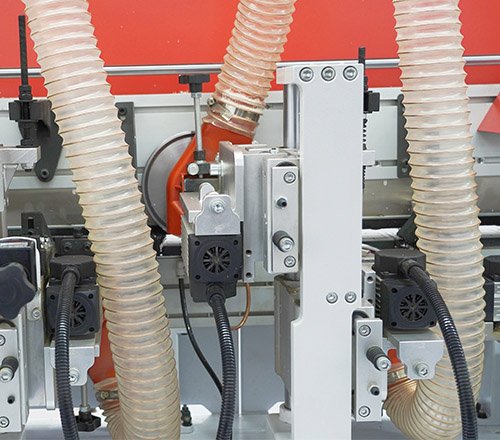

Dual Trimming Unit
First trimming: remove top & bottom excess edge band to align edge‑band height with panel height; second trimming group tracks panel position and profiles for handle cut‑out.
-

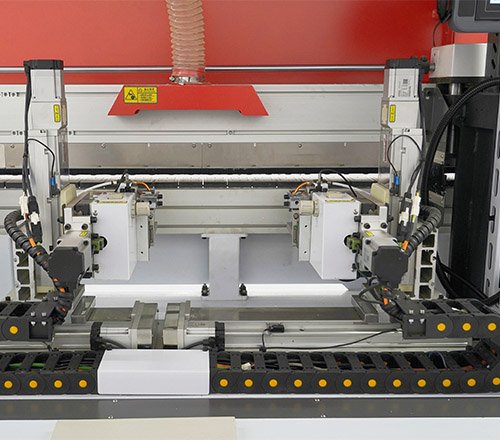

End‑face Tracking Chamfering
High‑speed tracking system: full‑servo steel rail motion, auto‑recognition of end‑face shape for radius corner following, high precision and fast operation speed.
-

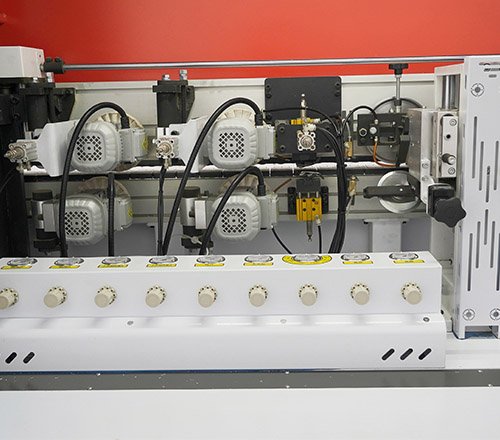

Scraping + Polishing
3D flexible round scraping; flexible flat scraper reciprocates at handle cut‑out position to clear panel surface chips; dual polishing unit moves back‑and‑forth following handle cut‑out position
-

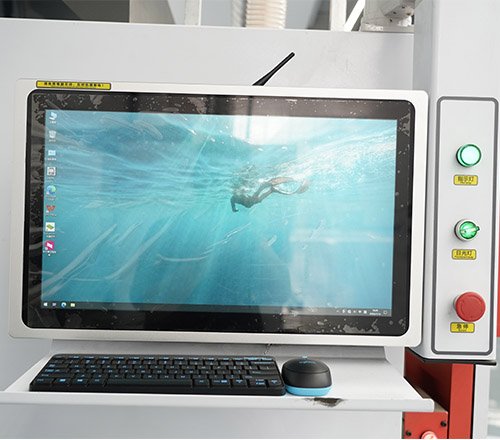

Control screen
Control the 21.5-inch industrialtouch screen. It has highsensitivity and is easy to operate.1. Start/stop equipment2. Function selection3. Parameter setting4. Warning notification5. Other functions
