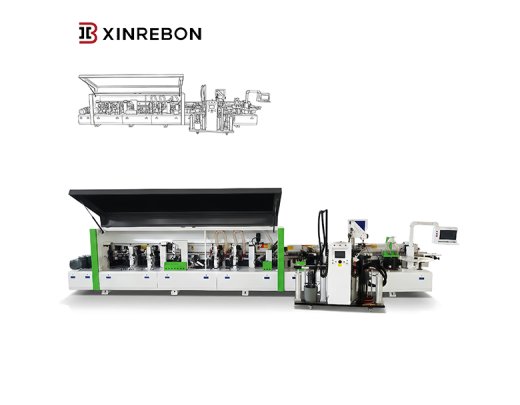

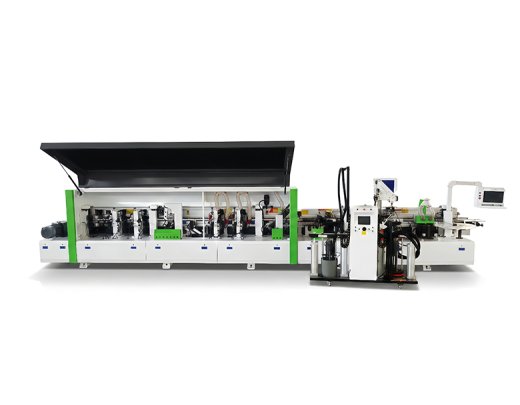

- RD903 edge banding machine
The RD903 Automatic Edge Banding Machine features eight core functions that enable a comprehensive upgrade of the edge banding process, supporting furniture production and manufacturing. The machine features an EVA-top Teflon glue pot (with a rapid pre-melting device) combined with a dedicated PUR glue pot, 6-roller pressing, and a roller glue scraping function. It has a maximum processing height of 55mm for end trimming, employs a dual precision trimming mode for superior results, and is equipped with a defoaming agent spray system and dual-sided polishing (top and bottom). The machine is controlled by encoders for higher precision, features a large-size touchscreen and Delta PLC, and utilizes aluminum pressure plates for enhanced durability.
Inquire now
+Add to cart
+Product Details
Reviews
Inquiry
Products Recommended
Product Details
| Model: | RD903 |
| Total power: | 25kw |
| Plate thickness: | 10-55mm |
| Conveying speed: | 15-25m/min |
| Min.Panel Length | 150mm |
| Edge thickness: | 0.3-3mm |
| Min. Panel Width | ≥80mm |
| Size: | 9300*1000*1700mm |
| Function |

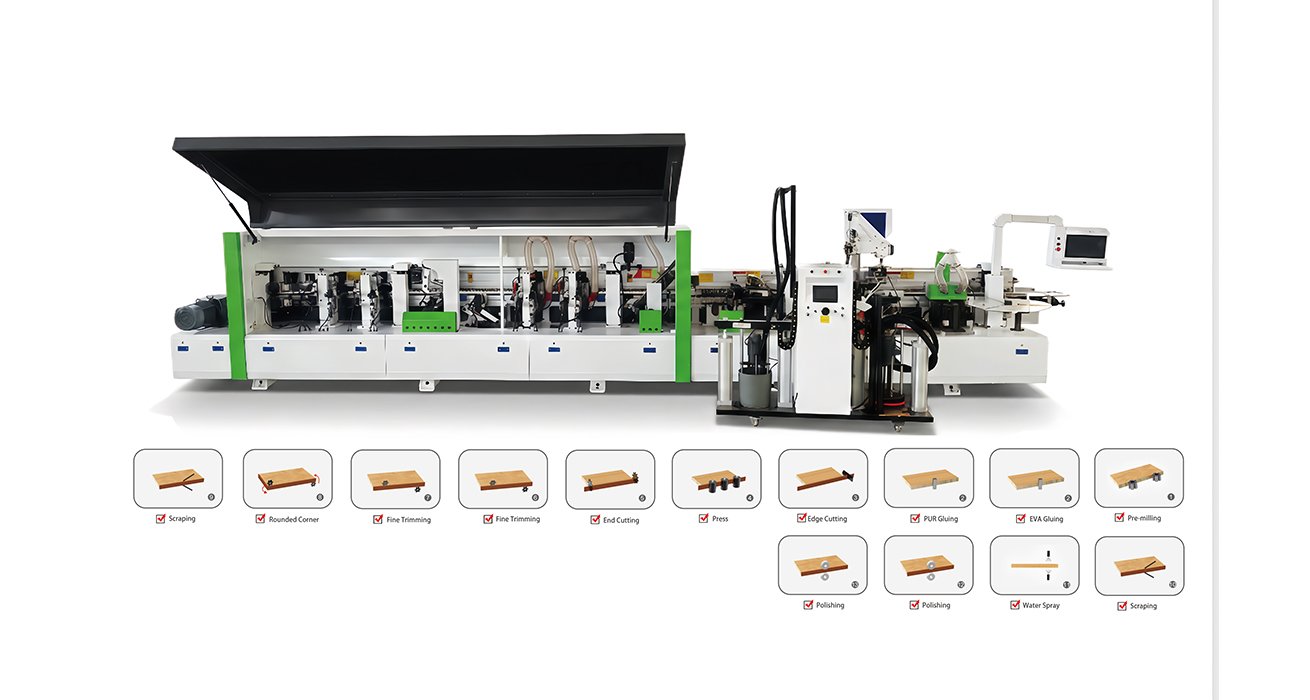

| Function 1: Pre-milling Function 2: EVA Gluing+PUR Gluing Function 3: End Cutting Function 4: Fine trimming Function 5: Fine trimming Function 6: Corner rounding Function 7: Scraping Function 8: Scraping Function 9: Pneumatic flat scraper Function 10: Polishing Function 11: Polishing |
-

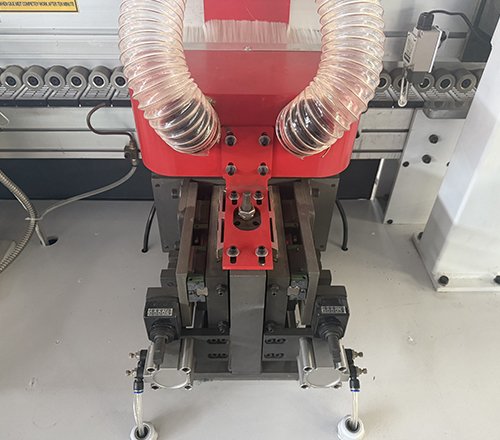

Pre-milling
-

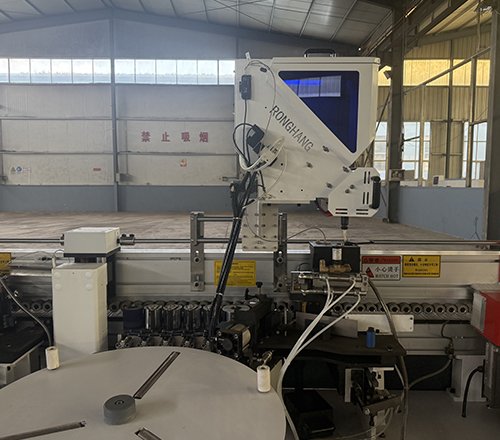

Quick pre-melt top glue pot
-

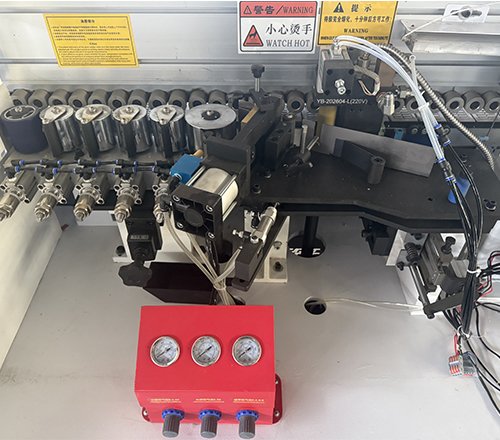

PUR Guling
-

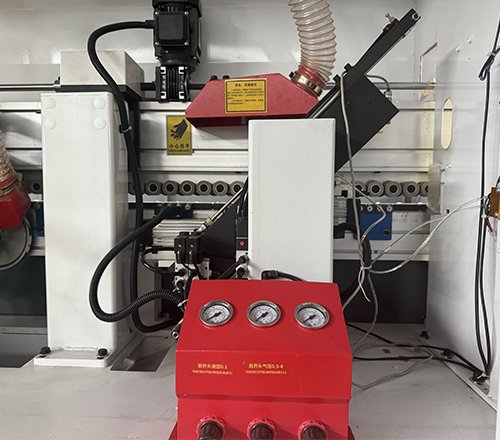

End Cutting
-

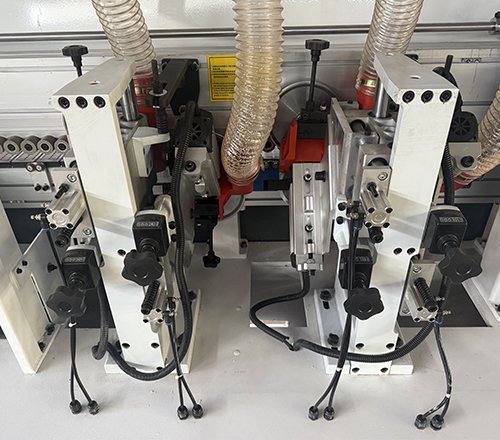

Two Fine trimming
-

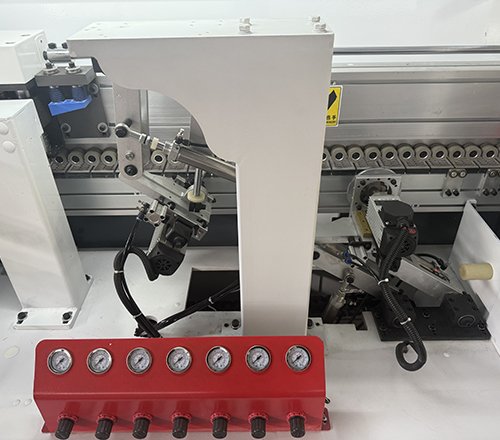

Corner Rounding
-

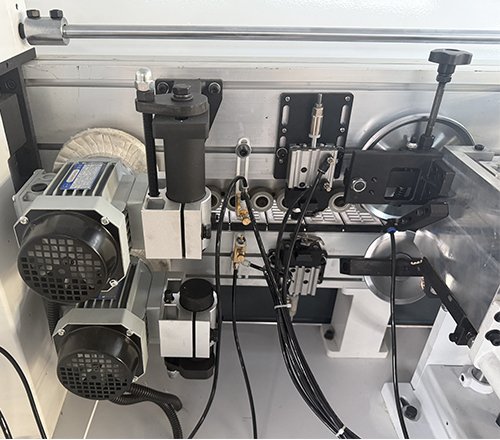

Pneumatic flat scraper + double polishing
-

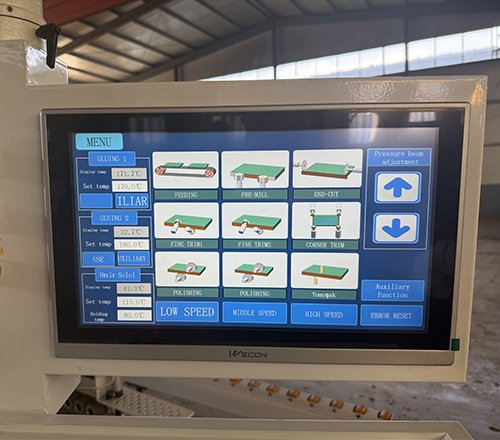

Touchscreen Control
| Effect Display | |
 |  |
Freouent Asked Ouestion |
What is the size of the edge banding machine? |
What is the voltage? |
Can the machine be customized? The appearance and color of the machine can be customized according to customer's requirements. |
