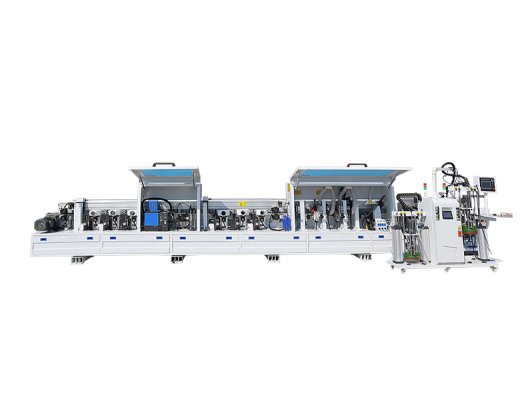

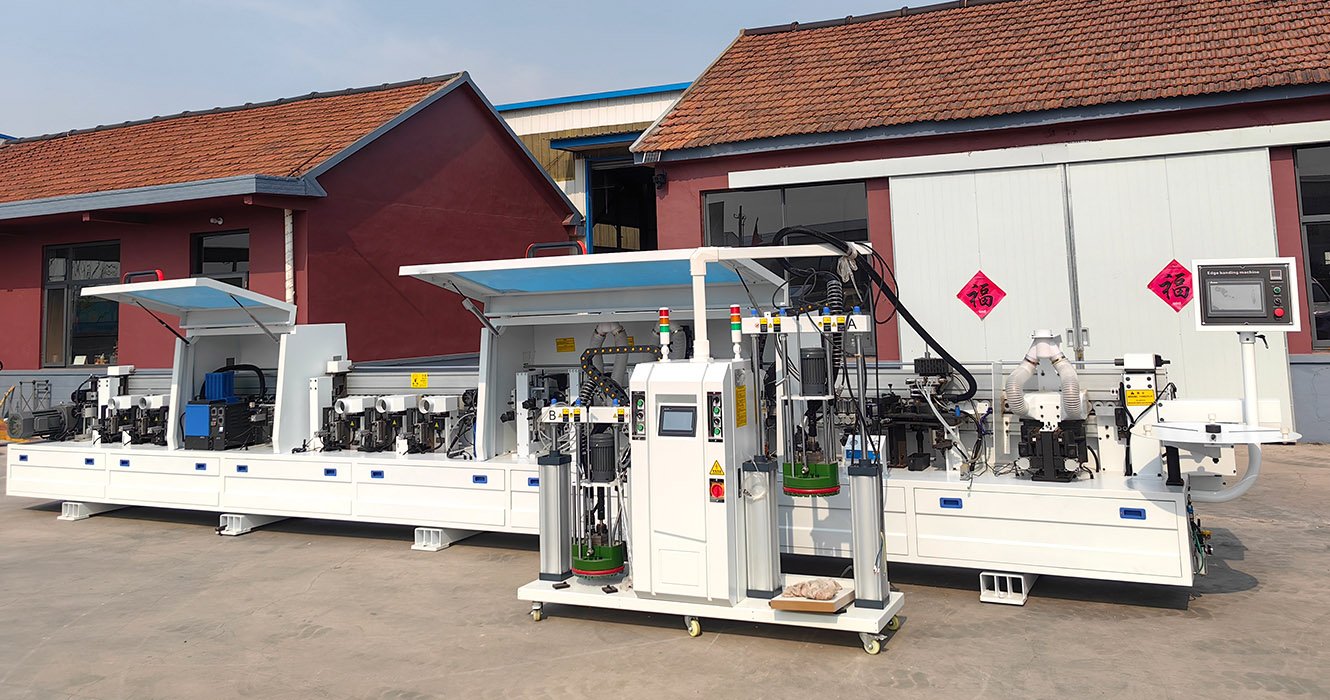

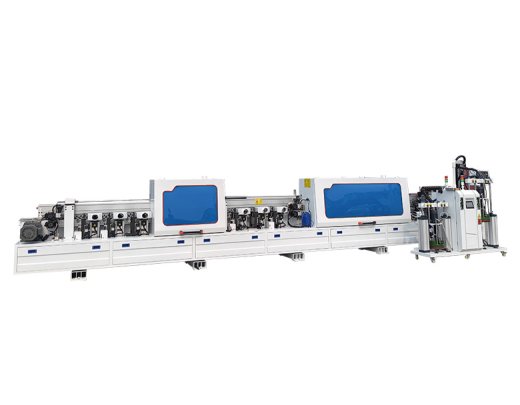

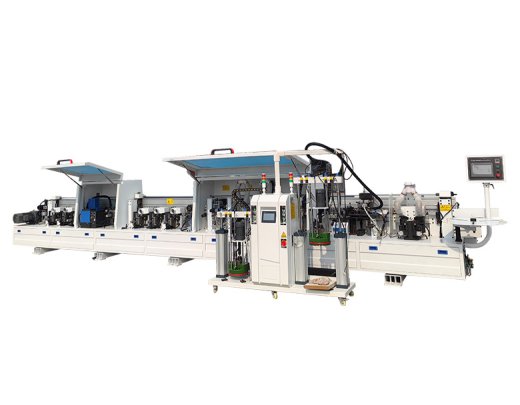

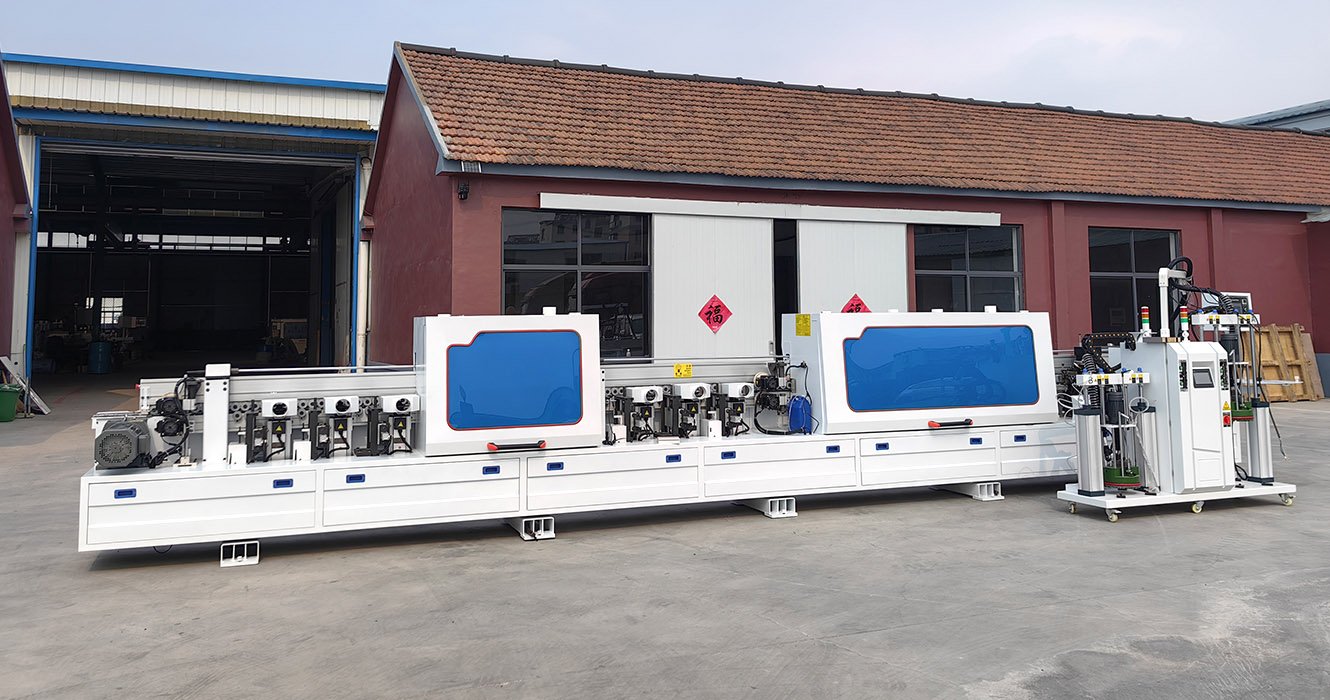

- Wood Door Casing Line Machine

roduct structure: pre-miling, upper glue pot (optional PUR two-color glue machine), glue coating (can beautomatically glued), belt feeding, pressing, trimming, fine trimming, edge scraping, cleaning, polishing, sevenslots, hot melt glue machine. Pre-miling motor 2.2KW*2 units, glue pot 1.5Kw, two-color PUR glue machine1.5Kw, glue coating motor 0.75Kw, trimming motor 0.55KW*2 units, fine trimming motor 0.75K*4 units, polishing0.37KW*4 units, hot melt alue machine 1.5Kw, slot 2 slot 3 motor 6.5Kw*2 units, Slot 1. Slot 4. Slot 5. slot 6. Slot7, 4Kw*5 motors each, 0.37KW1 lifting motor, 7.5KW main motor.

share:

Inquire now

+

Add to cart

+

Product Details

Reviews

Inquiry

Products Recommended

Product Details

This machine is suitable for door companies, wooden doors are edge-sealed in the same color, without glueline, and a 3cm step sleeve is opened after the edge is sealed. lt can also open the horizontal head, all areautomatic, no workers need to adjust it, fool-proof, as long as the workers know how to operate it.



Plate length≥600mm
Plate width≥90mm
Plate thickness10-60mm
PVC width15-65mm
PVC thickness0.2-2.5mm
Workpiece conveying speed18m/min
Air pressure0.6MPa-0.8Mpa
Total Power56.5kw
Overall dimension11000*900*1650mm
Weight3300kg

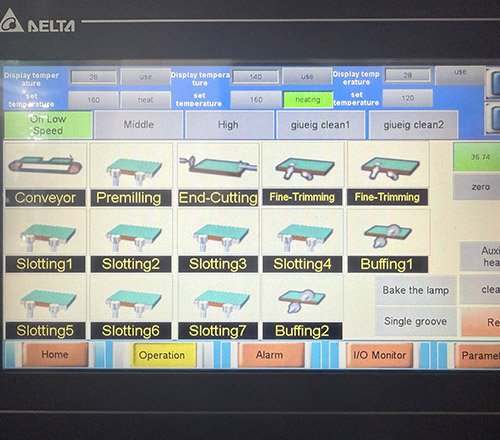

  • Control Panel

    Control Panel
  • Pre-milling

    Pre-milling

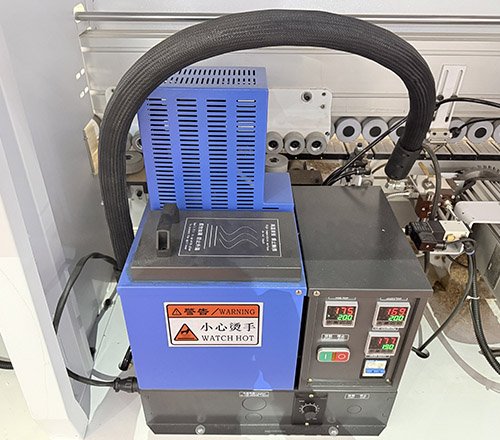

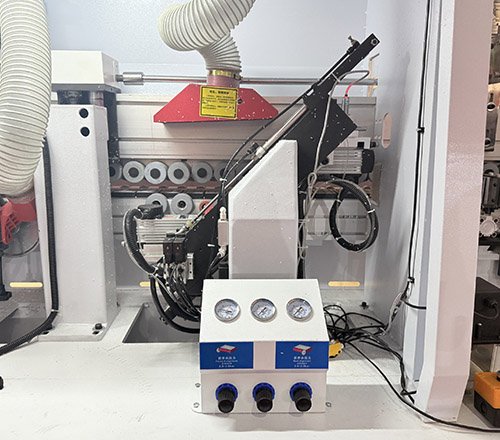

  • EVA quick pre-melting + PUR double glue pot

    EVA quick pre-melting + PUR double glue pot

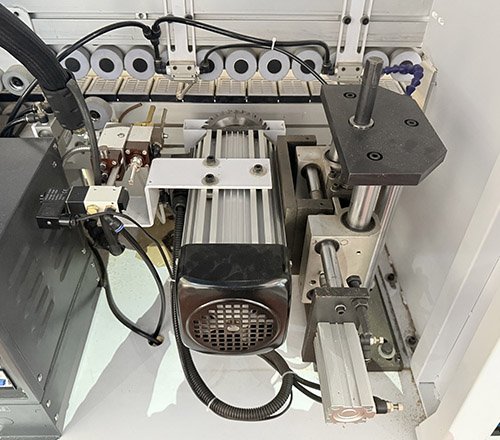

  • End cutting

    End cutting

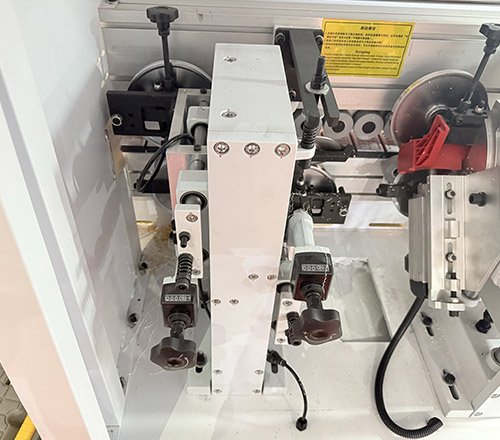

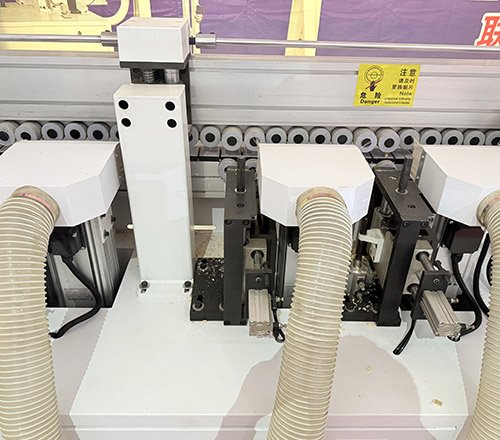

  • Double fine trimming

    Double fine trimming
  • Scrape

    Scrape

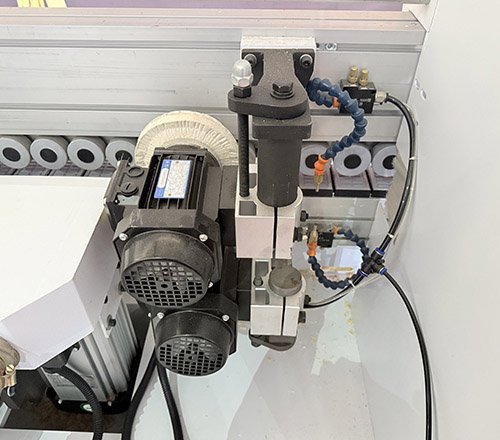

  • Polishing wheel

    Polishing wheel
  • Plate slotting

    Plate slotting
  • Cutting

    Cutting
  • Gluing

    Gluing
  • Plate slotting

    Plate slotting
  • Polishing wheel

    Polishing wheel

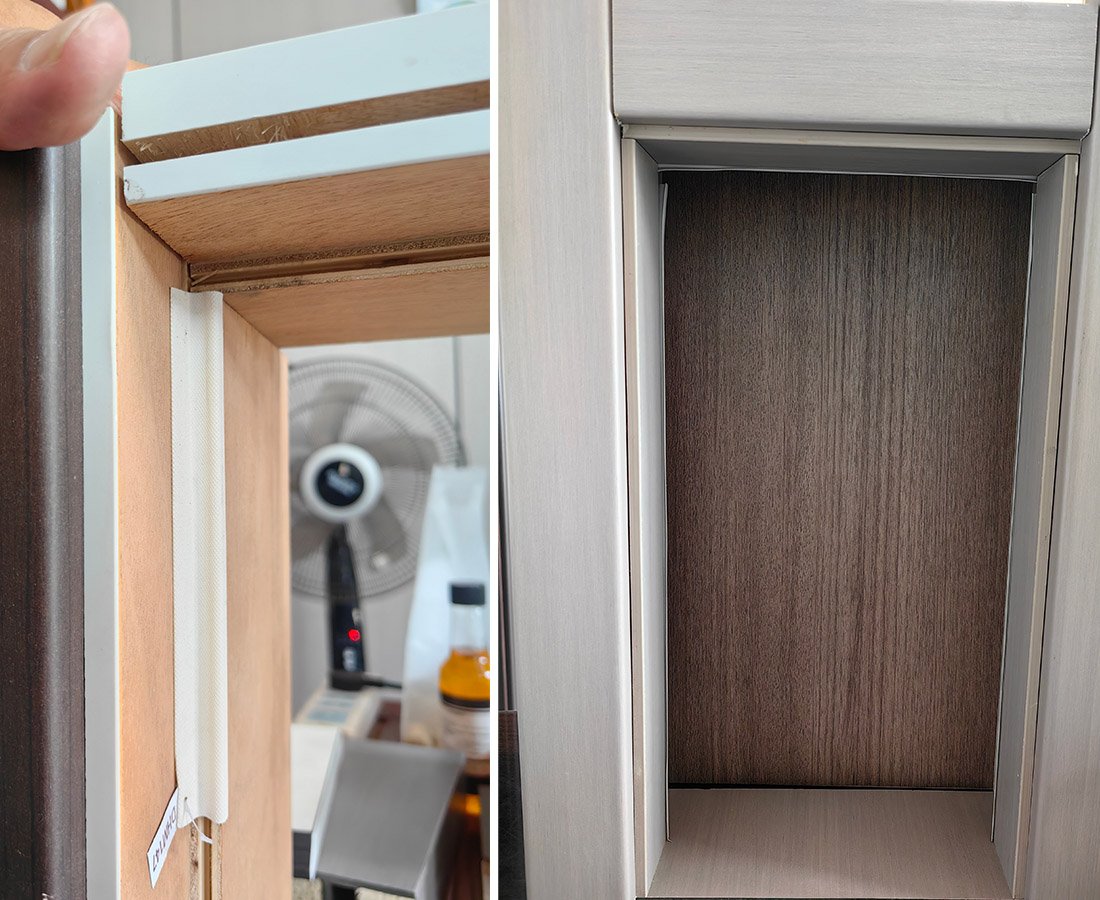

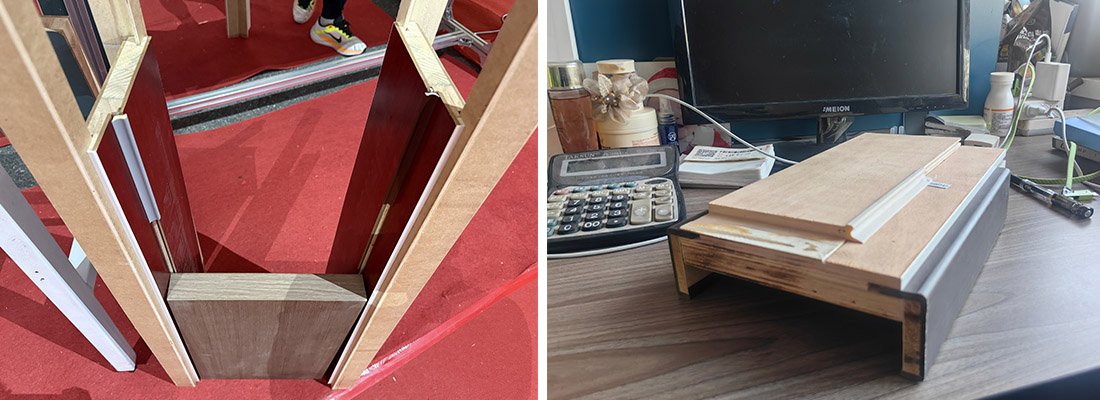

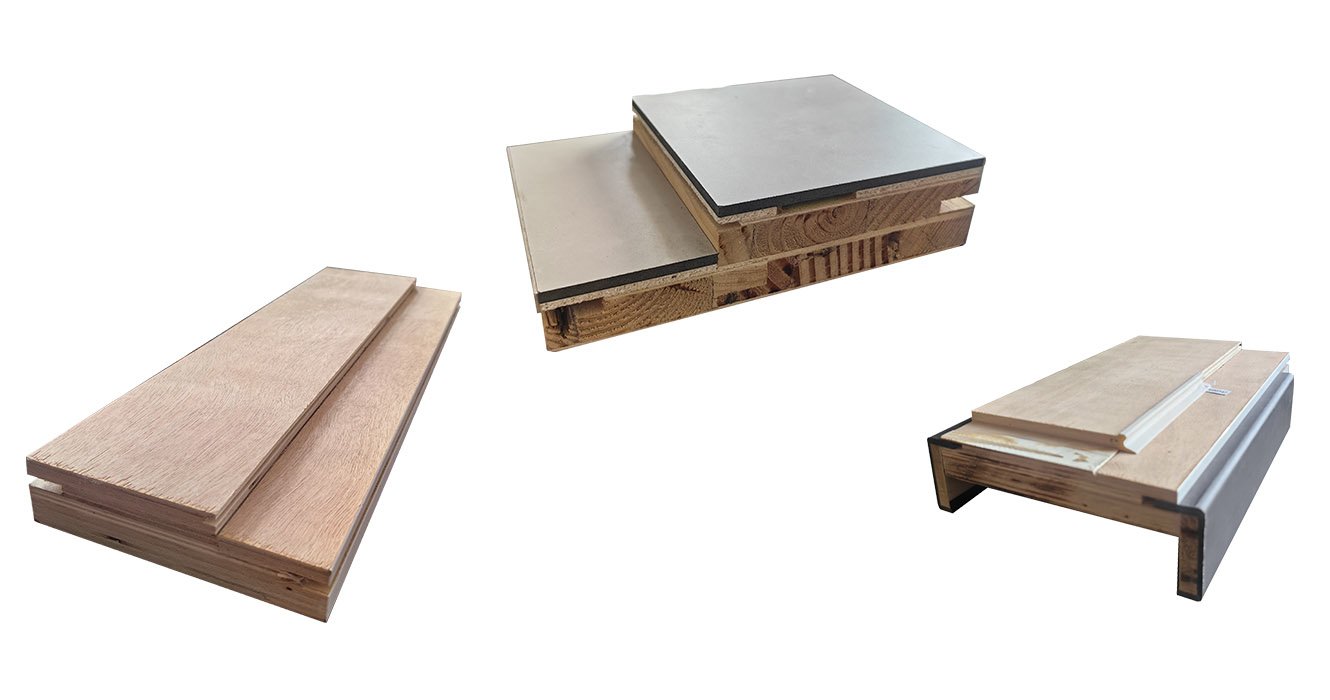

Product Effects
