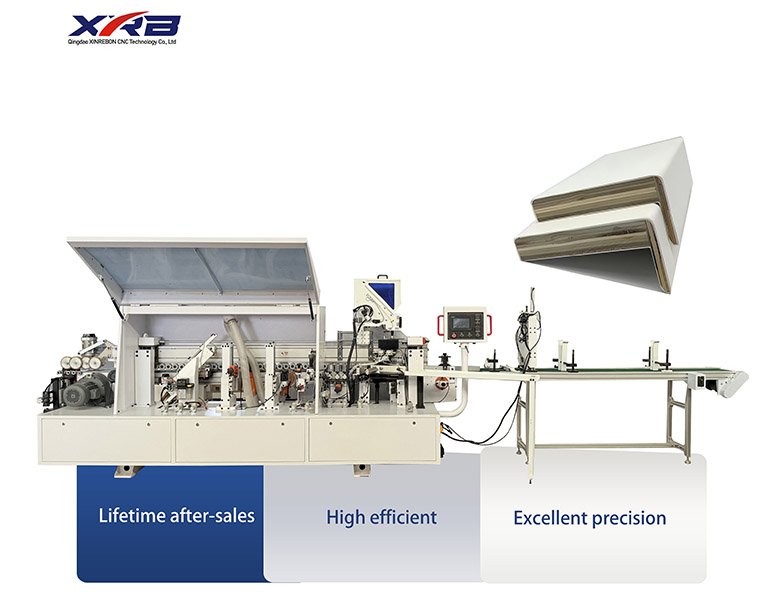

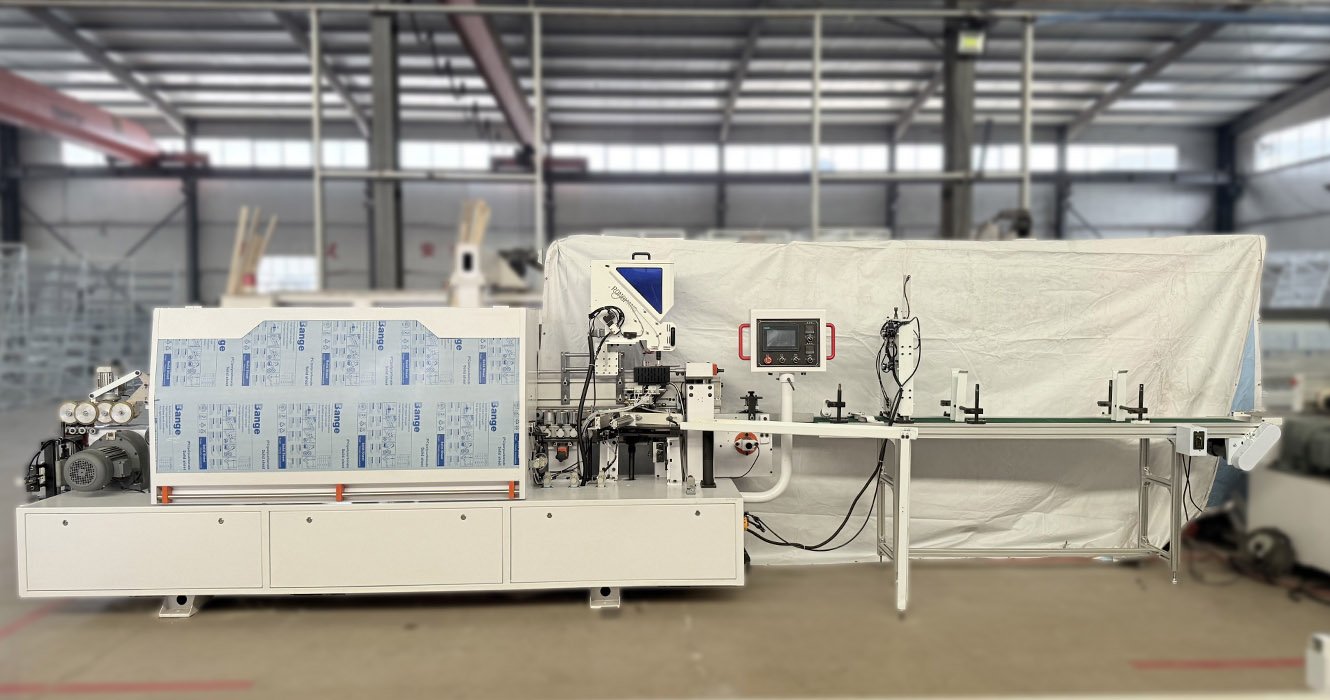

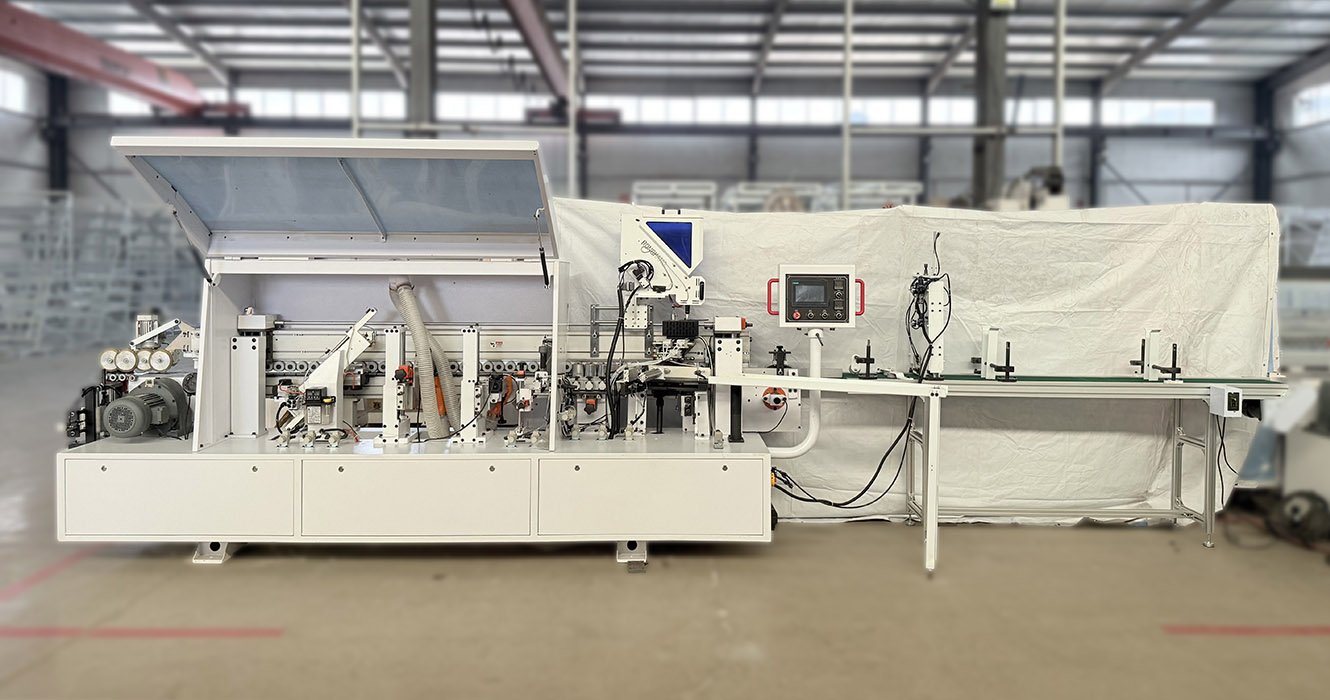

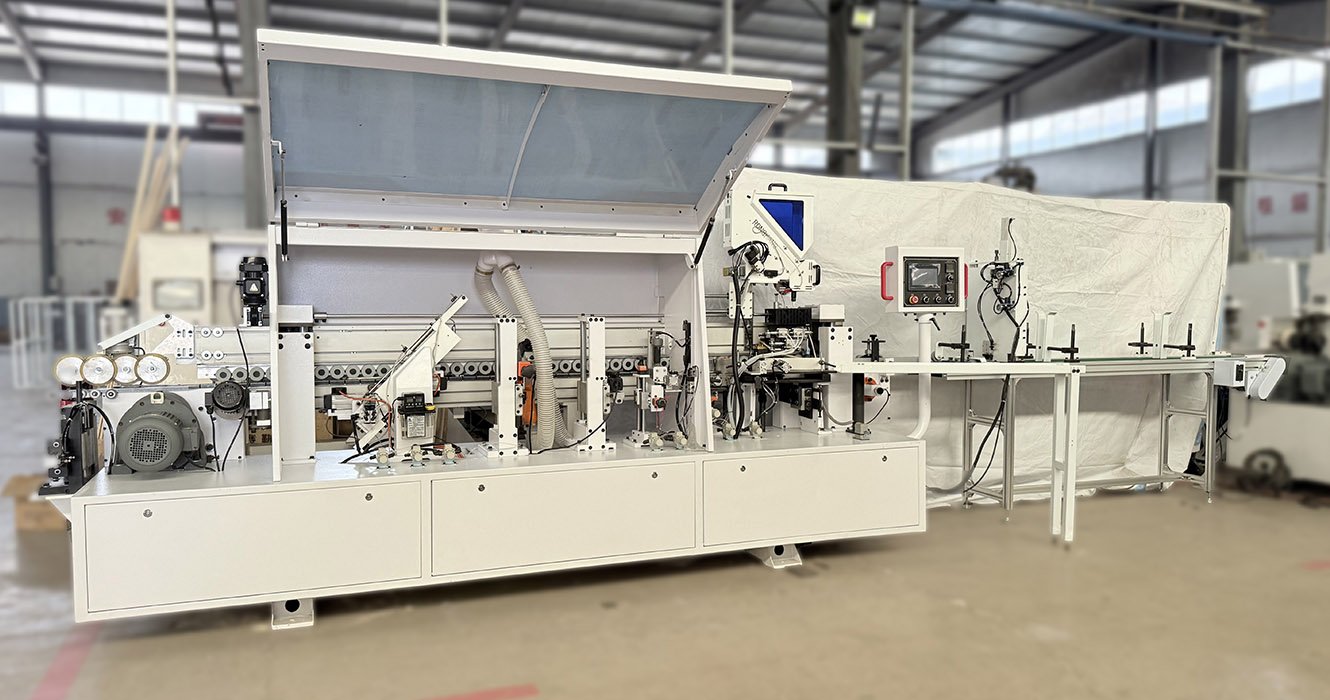

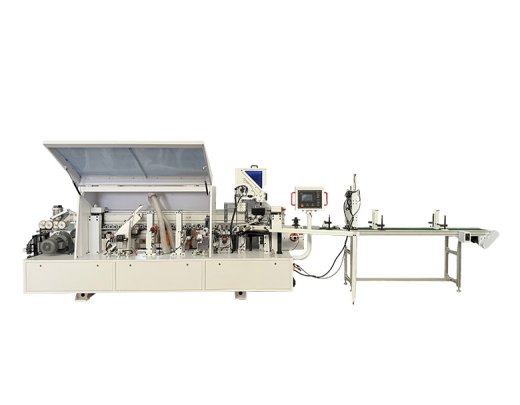

- Door frame edge banding machine
1. The body is made of 16mm national standard high strength steel plate table, exclusive welding process frame type body structure, by high temperature quenching treatment durable and not easy to deformation, heavy gantry milling machine center milling surface, the pursuit of excellence!
2. The conveyor belt guide is made of HT260 type material, high straightness, low friction coefficient and stable conveying uniformity!
3. This is a professional machine, mainly used to make Wooden Door Frame. Ordinary machines use a single fixing method, such as only gluing or nailing. Our machine uses a double-layer fixing method of gluing + nailing, which is more solid. The edge is milled with a U-shaped tool, which is smoother when laminating. The machine can support customization.
Inquire now
+Add to cart
+Product Details
Reviews
Inquiry
Products Recommended
Product Details
| Plate length | ≥120mm |
| Plate thickness | 10-50mm |
| Plate width | 50-80mm |
| Edge band width | 20-60mm |
| Edge band thickness | 2-10mm |
| Workpiece conveying speed | 10-20m/min |
| Air pressure | 0.6MPa-0.8Mpa |
| 8Total power | 8.7kw |
| Overall dimension | 6000*900*1650mm |
| Weight | 1500kg |
| Nail gun | Pin Nail |
-
Feeding device
-
EVA fast pre-dissolving device
-

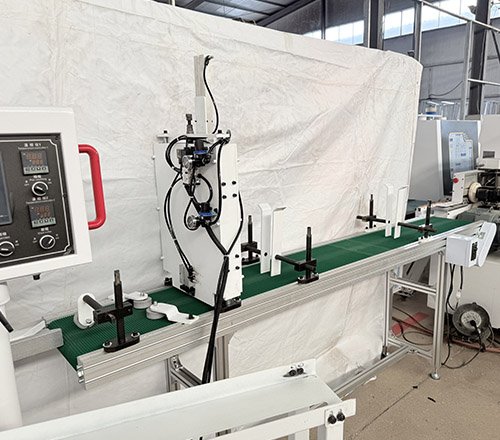

Automatic nail gun
-
Upper trimming device
-
Lower trimming device
-
End cutting
-

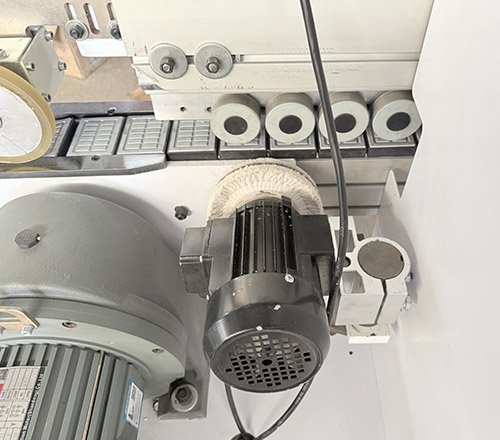

Polishing device
-
Corner rounding device

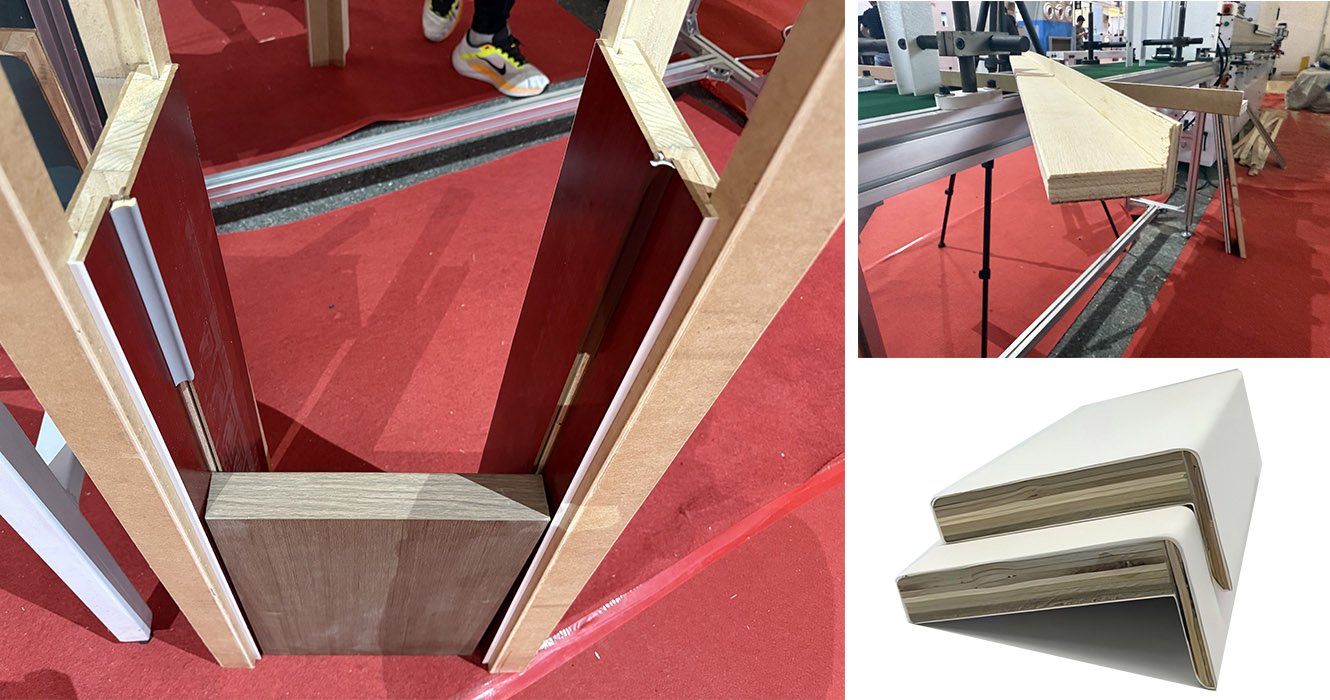

| Product Effects | |
 |
