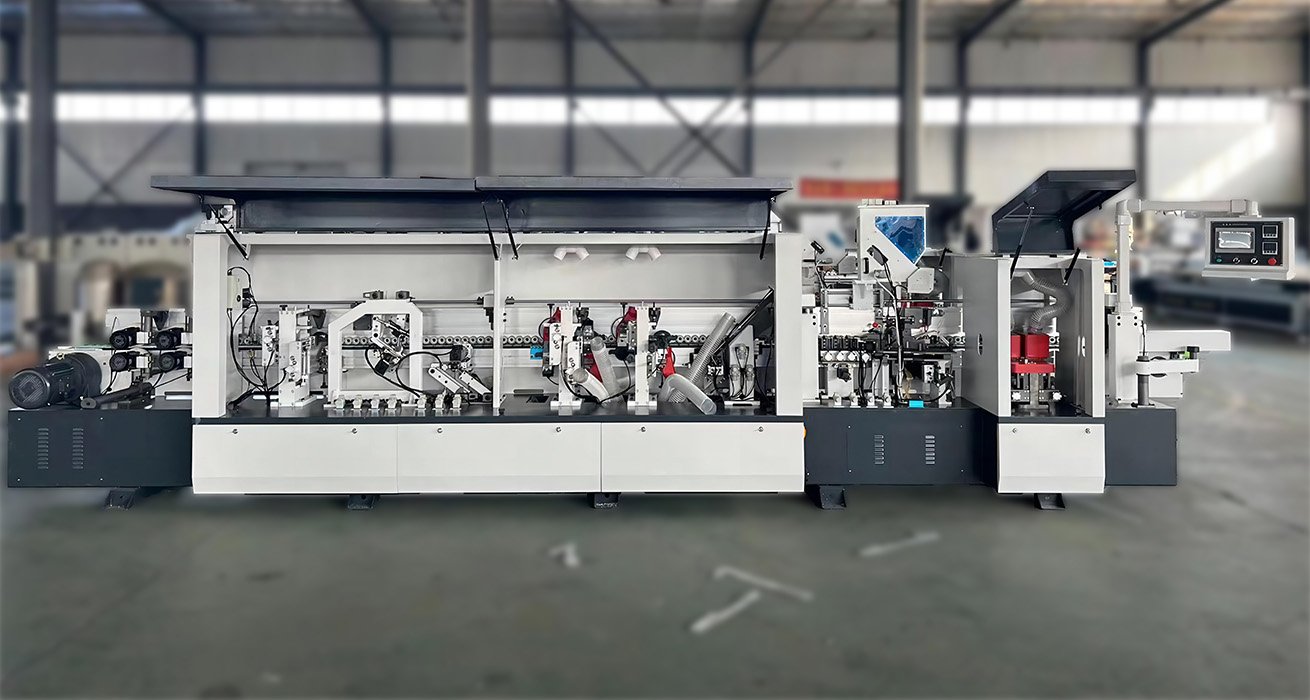

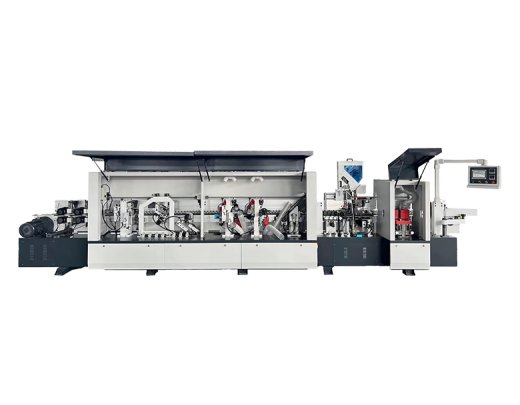

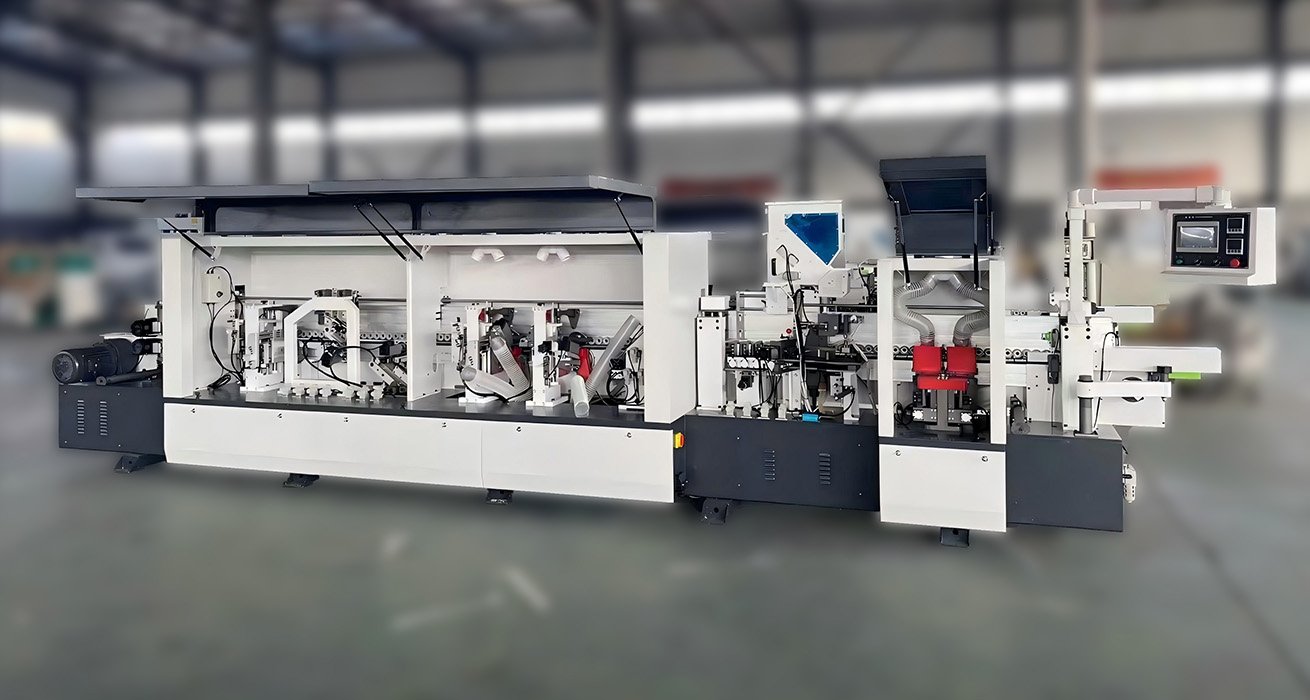

- DR808' Edge Banding Machine
RD807 model automatic edge banding machine with 7 core functions to achieve a comprehensive upgrade of the edge banding process, help furniture production and manufacturing, using EVA Teflon glue pot, 4 rounds of pressure paste, with pressure wheel scraping function, the end of the cutting maximum processing height of 55mm, tAdopt rough trimming+fine trimming mode, the effect is better, with the de-glueing agent spray device, the upper and lower double polished, the machine adopts the encoder control, precision is more accurate, the use of big Delta brand touch screen, Delta PLC, the machine adopts aluminum pressure beam is more durable.
Inquire now
+Add to cart
+Product Details
Reviews
Inquiry
Products Recommended
Product Details
| Model: | DR808 |
| Total power: | 25kw |
| Plate thickness: | 10-55mm |
| Conveying speed： | 12-20m/min |
| Panel thickness: | 10-55mm |
| Edge thickness: | 0.3-3mm |
| Width of sheet: | ≥80mm |
| Size: | 6800*950*1700mm |

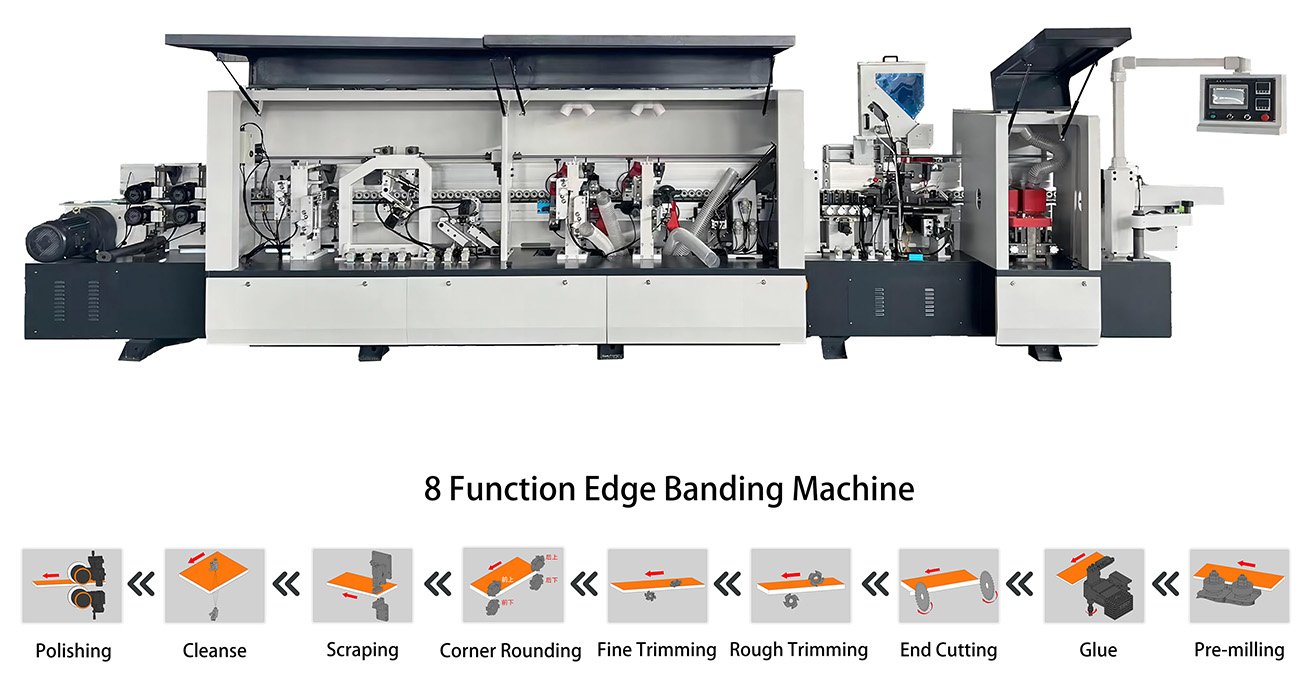

| Function |
| Function 1: Pre-milling Function 2: Gluing Function 3: End Cutting Function 4: Rough trimming Function 5: Fine trimming Function 6: Corner rounding Function 7: Scraping Function 8: Two Polishing |
-

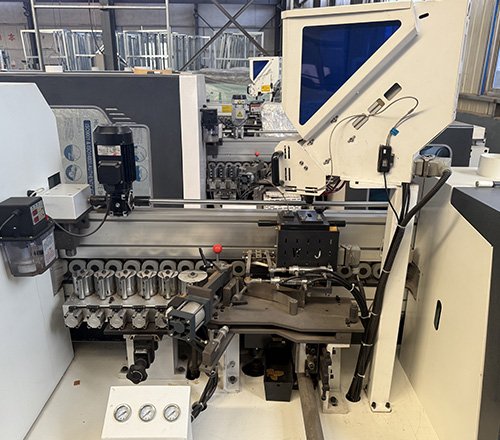

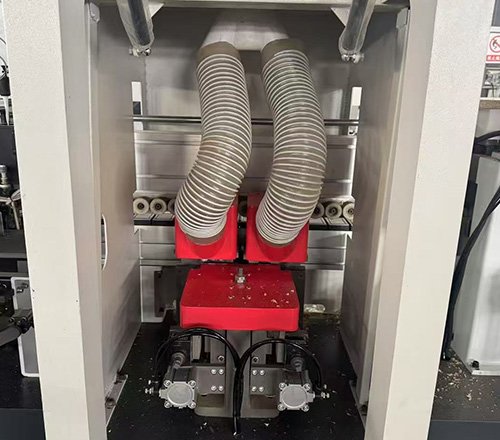

Pre-milling
-
Quick pre-melt top glue pot
-

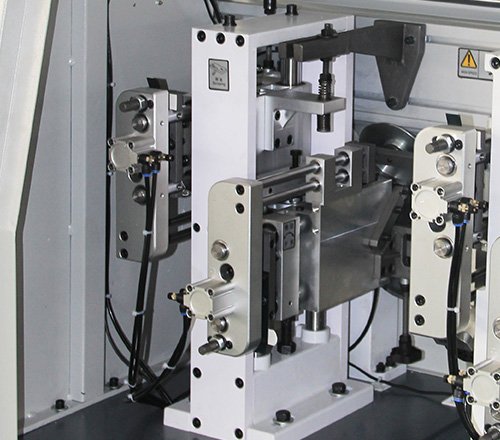

End cutting
-

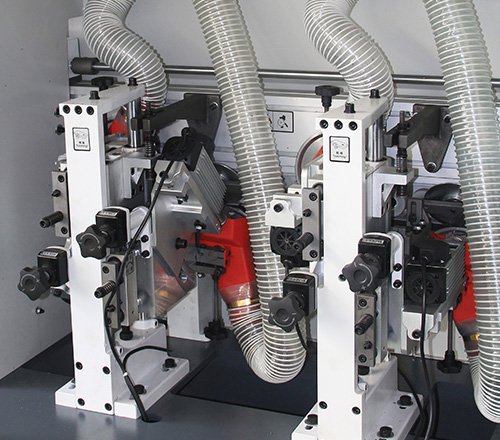

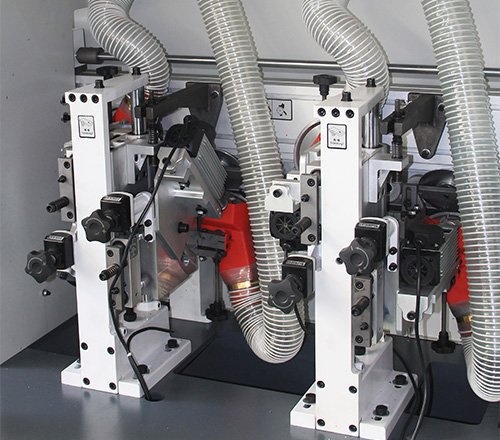

Rough trimming
-
Fine trimming
-

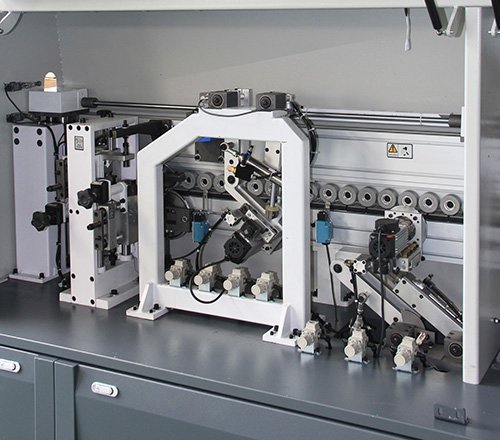

Corner Rounding
-

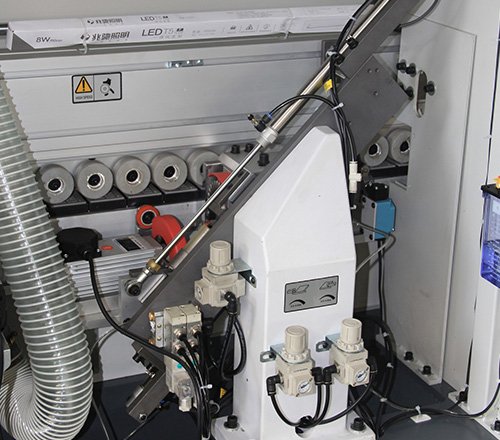

Scraping
-

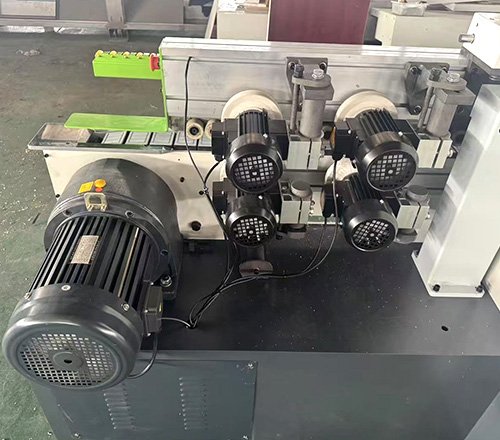

Two Polishing
| Effect Display | |
 |  |
Freouent Asked Ouestion |
What is the size of the edge banding machine? |
What is the voltage? |
Can the machine be customized? The appearance and color of the machine can be customized according to customer's requirements. |
