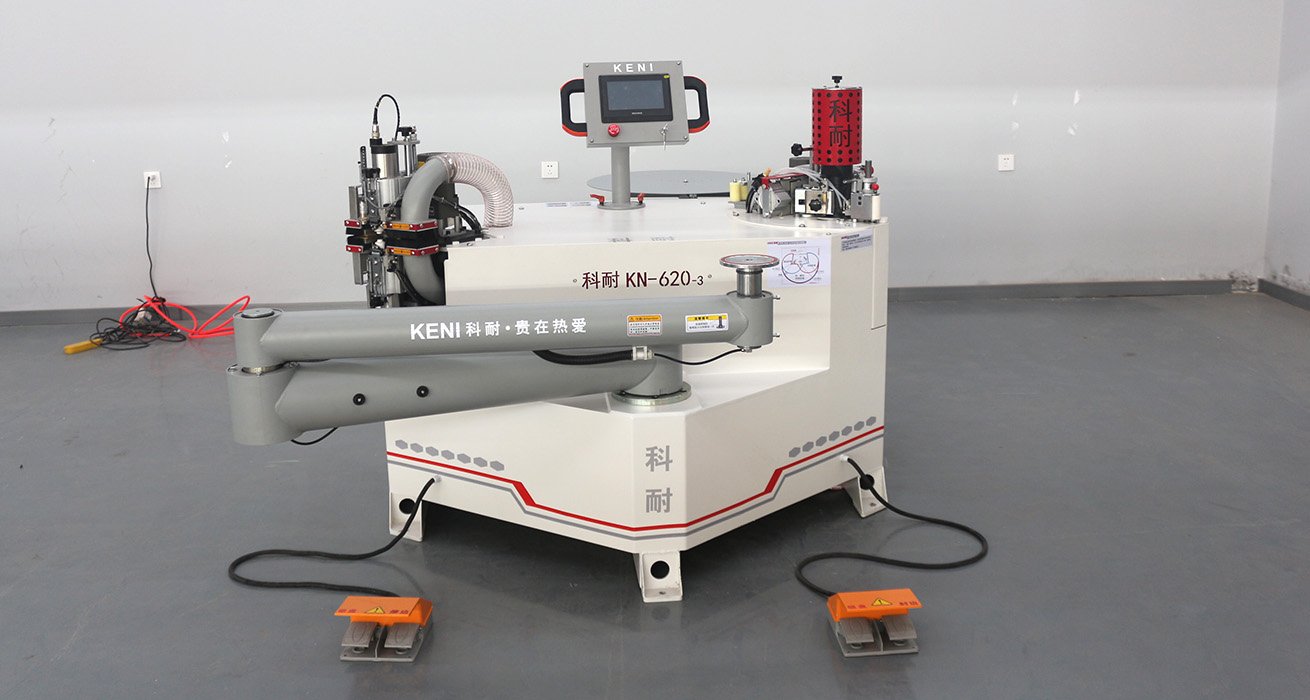

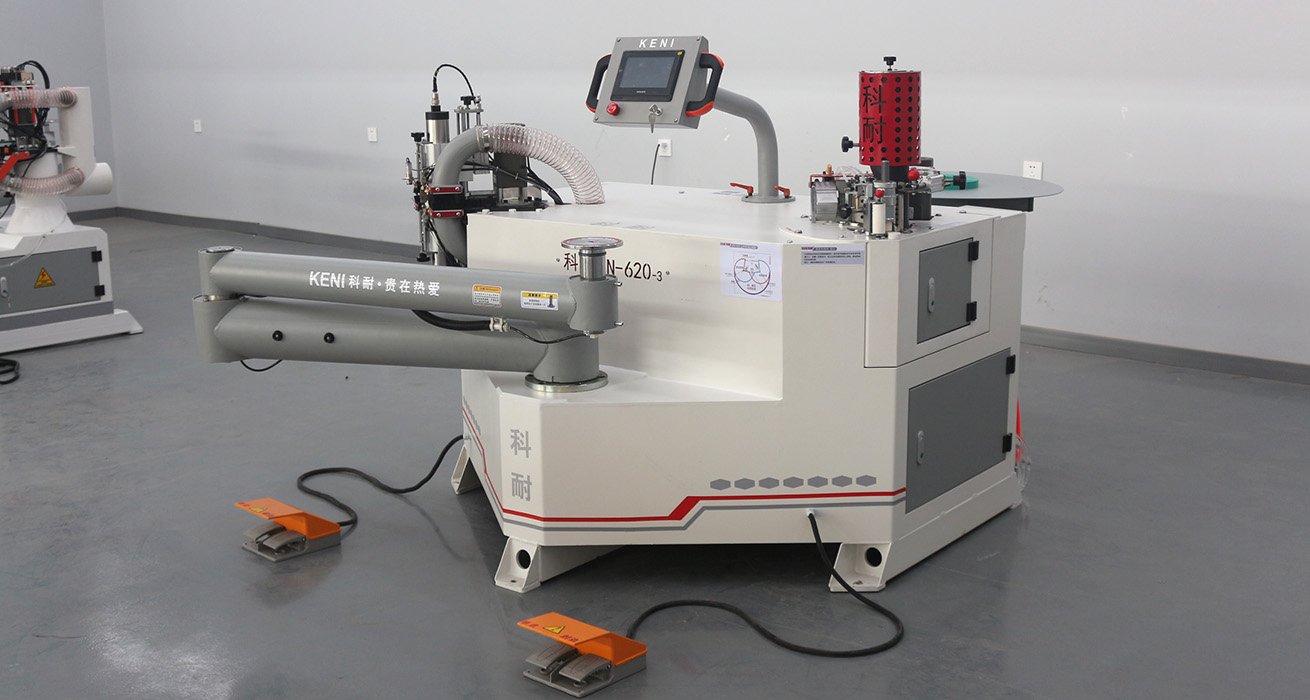

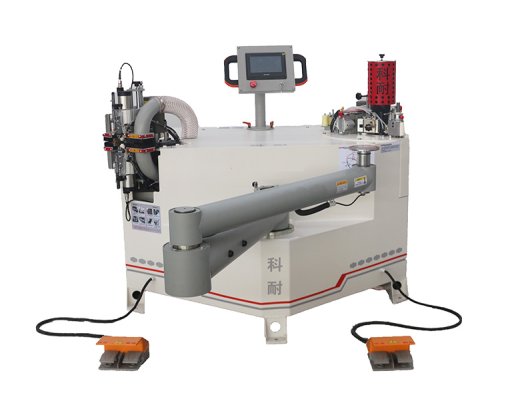

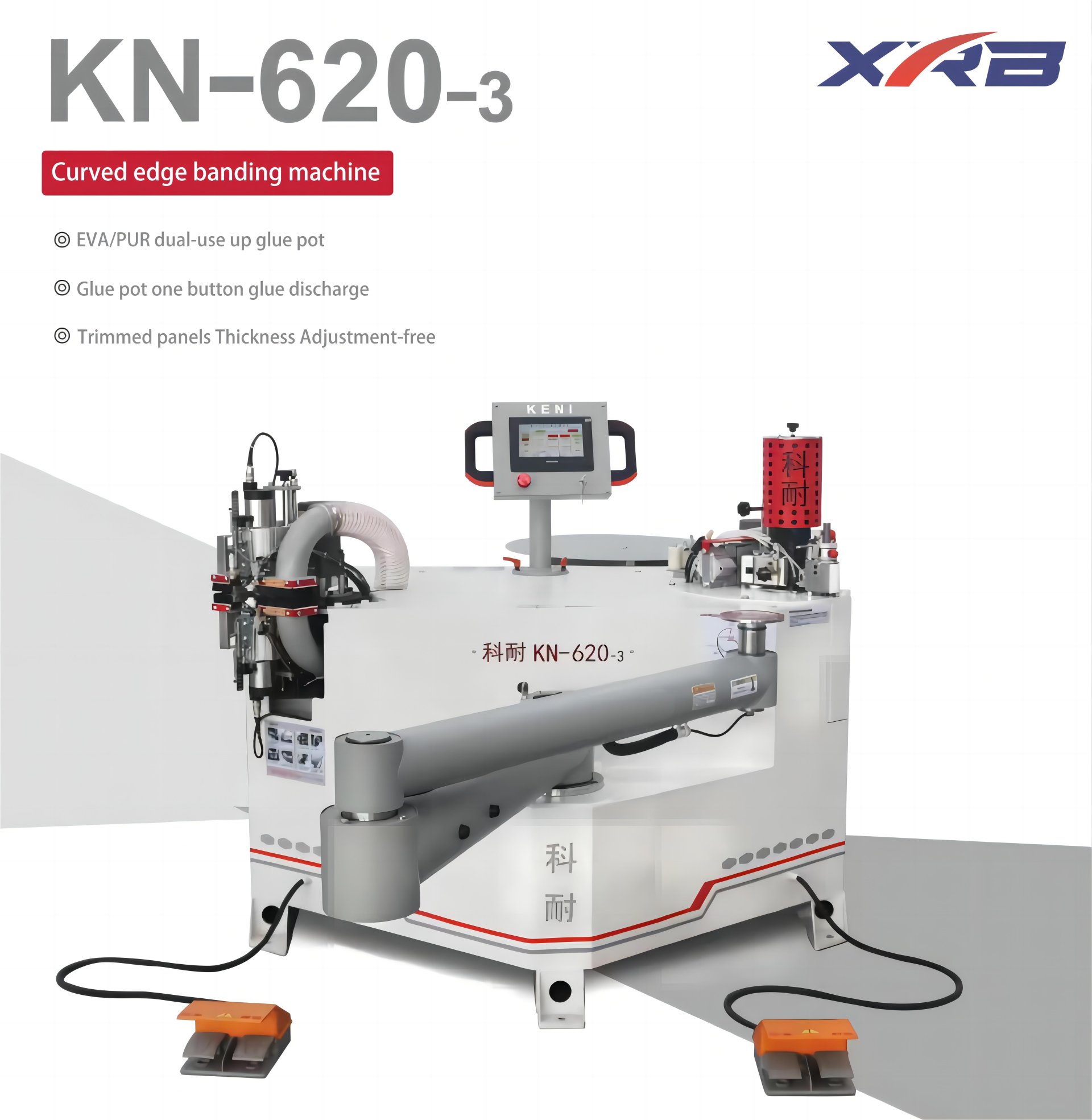

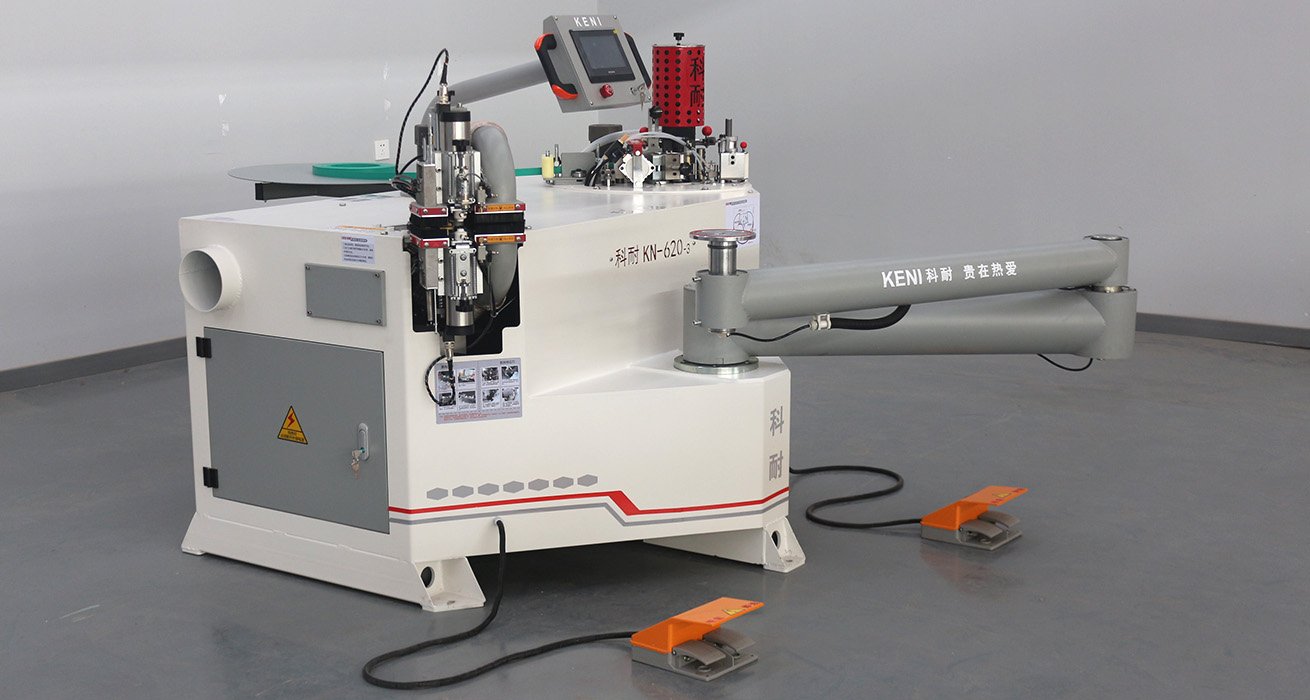

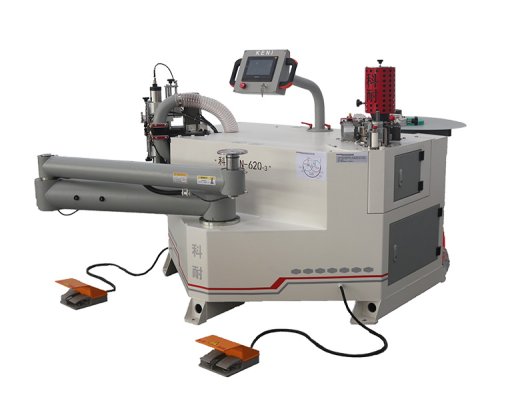

Curve Edge Banding Machine

- Curve Edge Banding Machine

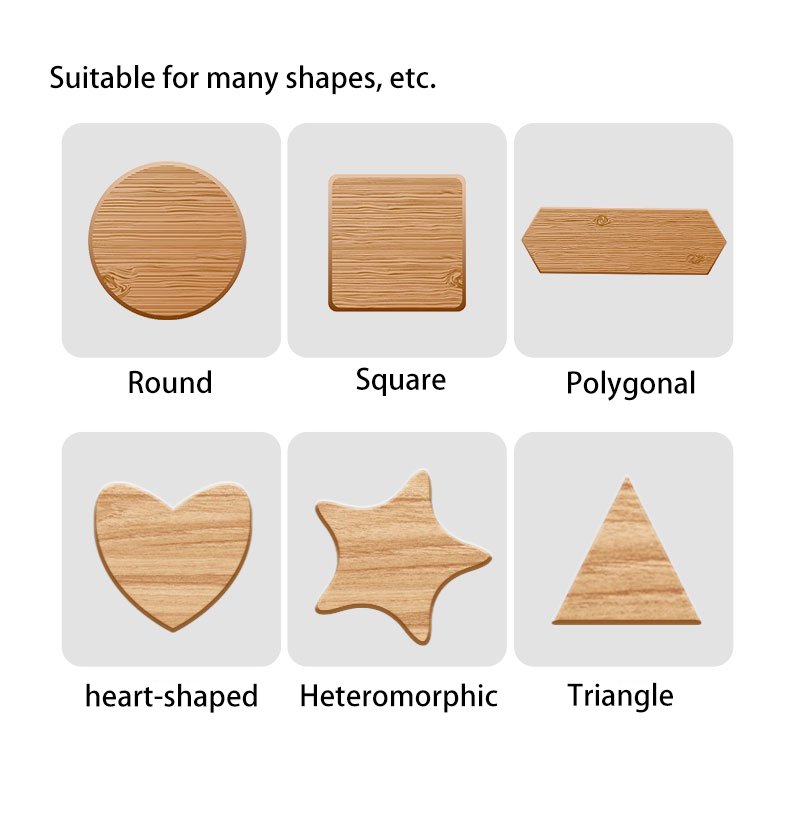

Edge banding head can rotate 15°，suitable for irregular shape board.

Glue pot can use PUR & EVA glue, inner coated teflon layer, discharge glue by one click.

The edge banding speed is 0-24 cm/s, speed can be adjusted according to proficiency.

Double-sided trimming, convenient, fast and easy to operate.

The touch screen can store 20 types of plate data, which is convenient and fast, saving time.

The trimming part requires no adjustment and can be automatically adjusted according to the weight of the board.

Edge banding function and trimming function on one machine.

There are 4 glue removal devices to make the edge banding effect neat and more beautiful.

Inquire now

Add to cart

Product Details

Reviews

Inquiry

Products Recommended

Product Details

Model	620-3
Total power	5.7KW
Air pressure	0.6-0.8Mpa
Glue pot capacity	260OML
Temperature of glue pot	110-220degree
Head rotation angle	15°
Width of edge banding	14-70mm
Thickness of edge banding	0.5-3mm(Related to the edge banding material)
edge banding speed	0-20cm/s
Trimming speed	0-24cm/s
Weight	480KG
Voltages	380V/Three-phase four-wire (3 fire+1 zero wire)/50HZ /Custom

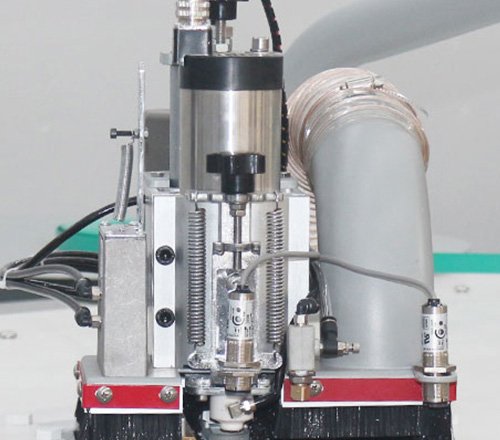

Trim start/stop device

The photoelectric device automatically senses the plate, and if the plate is not sensed within 5 seconds, the rotation will stop.

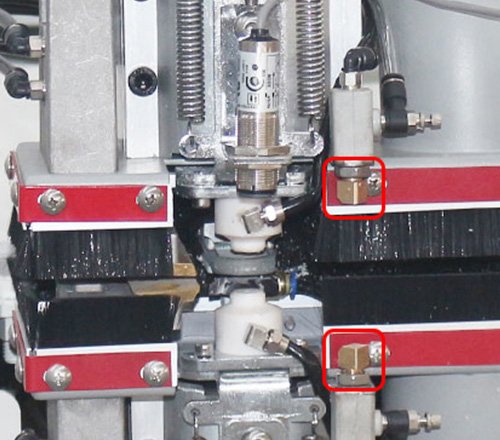

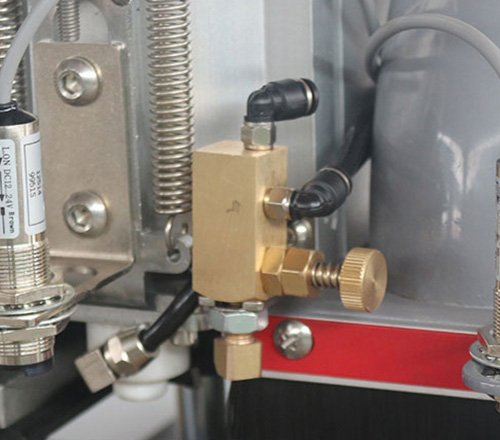

Automatic spray glue remover

Avoid glue at the laminating wheel and the pressure plate
2nd generation cutter assembly

Guarantee the vertical accuracy of cutting, good flatness effect

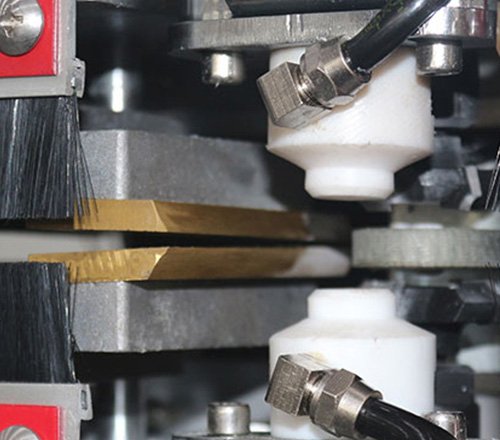

Upper and lower trimming

Trimming knife rotation, the top and bottom of the excess sealing strip once to repair off

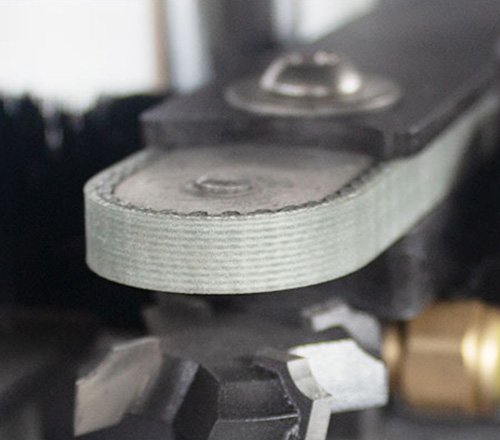

Profiling Wheel

Drive the sheet metal to rotate according to the speed of the profiling wheel
Trimming thickness does not need to be adjusted

Quickly applicable to different sheet thickness (14-70mm), less than 14mm,custom Profiling splint, please consult Jasper for details
