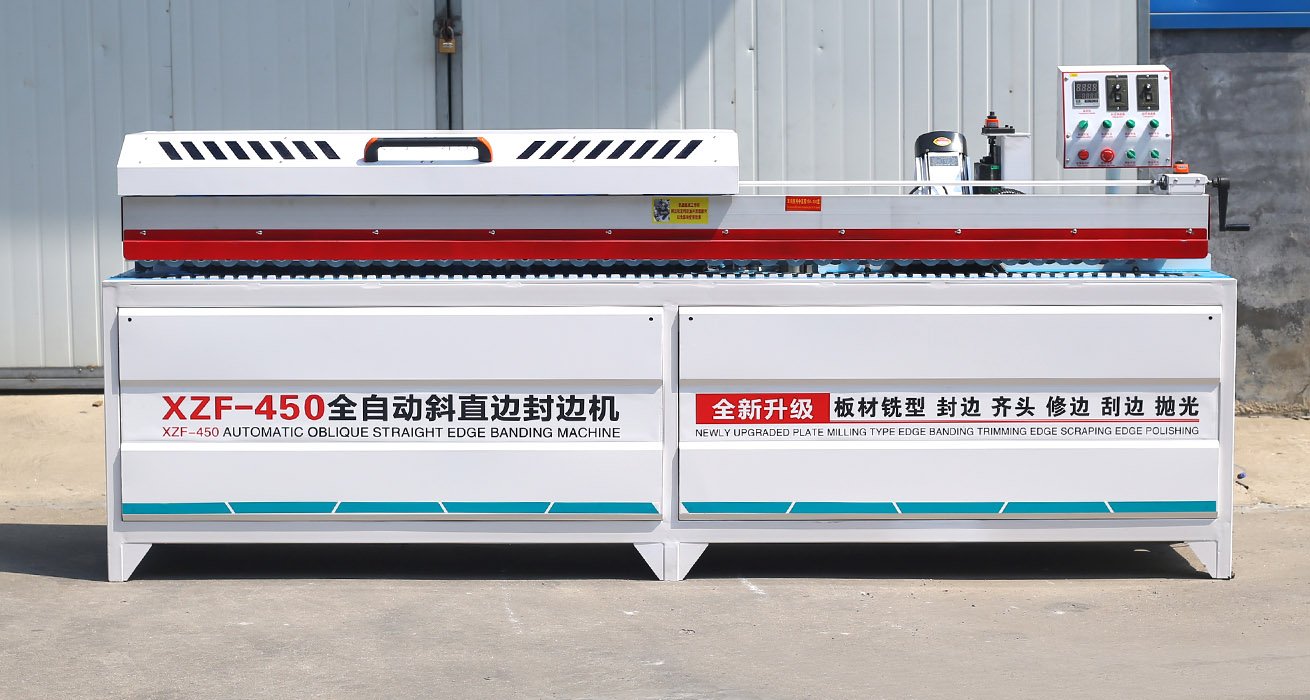

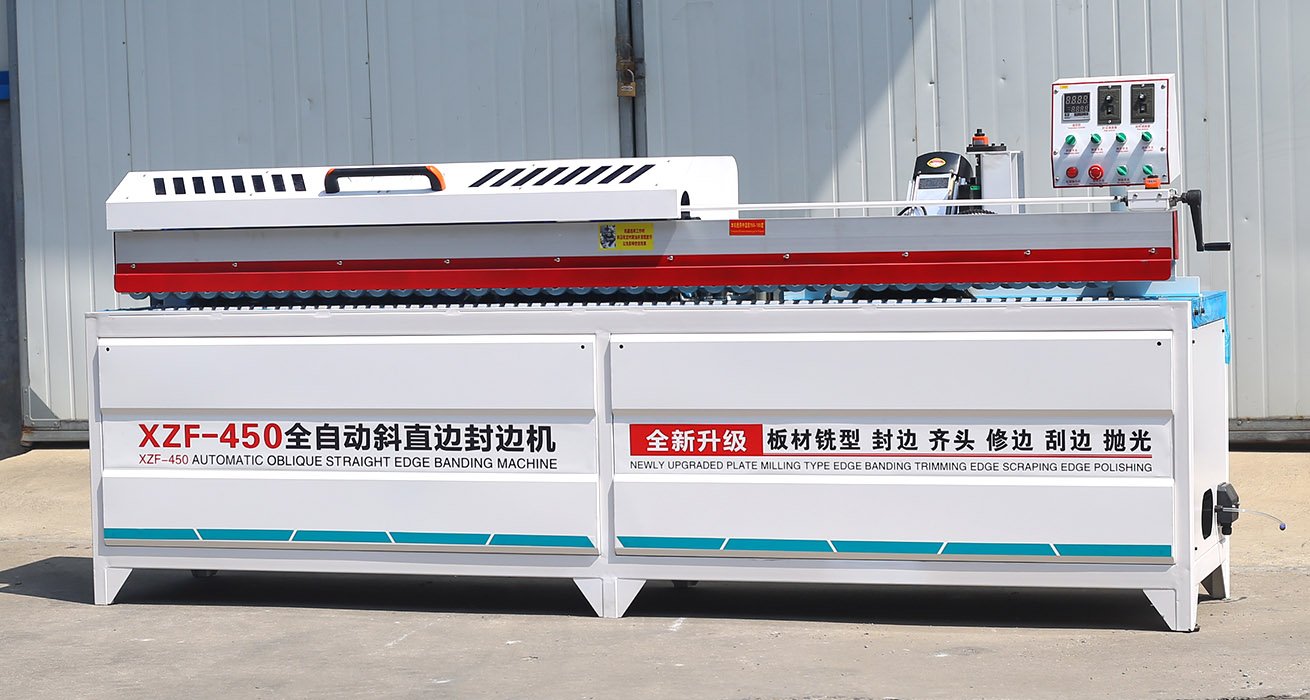

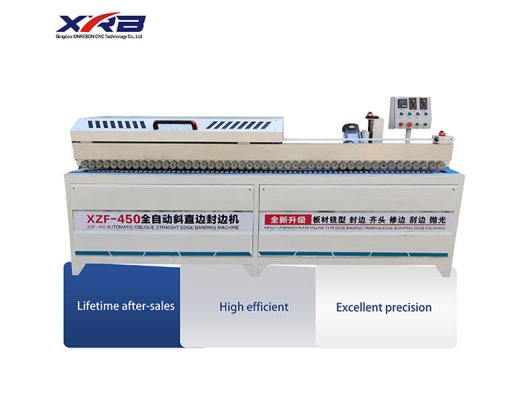

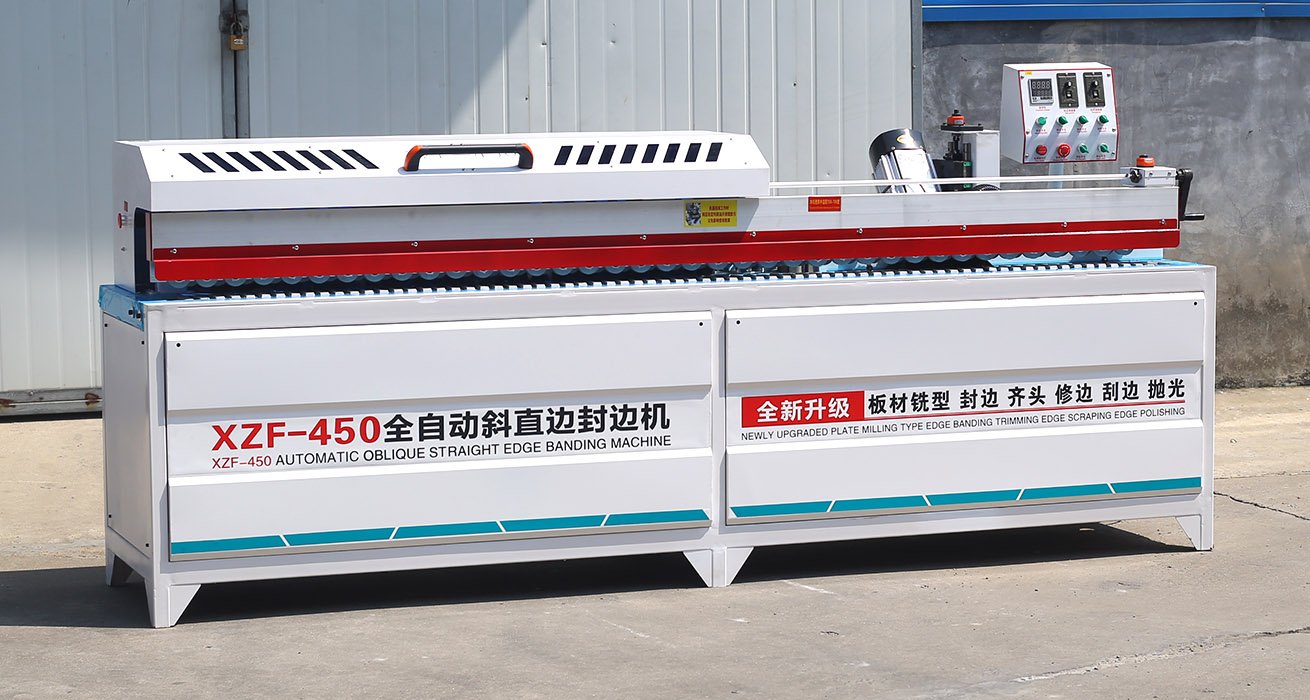

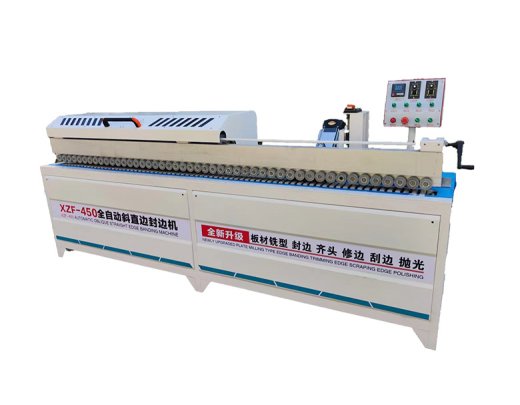

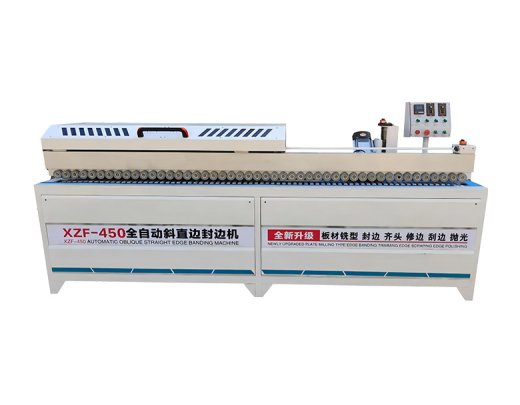

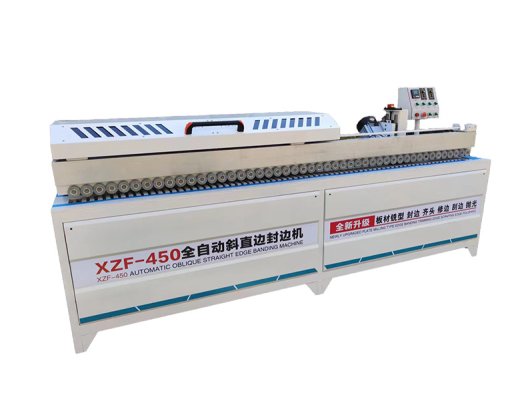

- 450' Edge Banding Machine
The Straight Bevel Edge banding machine with Large-scale gluing bearing, edge band slotting device, slotting height can be adjusted, edge banding is more compliant, double cylinder feeding belt is more stable and not shaking, double heat gun design, heating edge banding is more obedient, 8 groups The angle of the oblique pressure wheel can be adjusted arbitrarily from 30 to 90. The 800W silent trimming motor, the industrial-grade polishing motor and the vacuuming motor are polished smoothly and cleanly. The DW3000 trimming motor is replaced with a spindle trimming motor, with a total of 3 spindle motors. With a flexible edge scraper to clean the glue line, the finish is better.
Inquire now
+Add to cart
+Product Details
Reviews
Inquiry
Products Recommended
Product Details
The Straight Bevel Edge banding machine with Large-scale gluing bearing, edge band slotting device, slotting height can be adjusted, edge banding is more compliant, double cylinder feeding belt is more stable and not shaking, double heat gun design, heating edge banding is more obedient, 8 groups The angle of the oblique pressure wheel can be adjusted arbitrarily from 30 to 90. The 800W silent trimming motor, the industrial-grade polishing motor and the vacuuming motor are polished smoothly and cleanly. The DW3000 trimming motor is replaced with a spindle trimming motor, with a total of 3 spindle motors. With a flexible edge scraper to clean the glue line, the finish is better
| DIAGONAL EDGE BANDING MACHINE | |
| Supply voltage：Three-phase four-wire 380V 50HZ | Total power：9.5KW |
| Air source pressure：0.5-0.7Mpa | Heating power：2000W |
| Pre-milling motor：380V 4000W | Trimming motor：380V 2200W(2个) |
| Equipment weight：430KG | Polishing motor：380V 400W(2个) |
| Plate thickness：4000ml | Bevel angle：30°-90° |
| Plate thickness：5CM | Edge banding speed：0-12m/min |
| Device size：3000*650*1350mm | |
| Machine features: The machine can be switched between straight and oblique at 30/45/60 degrees, edge banding, trimming, polishing, large automatic pressure beam, more stable and firm, no edge collapse, 2 sets of oblique pressure wheels, automatic head and tail alignment, pre-milling motor, the degree can be adjusted front, back, up and down, and the dust collection effect is very good. | |
-

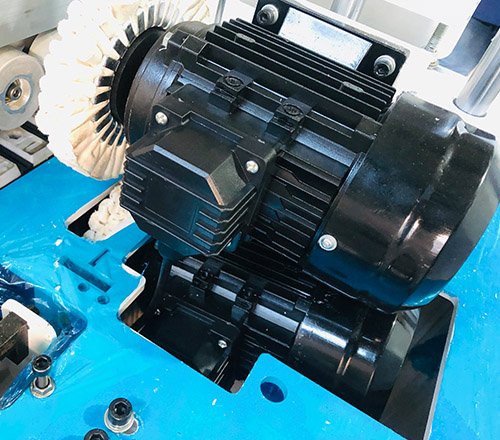

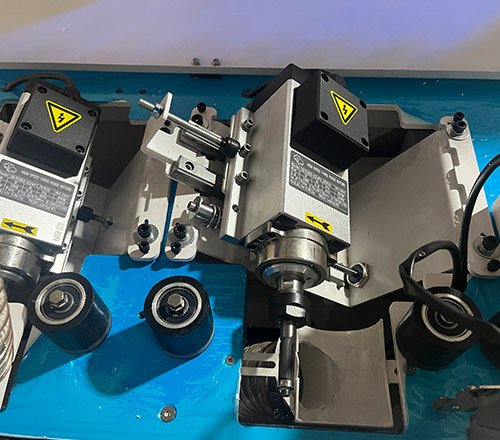

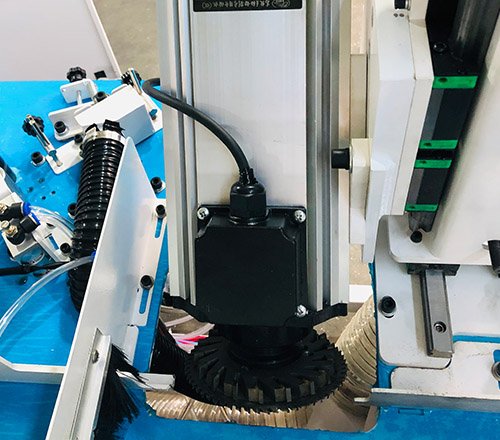

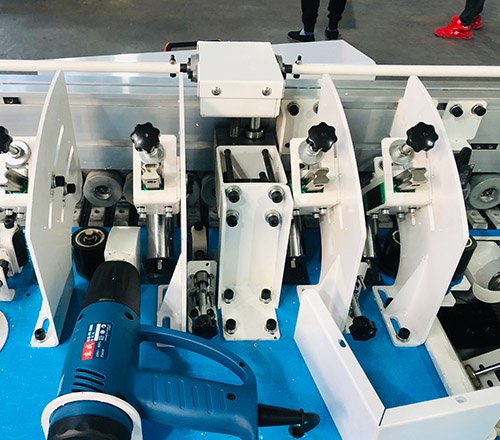

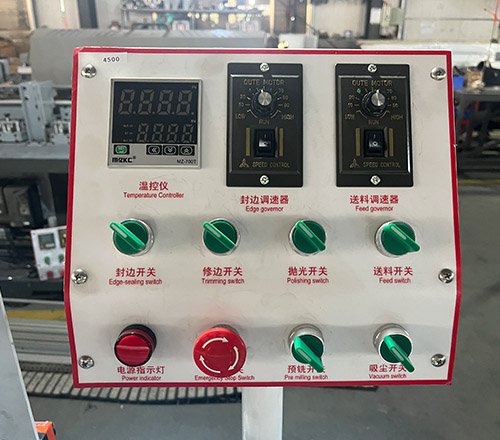

Details
-
Details
-
Details
-
Details
-
Details

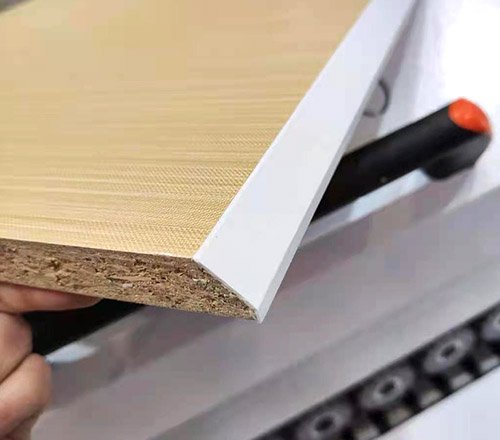

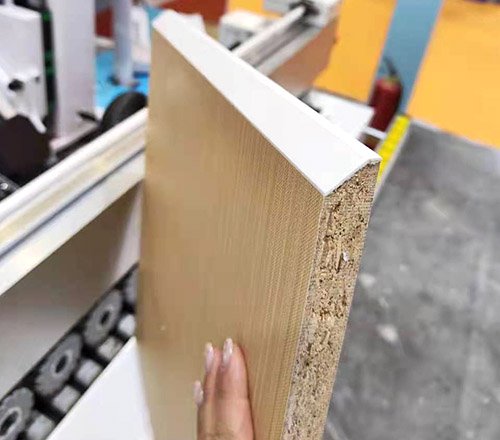

| Effect Display | |
 |  |
Freouent Asked Ouestion |
What is the size of the edge banding machine? |
What is the voltage? |
Can the machine be customized? The appearance and color of the machine can be customized according to customer's requirements. |
