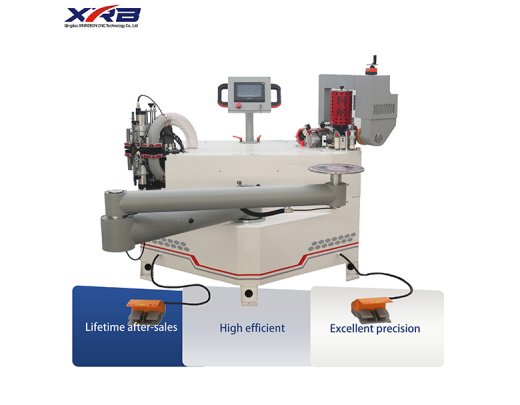

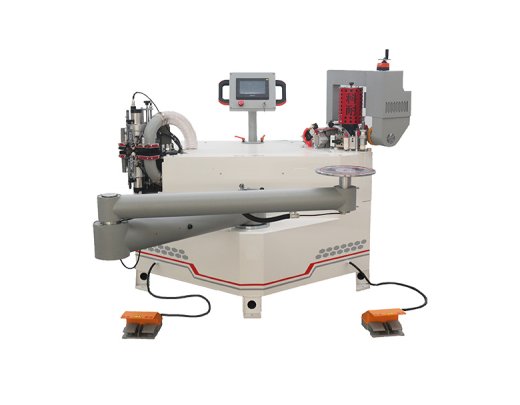

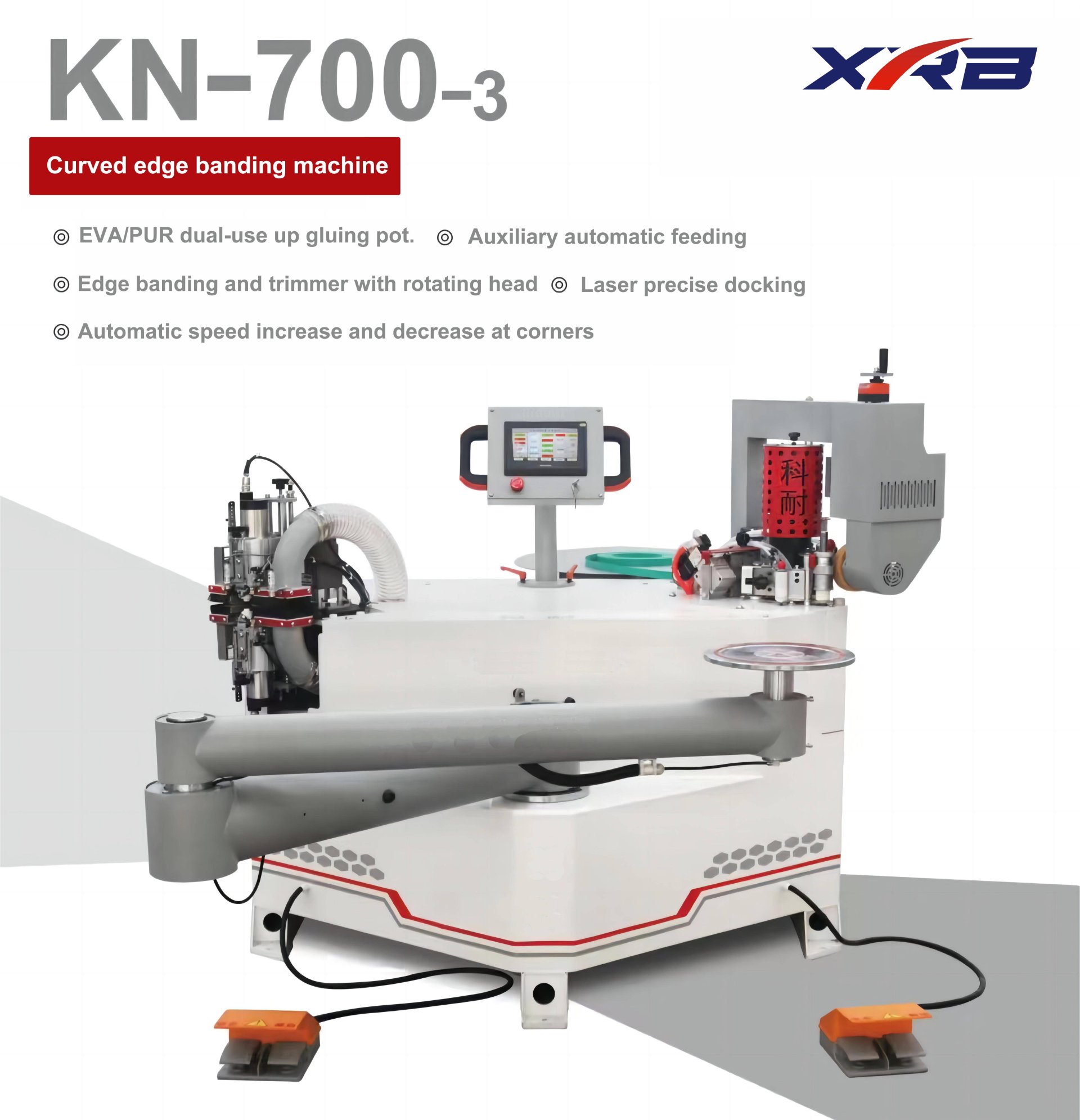

- Curve Edge Banding Machine
Automatically feeding for curve board, Especially for round, oval, rounded rectangle.
Laser ranging, precise docking (docking error ±0.3mm), high accuracy, no need the cut strip manual.
PUR and EVA, discharge glue by one click.
Servo motor, which has fast action response and low noise. The machine has good stability.
Feeding speed is 0-30cm/s, high work efficiency.
The machine has 4 cleaning devices, which automatically spray cleaning liquid. Adjustable spray time and intermittent time.
Inquire now
+Add to cart
+Product Details
Reviews
Inquiry
Products Recommended
Product Details
The capacity of the glue pot is increased to 2600ml, and there is no need to add glue frequently. Heat preservation function of the glue pot reduces the waiting time for heating by one-click.
The touch screen can store 20 kinds of sheet data, which is convenient to use sheet data and greatly improves work efficiency.
Adopts 2L pressure-retaining air storage tank, when the external air pressure is unstable, it can ensure the normal operation of all pneumatic components of the whole machine.
1 heating devices make the bonding between strips and the board more firmly.
| Model | 700-3 |
| Total power | 6.5KW |
| Air pressure | 0.6-0.8Mpa |
| Glue pot capacity | 2600ML |
| Temperature of glue pot | 110-210degree |
| Head rotation angle | 15° |
| Width of edge banding | 14-70mm |
| Thickness of edge banding | 0.5-3mm(Related to the edge banding material) |
| Edge banding speed | 0-30cm/s |
| Trimming speed | 0-24cm/s |
| Weight | 520KG |
| Voltages | 380V/Three-phase four-wire (3 fire+1 zero wire)/50HZ/Custom |
-

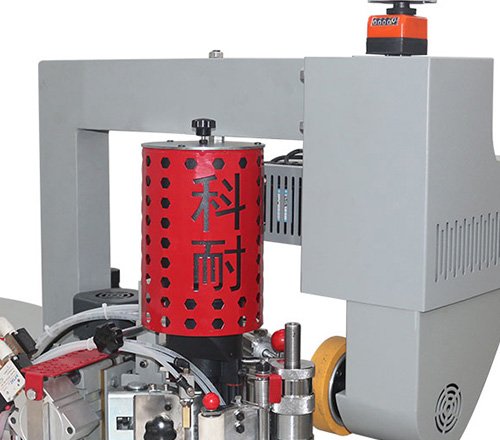

Up Gluing pot glue application assembly
Internal Teflon layerEVA/PUR dual-use up glue pot, can quickly dissolve glue out
-

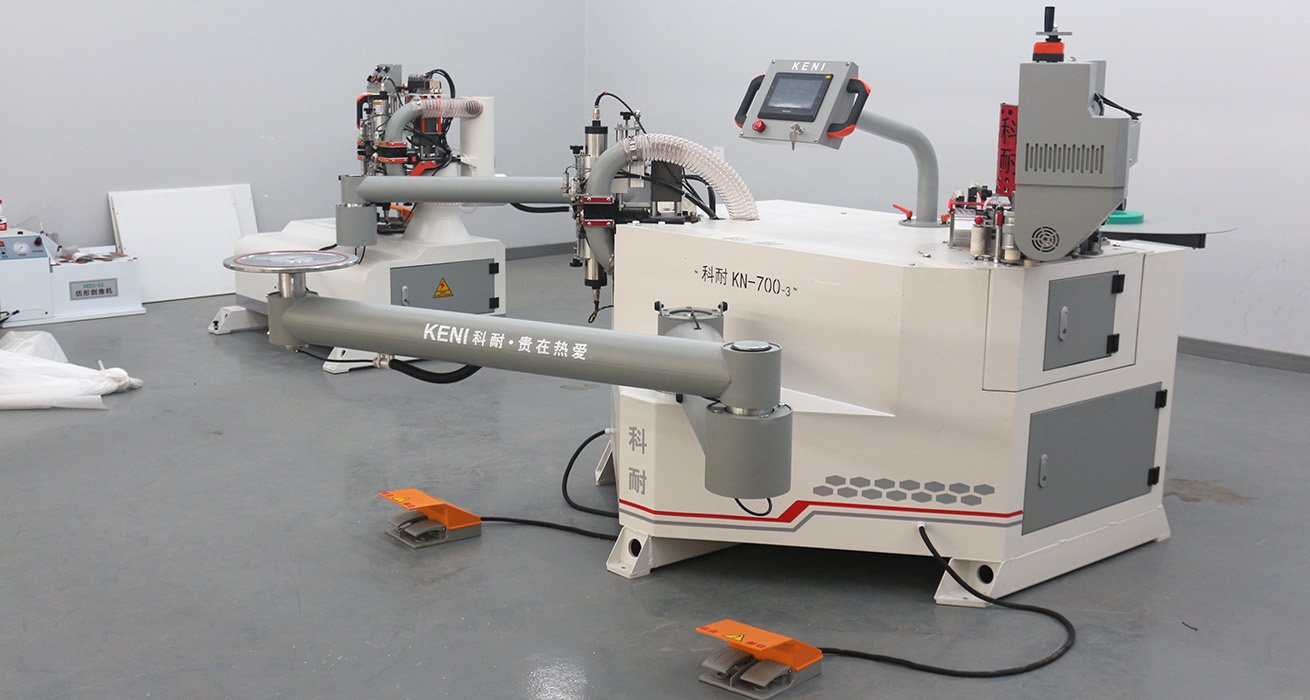

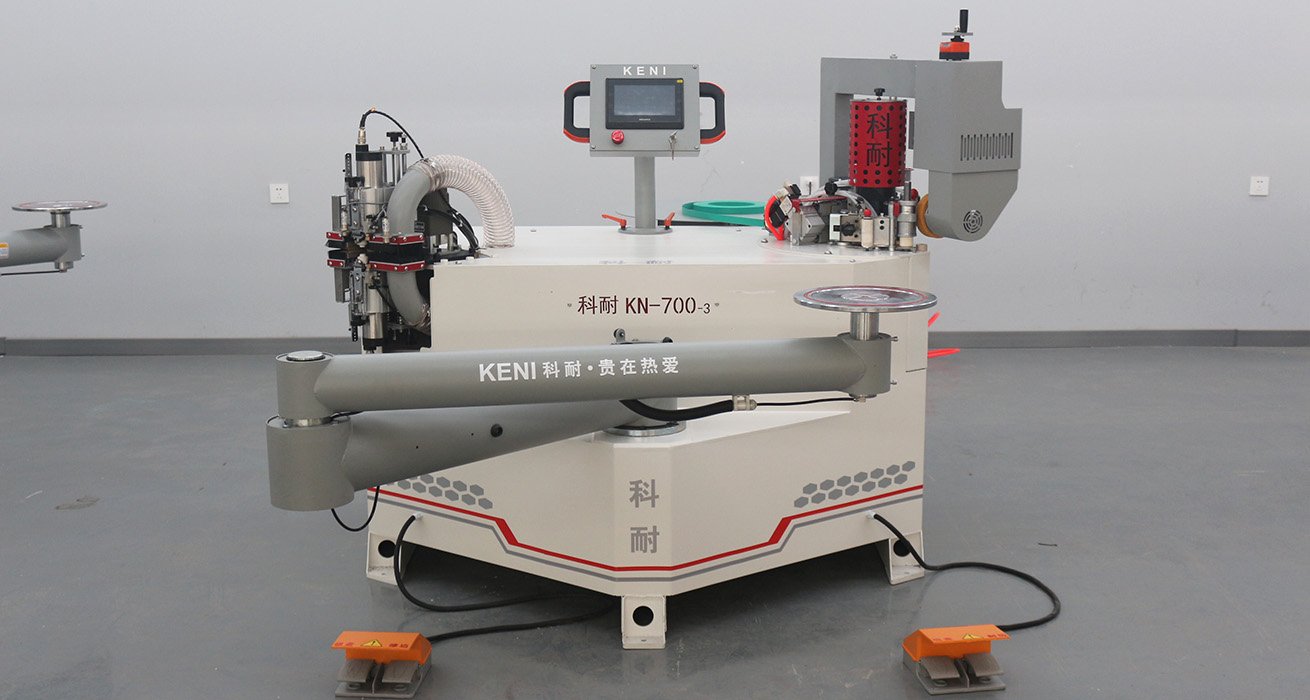

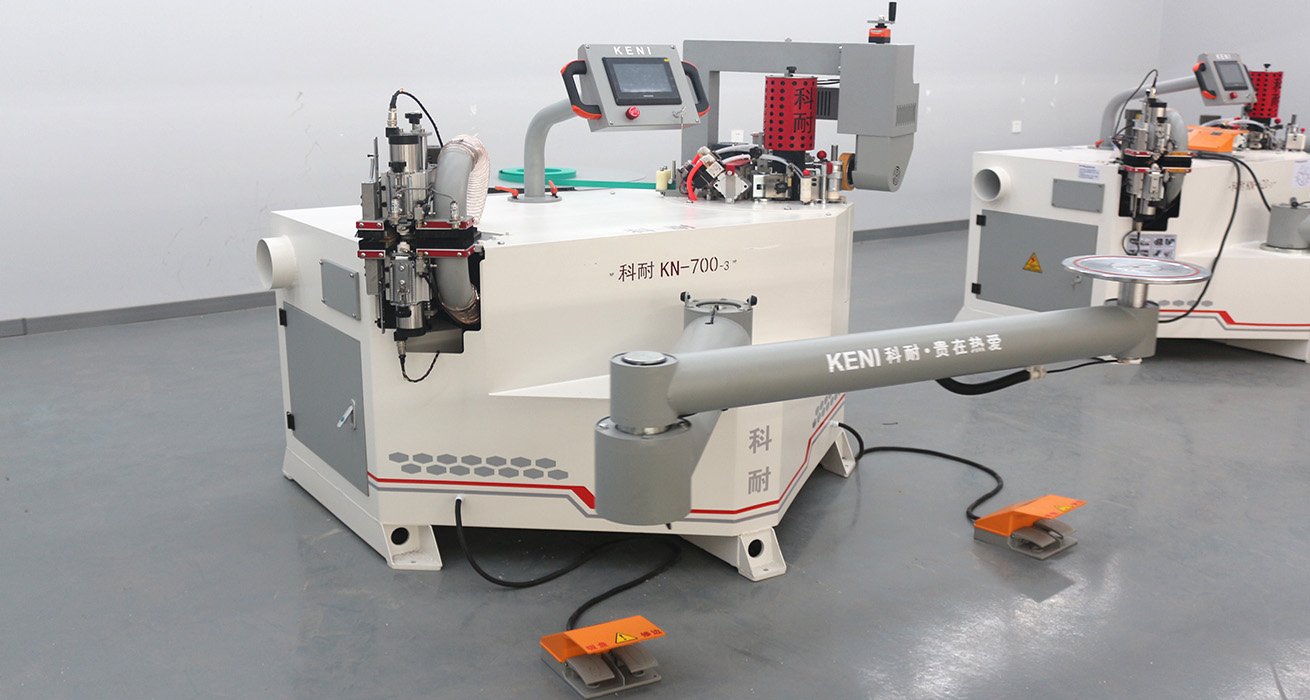

Auxiliary automatic feeding (KN-700-3)
Edge banding Auxiliary automatic feeding to free your handsSuitable for round, oval, rounded rectangle
-

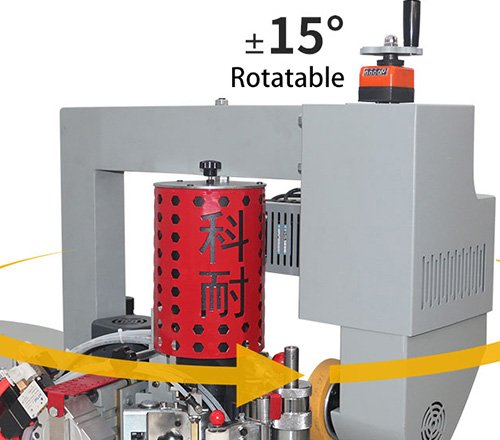

Edge banding part, rotation angle 15°
Factory position/15°/-15°Applicable to Multiple sheet shapes for improved compatibility
-
Trim start/stop device
The photoelectric device automatically senses the plate, and if the plate is not sensed within 5 seconds, the rotation will stop.
-
Automatic spray glue remover
Avoid glue at the laminating wheel and the pressure plate
-
2nd generation cutter assembly
Guarantee the vertical accuracy of cutting, good flatness effect
-
Upper and lower trimming
Trimming knife rotation, the top and bottom of the excess sealing strip once to repair off
-

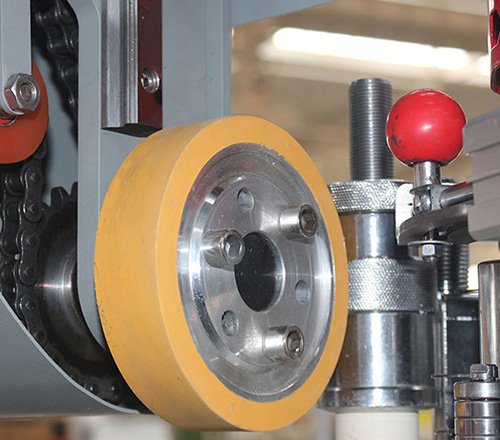

Profiling Wheel
Drive the sheet metal to rotate according to the speed of the profiling wheel
-
Trimming thickness does not need to be adjusted
Quickly applicable to different sheet thickness (14-70mm), less than 14mm,custom Profiling splint, please consult Jasper for details
| Processable Products | |
 |
Freouent Asked Ouestion |
What is the size of the edge banding machine? |
What is the voltage? |
Can the machine be customized? The appearance and color of the machine can be customized according to customer's requirements. |
