Product Details

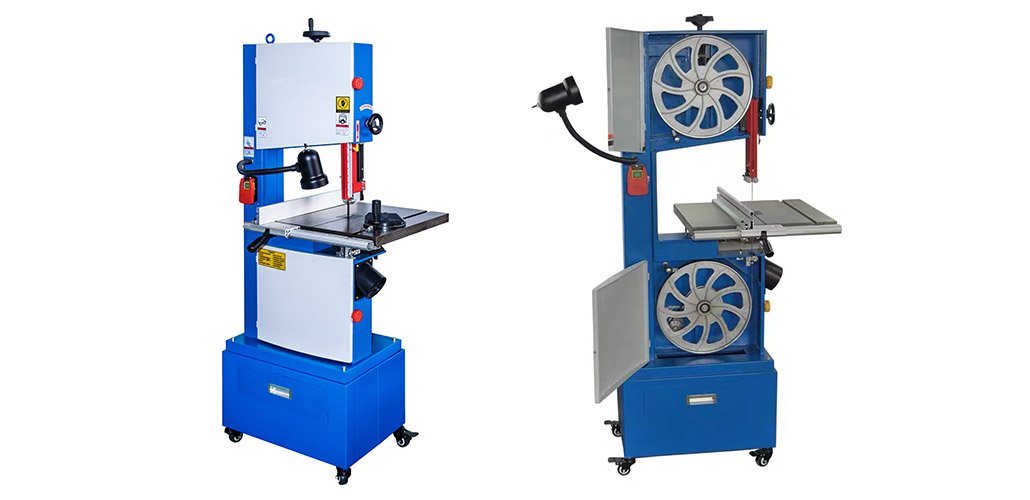

| MODEL | TB14 | ||
| Max.cutting thickness(mm) | 200 | Size of working table(mm) | 500*450*35 |
| Max.cutting throat(mm) | 340 | Titing angle of working table | -10-45° |
| Linear speed of saw blade(m/s) | 11/16 | V-belt model/quantity | SPJ-584/1 |
| Rotating speed of fly wheel (RPM) | 462/730 | Motor power(KW) | 0.75 |
| Size of fly wheel(mm) | 0350,width:27mm | Overall diamension(mm) | 650*440*1630 |
| Size ofthe saw blade(mm) | 2685*13 | Weight(KGS) | 120 |
-

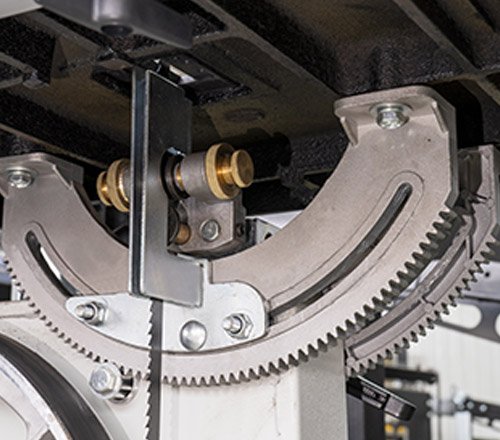

-10 to 45° working table tilting
-

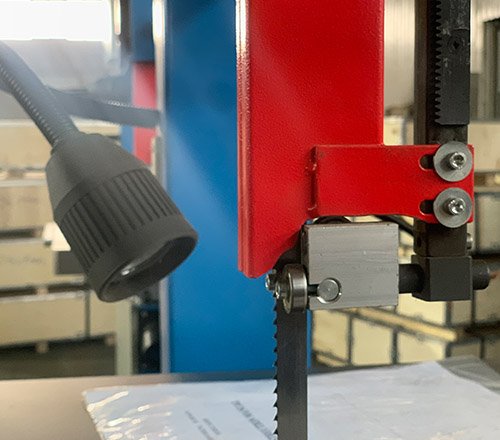

Optional for working light
-
Quici lock guiding system with magnifying glass
Freouent Asked Ouestion |
Are there any other options? 2. Optional work light for increased work brightness, 3. Optional flat belt for easy hanging of saw blades. |
Can the machine change the voltage? |
