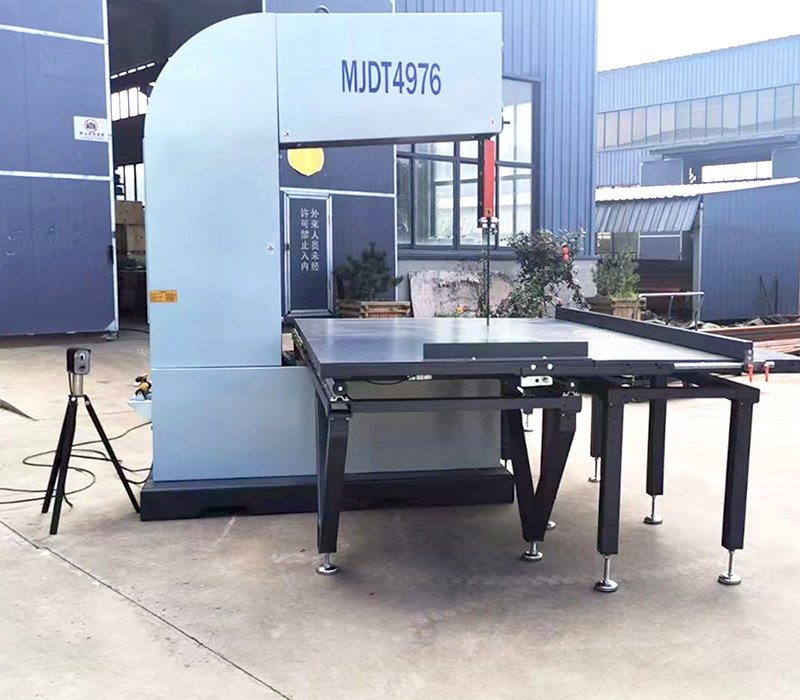

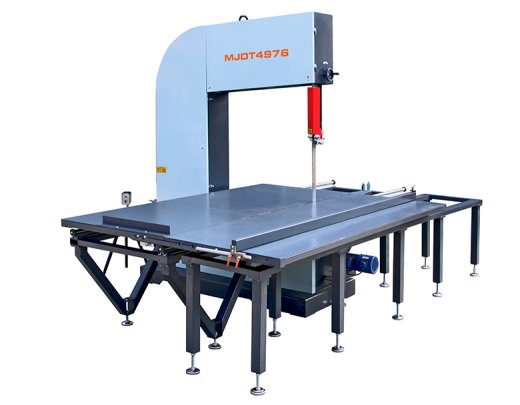

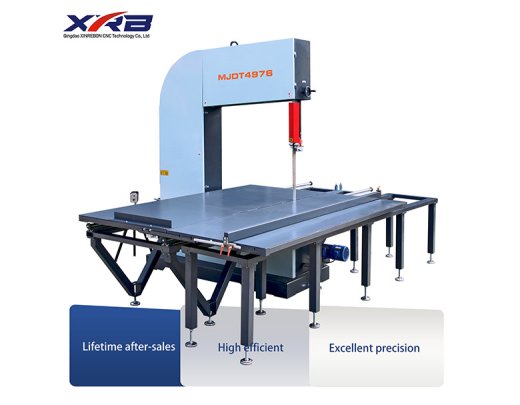

- MJDT4976' Vertical Band Saw
Solid body frame design, to enhance the stability, come with 4 pieces cast iron fly-wheels;
Can process the solid wood, foam and graphite etc.
Adopts sliding working table, with high quality bearing and round bar for smooth movementInverter controlled feeding speed, precise speed for different workpieces.
Hydraulic saw blade tension structure, to ensure the stability and long durability of blade.
Inquire now
+Add to cart
+Product Details
Reviews
Inquiry
Products Recommended
Product Details
| SPECIFICATIONS | ||||
| Max.cutting thickness(mm) | 1000 | Lenght of sliding table(mm) | 2730 | |
| Max.cutting throat(mm) | 1220 | Stroke of sliding table(mm) | 2500 | |
| Linear speed of saw blade(m/s) | 18 | Feeding speed(m/min) | 0-18 | |
| Rotating speed of fly wheel(RPM) | 500 | Motor power of cutting(KW) | 7.5 | |
| Size of fly wheel(mm) | 0600*2,0700*2,width:80mm | Motor power of feeding(KW) | 1.5 | |
| Size of the saw blade (mm) | 7810*70 | Overall dimension (mm) | 5040*2880*2850 | |
| Tension stress of saw blade(Mpa) | 15 | Weight (KGS) | 1500 | |
| Width of sliding table(mm) | 2000 | |||
-

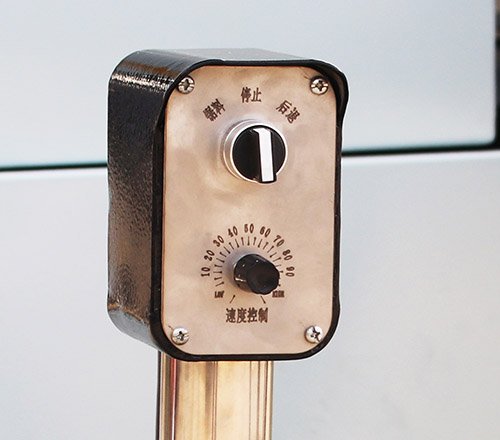

Max. feeding speed will be 18m/min, the machine adopts VF feeding speed adjustment
-

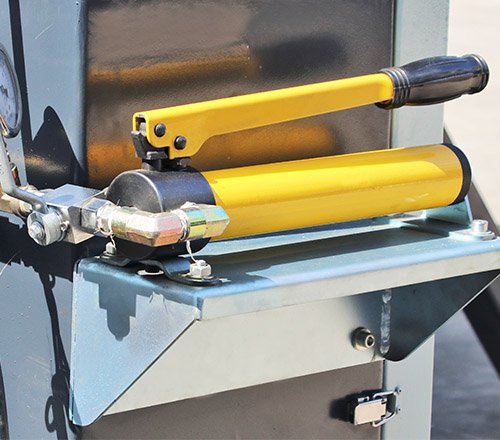

In order to achieve stable tension performance, adopts hydraulic type blade tension structure
-

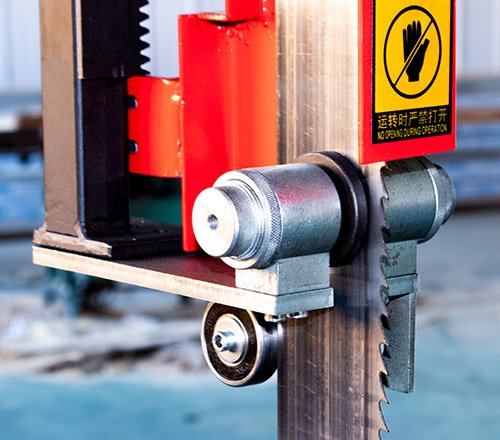

Saw blade guide post elevating adopts rack and pinion structure
Freouent Asked Ouestion |
Are there any other options? 2. Optional work light for increased work brightness, 3. Optional flat belt for easy hanging of saw blades. |
Can the machine change the voltage? |
