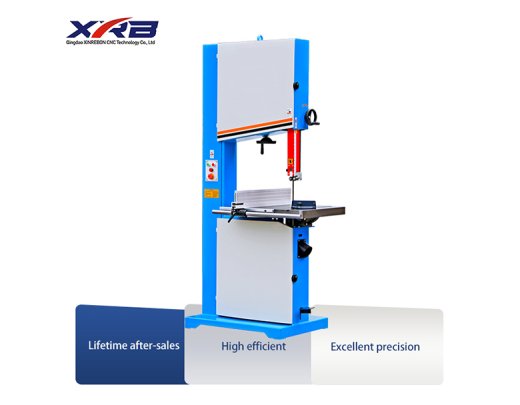

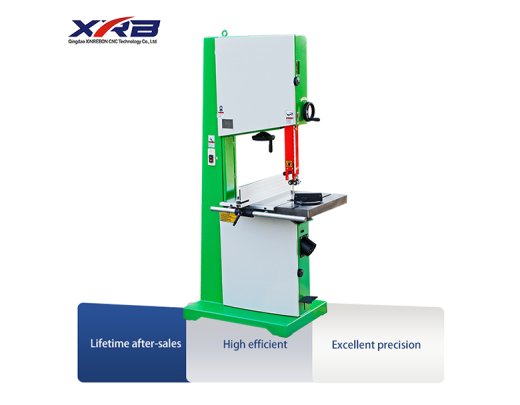

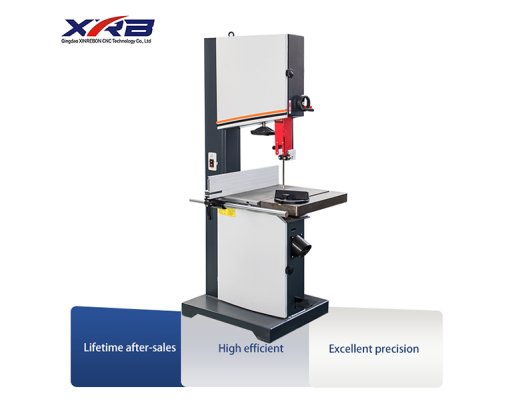

- E' Vertical Band Saw
Strengthen frame structure to ensure the stability of the machine and providestable cutting
Saw wheel is dynamically balanced ensuring stable rotation,saw blade linear speed is up to 25m/s
The saw balde guide adopts rack&pinion lifting structure,which is easy and stable to operate
Comes standard with a plastic push handle and an angle ruler.
Inquire now
+Add to cart
+Product Details
Reviews
Inquiry
Products Recommended
Product Details

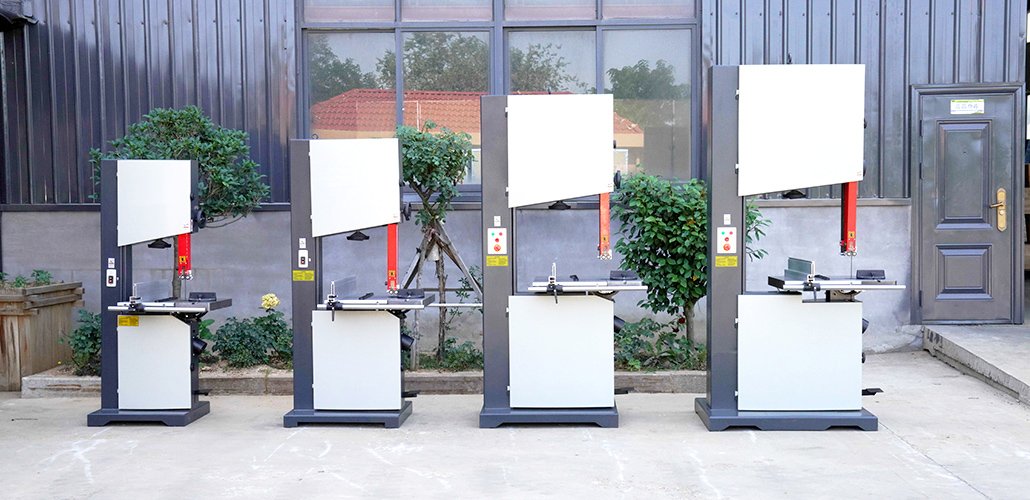

| MODEL | 344E | 345E | 346E | 347E | |||
| Max.cutting thickness(mm) | 320 | 370 | 450 | 500 | |||
| Max.cutting throat(mm) | 380 | 480 | 580 | 680 | |||
| Linear speed of saw blade(m/s) | 25 | 25 | 25 | 25 | |||
| Rotating speed of fly wheel(RPM) | 1200 | 1000 | 800 | 540 | |||
| Size of fly wheel(mm) | 0400,width:35mm | 0500,width:35mm | 0600,width:40mm | 0700,width:40mm | |||
| Size of the saw blade(mm) | 3620*16 | 4020*16 | 4660*19 | 5230*19 | |||
| Size of working table(mm) | 590*485*55 | 630*525*55 | 700*600*60 | 700*600*60 | |||
| Tilting angle of working table | 0-45° | 0-45° | 0-45° | 0-45° | |||
| V-belt model/quantity | A-914/2 | A-1000/2 | SPZ-1250/2 | SPZ-1549/2 | |||
| Motor power(KW) | 2.2 | 2.2 | 3.0 | 4.0 | |||
| Overall diamension(mm) | 800*752*1780 | 916*752*1890 | 975*823*2182 | 1155*923*2380 | |||
| Weight (KGS) | 210 | 248 | 368 | 470 | |||
-

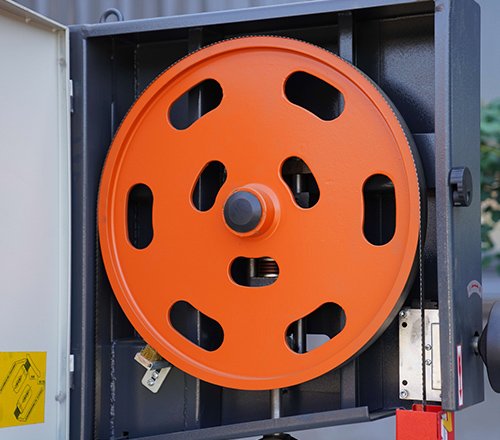

Heavier and wider precision saw wheels, dynamically balanced
-

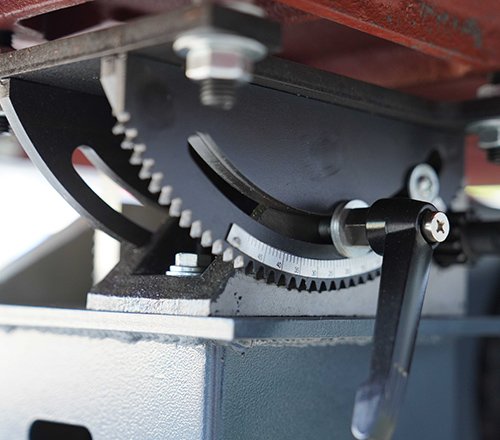

Table top 45° inclined
-

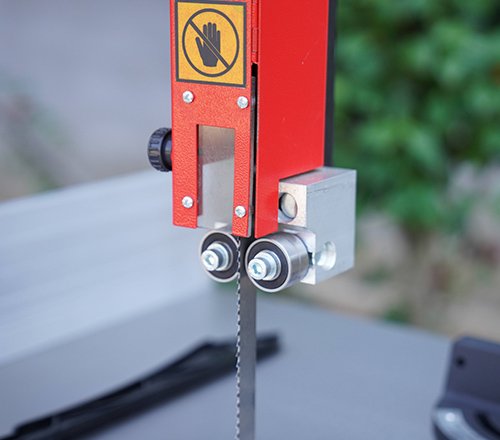

European saw blade guide. High stability and wear resistance
-

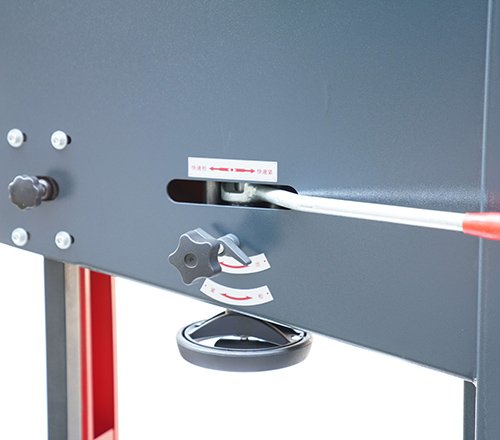

Come standard with quick tension for easy changing of saw blade
Freouent Asked Ouestion |
Are there any other options? 2. Optional work light for increased work brightness, 3. Optional flat belt for easy hanging of saw blades. |
Can the machine change the voltage? |
