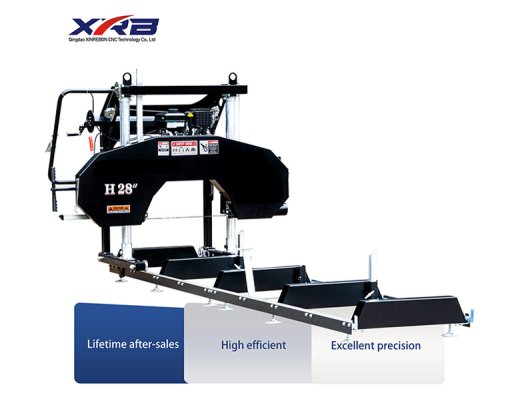

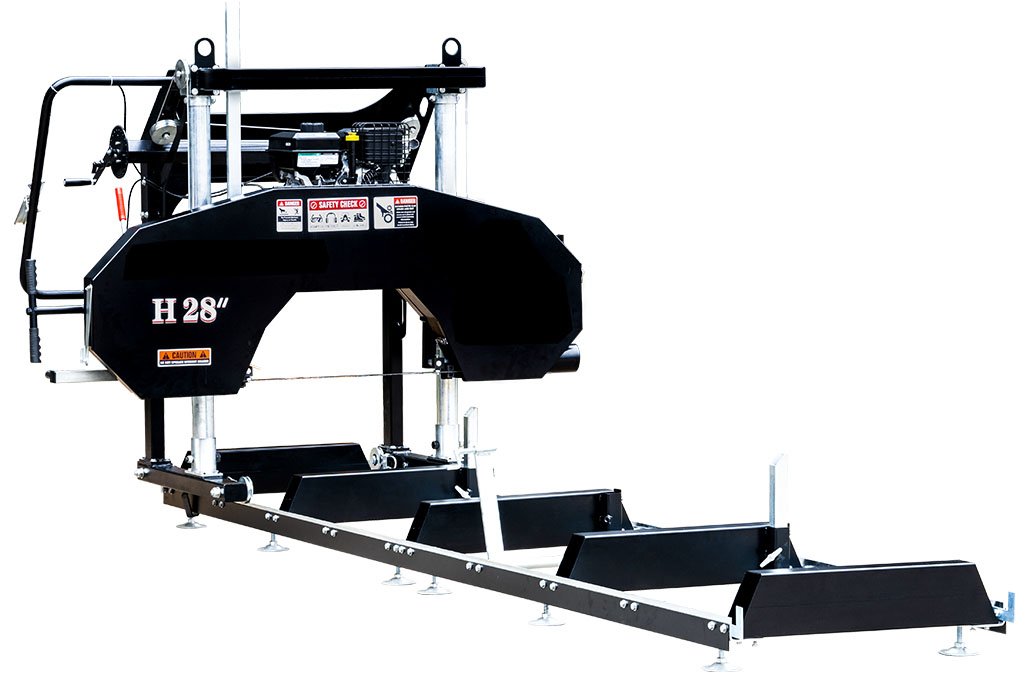

Horizontal Band Saw

- Horizontal Band Saw

This product is suitable for horizontal cutting of logs. The saw wheel drives the saw blade to perform rough processing on the logs.
This product is equipped with a quick tensioning function. When not in use, the tension will be loosened to extend the service life of the saw blade.
The machine is equipped with imported alloy saw blades. It is important that there are not sand and stones on the

log to avoid damage to the saw blade. If the condition of use is bad and the sand and stones are difficult to clean, please contact the manufacturer to order special saw blades.

Inquire now

Add to cart

Product Details

Reviews

Inquiry

Products Recommended

Product Details

Model	28
Maximum log diameter	720mm
Maximum cutting height	640mm
Maximum cutting width	680mm
Maximum cutting thickness	280mm
Maximum cutting length	3000mm
Saw blade linear speed	18m/s
Saw blade specification	3930*34mm
Petrol engine	10HP
Saw wheel speed	727r/min
Saw wheel size	476*24mm
Total weight	422kg

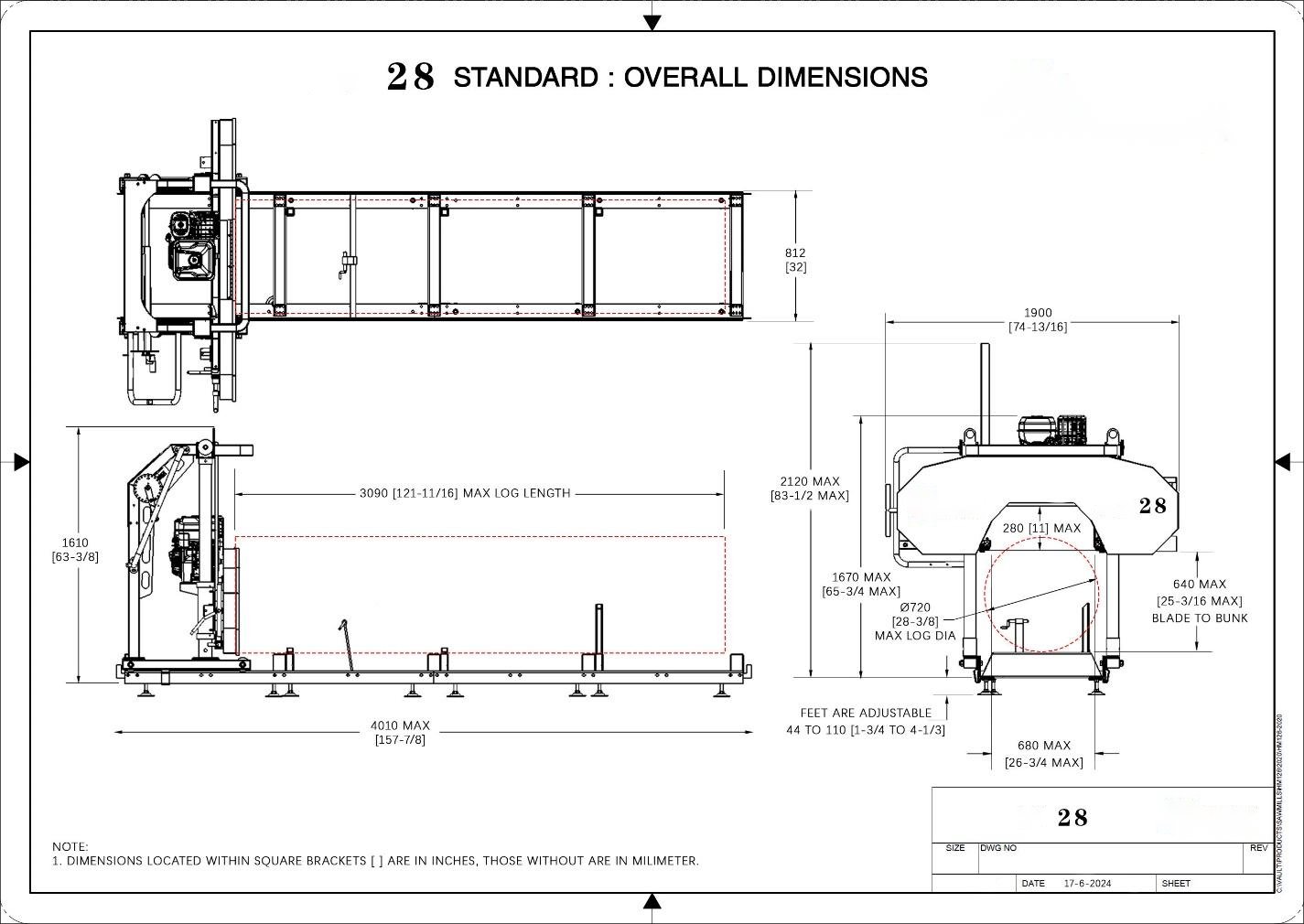

Overall dimensions	400021002300mm

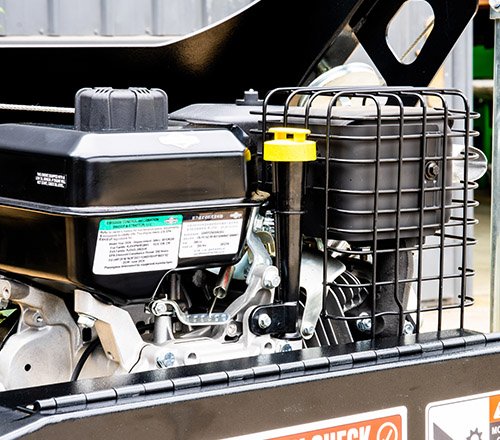

Equipped with a 10HP lifan gasoline engine, providing stable and powerful power for the horizontal saw
Standard magnetic ruler with reference table The machine comes with hooks for easier transportation

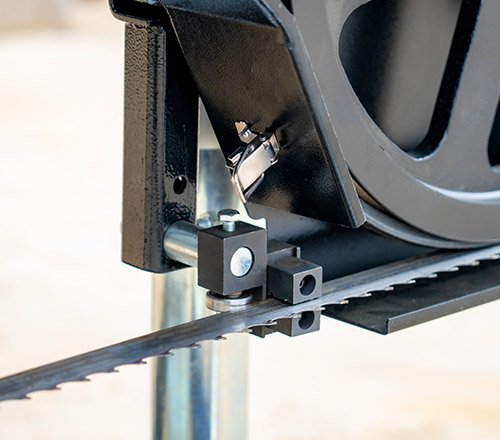

Equipped with high wear-resistant saw blade extrusion block and bearing backrest Left and right double saw clamps, one side is adjustable. To ensure the horizontal operation of the saw blade
Rear protective cover design and hidden lifting structure to prevent hand injuries Contains precision machined cross braces to provide a high-strength body structure for the horizontal saw

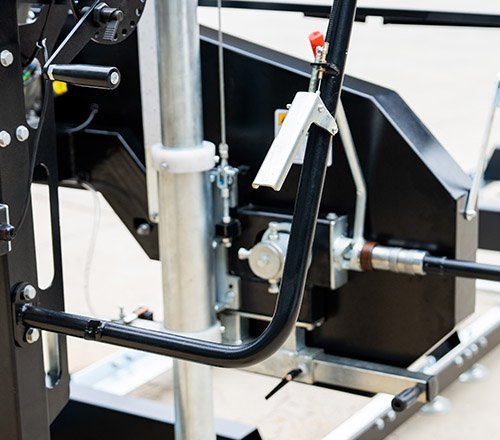

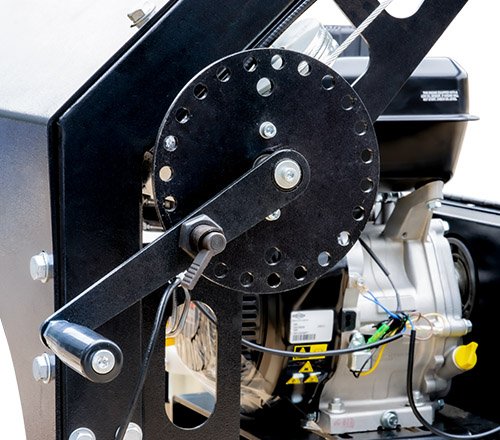

The lifting wheel has a locking hole and is equipped with a self-locking screw lifting system, which provides double insurance and greater safety Suitable transmission ratio, saving effort while taking into account lifting speed
The entire series is equipped with a quick tensioning mechanism as standard. Patented products will be prosecuted for counterfeiting.When not using, loosen the tension on the blade to provide a longer service life for the saw blade.
