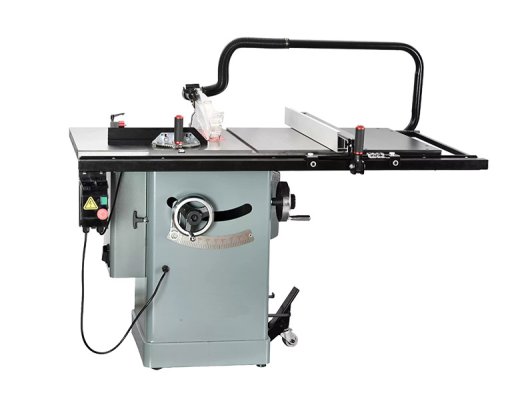

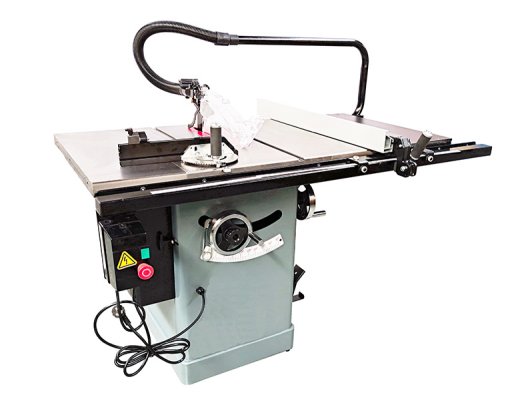

0708' Table Saw

- 0708' Table Saw

Suitable for processing various density boards, particle boards, artificial boards, ABS boards, PVC boards, organic glass and solid wood and other wood structures, and boards with similar hardness.

Inquire now

Add to cart

Product Details

Reviews

Inquiry

Products Recommended

Product Details

Main parameters		Standard Configuration
Motor	220v 50Hz	Taiwan NHD magnetic starter

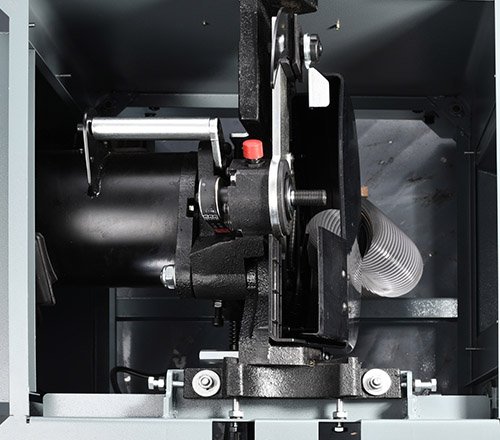

Input Power	2800w	Internal dust extraction system of saw shaft
Output Power	2200w	Dato workbench cover
Saw blade diameter	254mm	Standard workbench cover

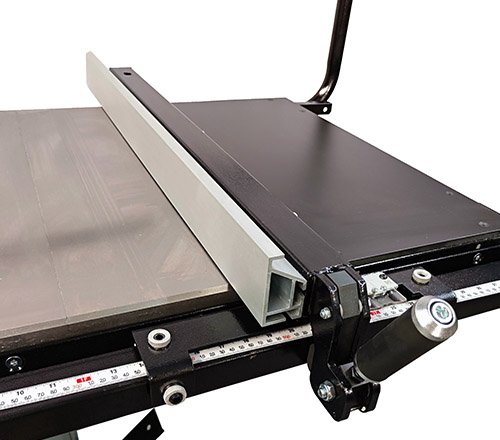

Saw shaft diameter	15.88mm	T-Glide slitting backing system with high and low backing
Saw shaft speed	4100rpm	Quick saw shaft locking device
Dado saw blade maximum width	20.6mm	Foot-operated caster system
Dado saw blade maximum diameter	200mm	30 inch bakelite extension table

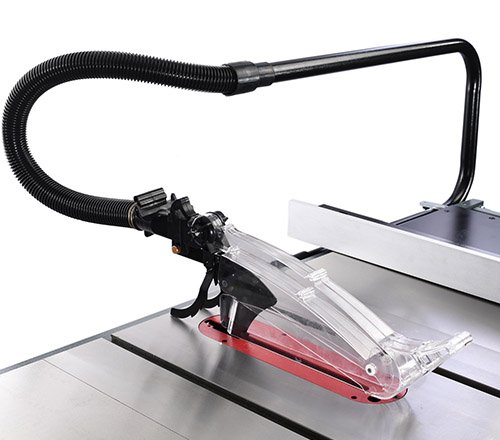

Saw blade 90° maximum cutting height	76mm	Saw blade guard with dust suction function (with 40mm dust suction tube)

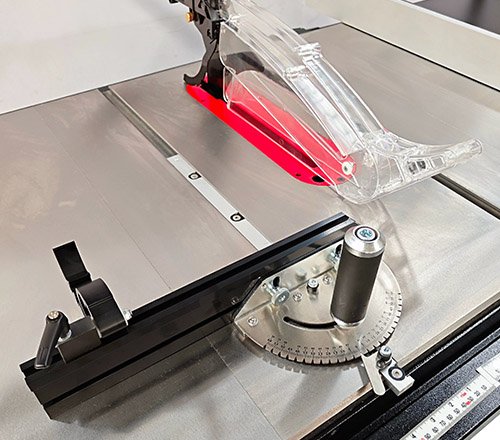

Saw blade 45° maximum cutting height	54mm	Angle ruler with backrest and positioning block
Saw blade tilt direction	Left-leaning	10-inch splitting knife, dividing knife
Maximum longitudinal cutting width on the right side of saw blade	762mm
Maximum longitudinal cutting width on the left side of saw blade	520mm
Cast iron main workbench size	685x512mm
Cast iron workbench dimensions (with two cast iron extension tables)	685x1020mm
Complete workbench size (cast iron extension table + 30-inch bakelite extension table)	685x1360mm

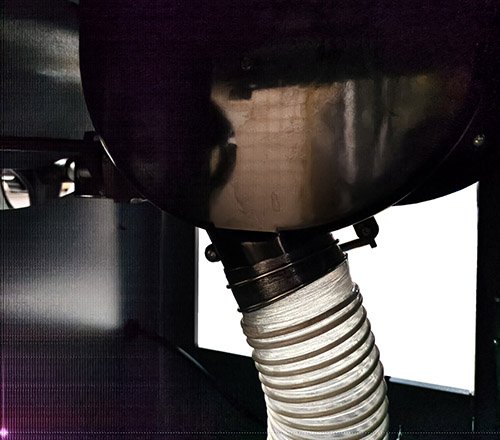

External dust suction port diameter	100mm
Inner dust suction port diameter	40mm
Maximum dimensions	1560x1040x1250mm
Net weight/gross weight	180/220Kilogram

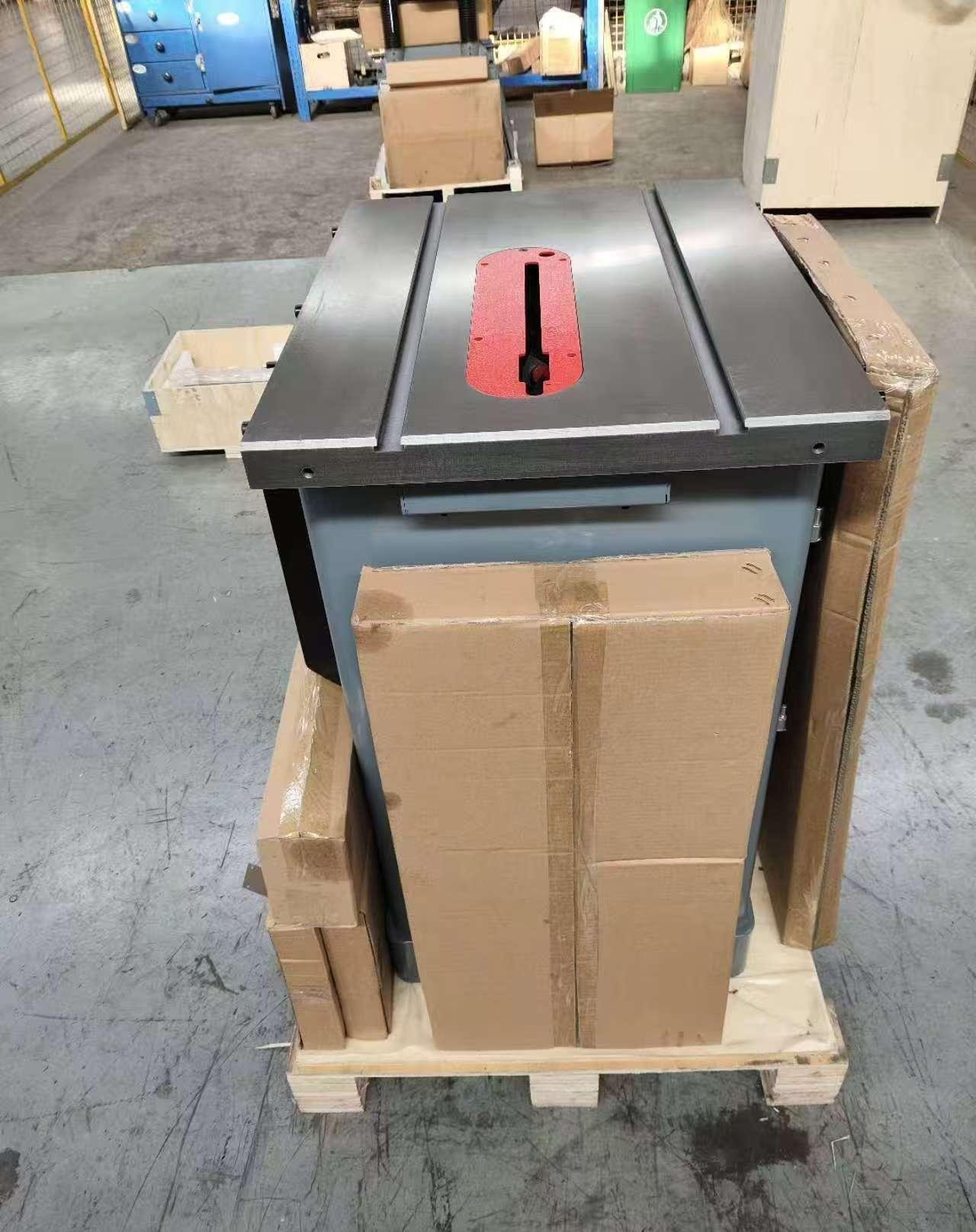

Outer box size：1/2 2/2	790x730x1040mm 1700x380x250mm
