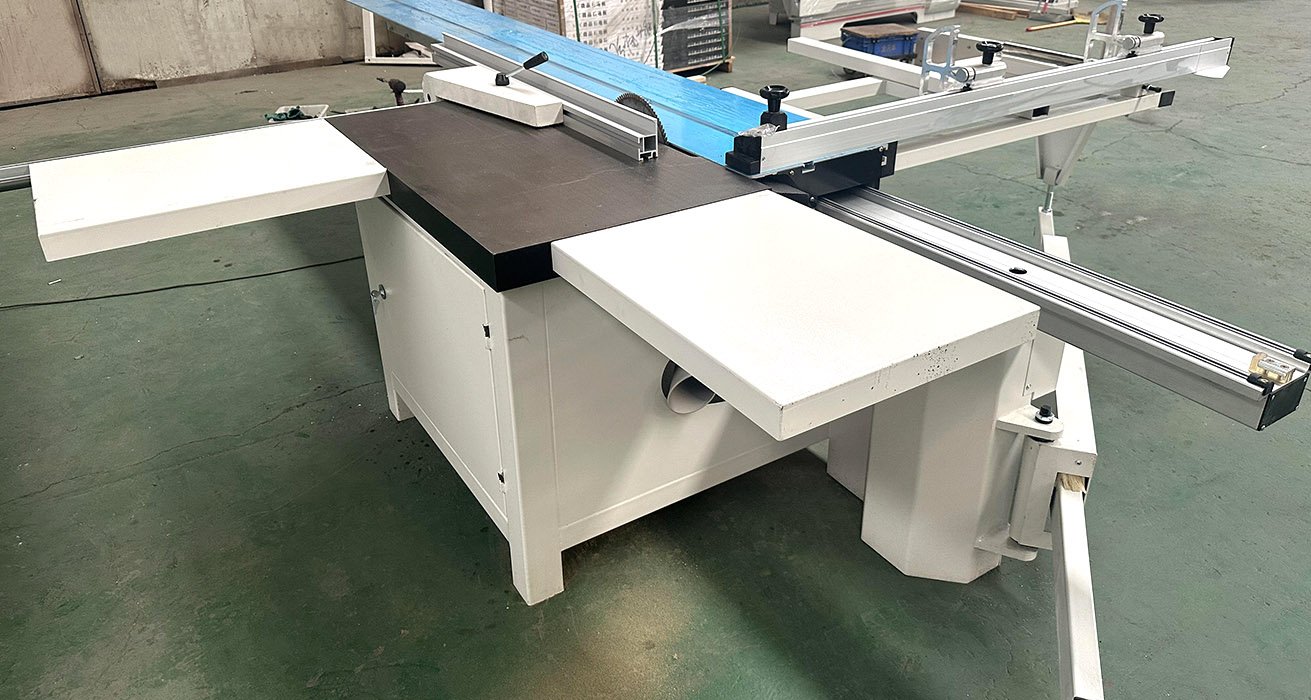

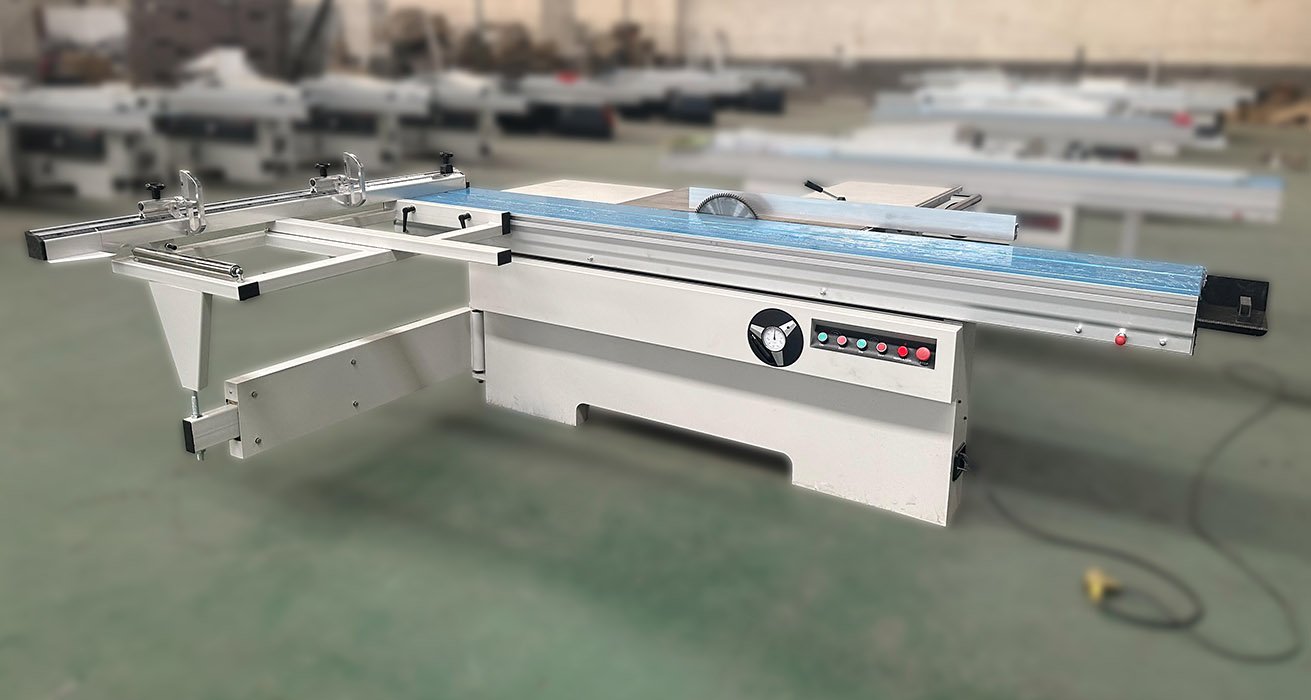

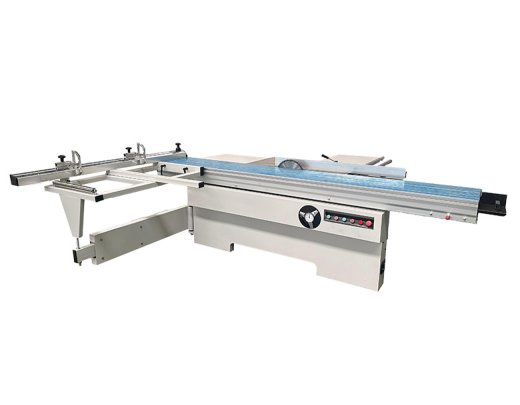

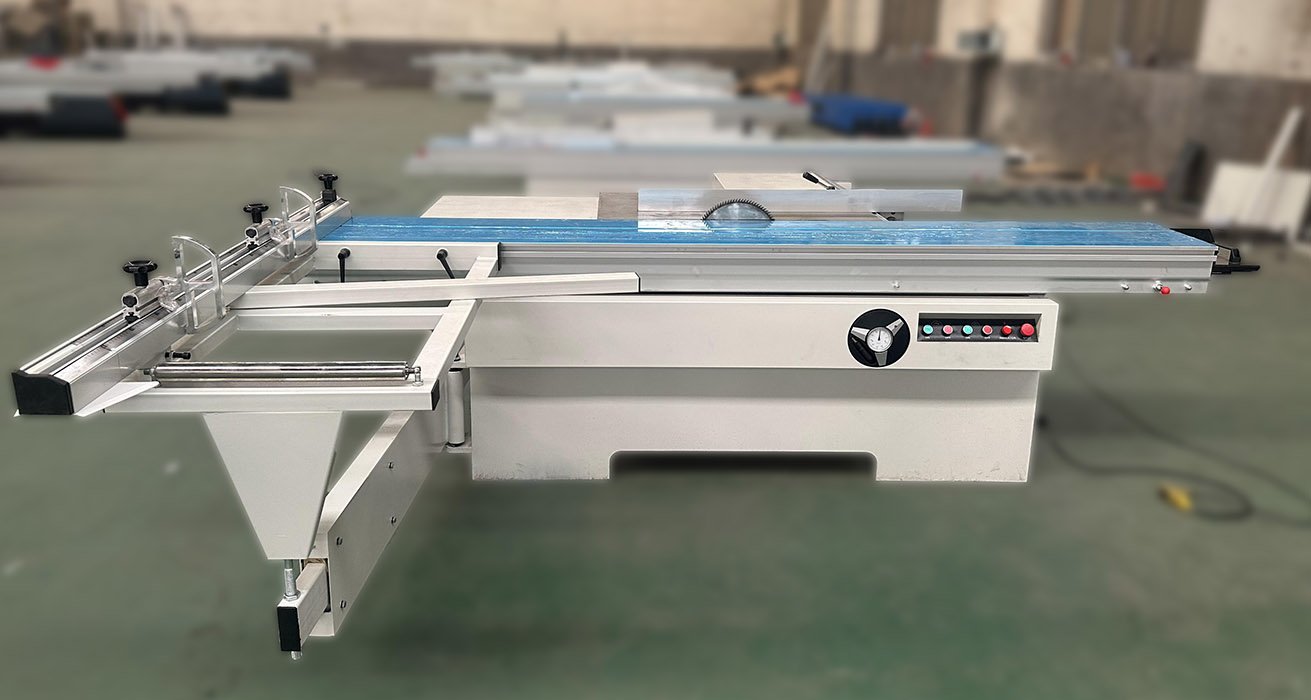

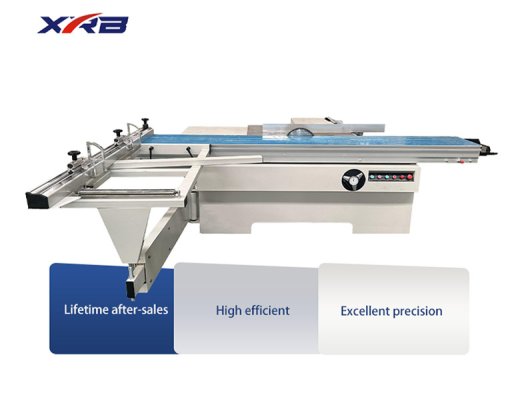

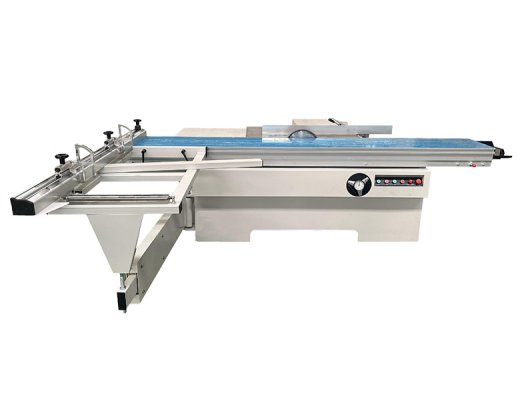

- MJ45D' Sliding Table Panel Saw
Suitable for processing various density boards, particle boards, artificial boards, ABS boards, PVC boards, organic glass and solid wood and other wood structures, and boards with similar hardness. The guide rail is a plated round rod structure with high positioning accuracy. It is made of high-strength extruded aluminum alloy, with high strength and no deformation; the surface is oxidized, beautiful and wear-resistant.
Inquire now
+Add to cart
+Product Details
Reviews
Inquiry
Products Recommended
Product Details
Sliding table panel saw, using body bending, 5mm body steel plate, using heavy-duty body internal structure, digital angle display, motor using 4.5kw + 0.75kw pure copper motor, saw blade manual, large saw blade and small saw blade separate start button with emergency stop button, push the table to use the width of 375mm, the length of 3200mm, the maximum length of the cut up to 3100mm, hand saw blade tilt 45 ° to realize 45 ° angle cutting, 1600mm large ruler, with phase sequence protection. Realize 45 ° angle cutting, 1600mm large feet, using Chint brand electrical appliances, with phase sequence protection function.
| Model: | MJ45D-32 | MJ45D-30 | MJ45D-28 |
Push table width: | 375mm | 375mm | 375mm |
Push table length: | 3200mm | 3000mm | 2800mm |
Main motor power: | 4kw | 4kw | 4kw |
Scribing saw motor power: | 0.75kw | 0.75kw | 0.75kw |
Main saw blade diameter: | 300mm | 300mm | 300mm |
Scribing saw blade diameter: | 120mm | 120mm | 120mm |
Spindle diameter: | 30mm | 30mm | 30mm |
Sub-axis diameter: | 20mm | 20mm | 20mm |
Maximum cutting length: | 3100mm | 2900mm | 2700mm |
Maximum cutting thickness: | 75mm | 75mm | 75mm |
Weight: | 540kg | 520kg | 500kg |
Angle of saw blade: | 0-45° | 0-45° | 0-45° |
Voltage: | 380V 3P 50HZ can be customized | 380V 3P 50HZ can be customized | 380V 3P 50HZ can be customized |
-

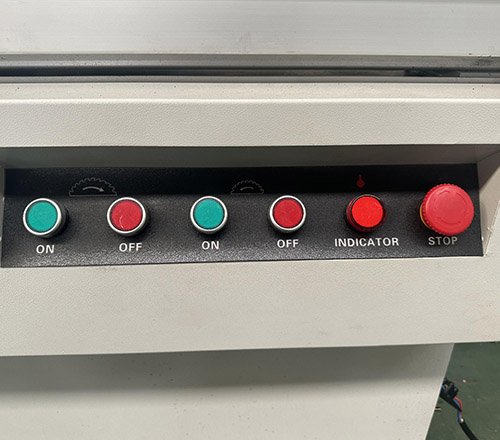

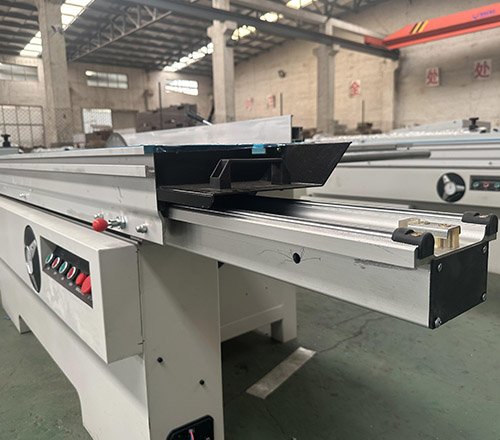

Control Panel
-
Saw blade 45° tilt
-

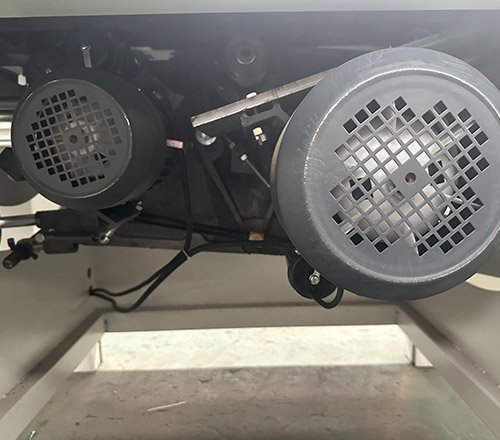

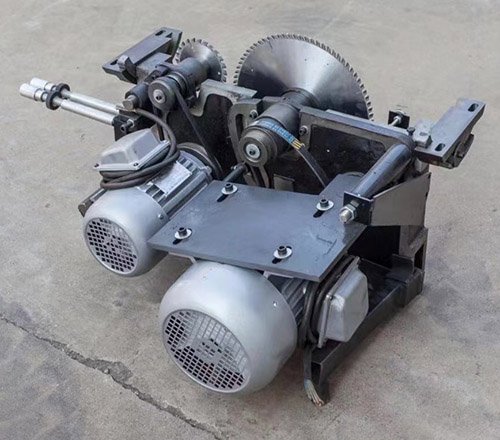

4.5+0.75kwPure Copper Motor
-

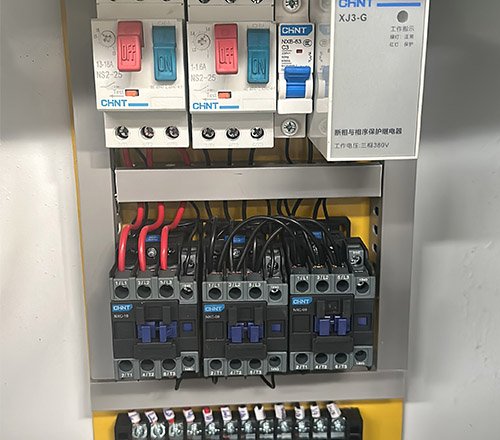

Electrical box
-

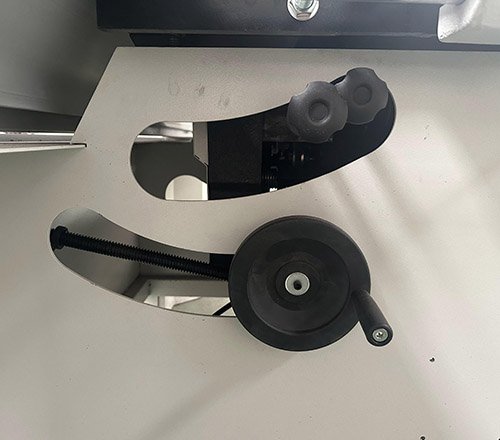

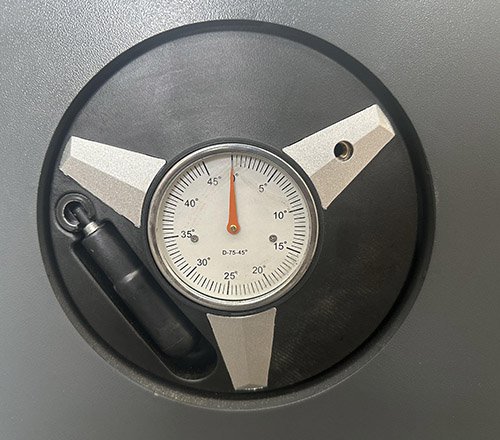

Manual lifting of main saw blade
-

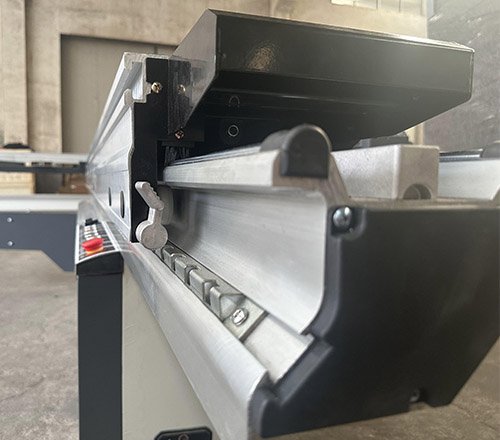

Aluminum push table
| Optional Accessories | |
 |  |
| Adjustment of Digital Display | Large Dust Collecting Enclosures |
 |  |
| Manual Press Device | Push Table Angle Ruler |
 |  |

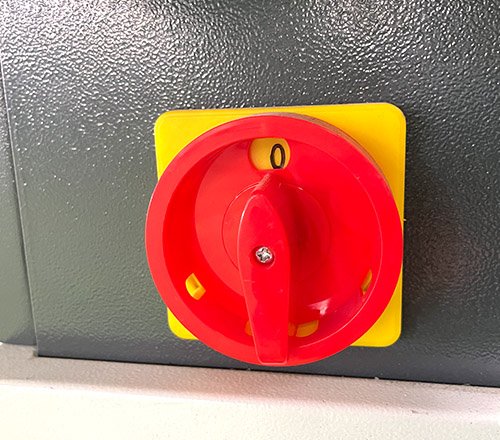

| 5.5kw+1.1kw Pure Copper Motor | Power Switch |
 |  |

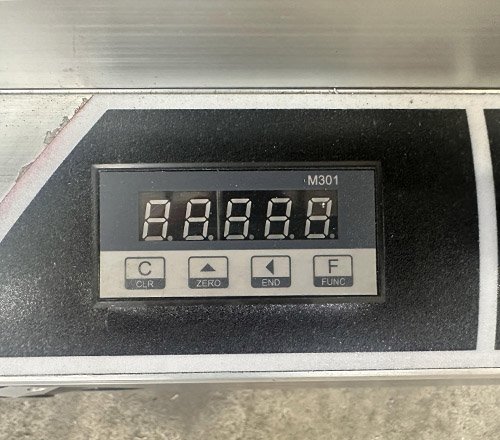

| 45° Digital Display | Thickened Sliding Table |
