Product Details

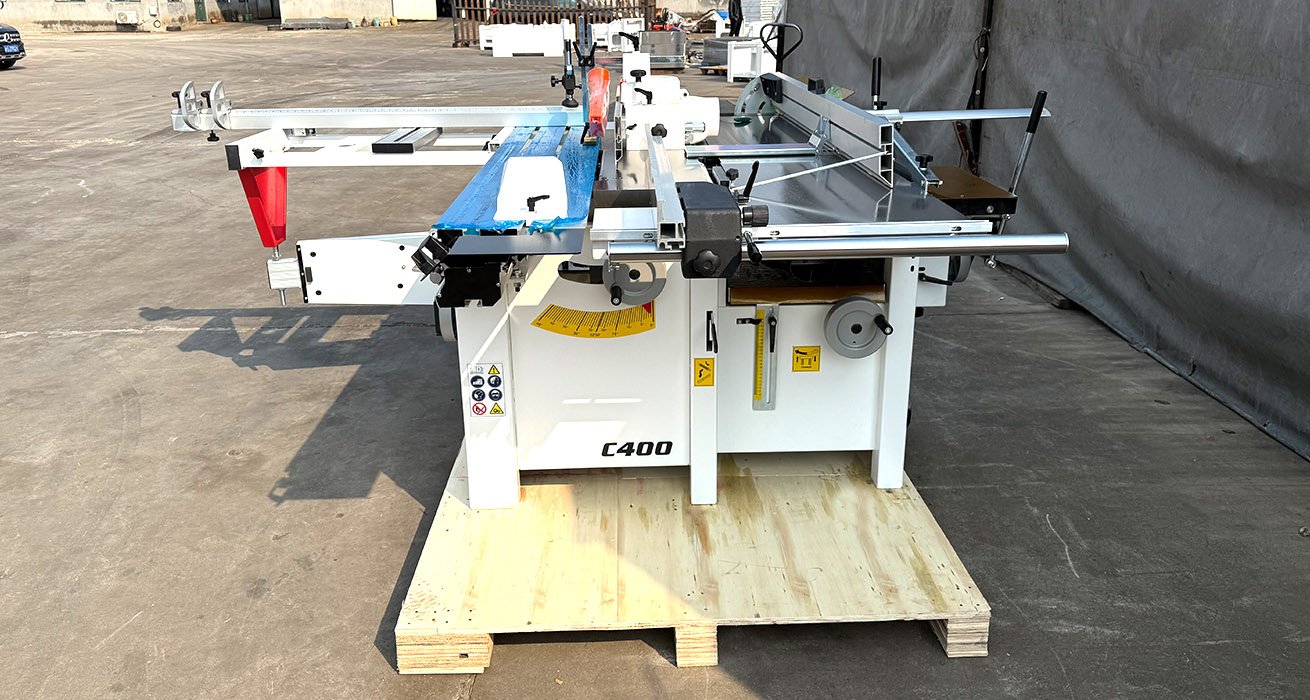

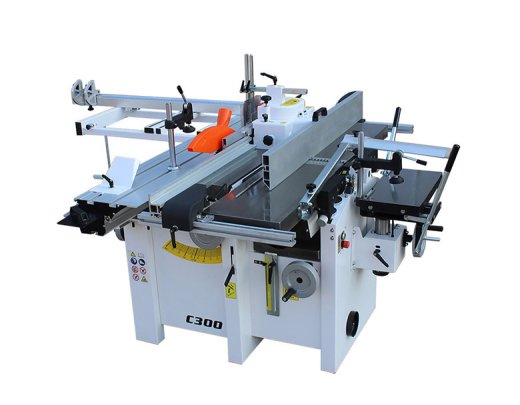

| Planer | Unit | C400 | C300 |
| Working table | mm | 400x1800 | 300x1500 |
| Cutter block diameter | mm | 70 | 70 |
| Cutterblock rotation speed | r.p.m | 5700 | 5700 |
| Dimensions knives(3 knives) | mm | 400x25x3 | 300x20x3（300x25x3） |
| Max table adjustement | mm | 4 | 4 |

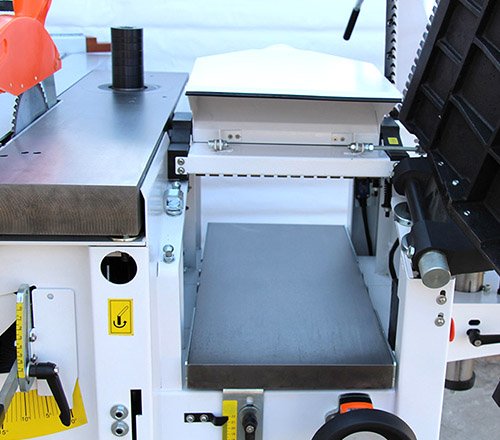

| Thicknesser | |||
| Working table | mm | 400x760 | 300x660 |
| Feeding speed | m/1' | 7 | 7 |
| Working height | mm | 4-220 | 4-220 |
| Mortiser | |||
| Working table | mm | 250x500 | 250x500 |
| Ale Longitudinal//Trasversal/Vertical stroke | mm | 205/95/90 | 205/95/90 |
| Churck (M18*1.5-S) | mm | 0-16 | 0-16 |
| Circular saw | |||
| Working table | mm | 326x1112 | 220x1000 |
| Shaft rotation/Engraver speed | r.p.m. | 4500/7000 | 4500/7000 |
| Blade diameter | mm | 300x30 | 250x30 |
| Cutting height at 45°/90° | mm | 75/95 | 50/80 |
| Max distance between blade and fence | mm | 730 | 500 |
| Engraver blade diameter | mm | 90x22 | 90x22 |

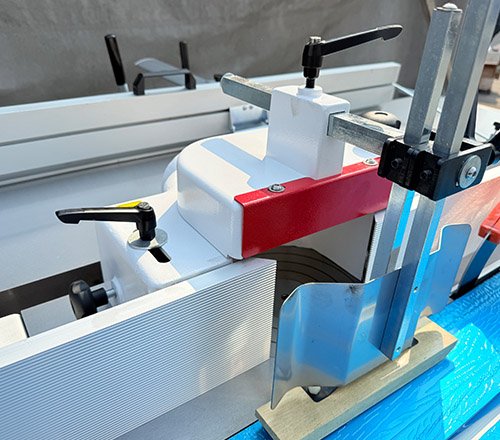

| Shaper | |||
| Working tables | mm | 290x1112 | 220x1000 |
| Shaft rotation speeds | r.p.m. | 2000/3100/4400/7000 | 2000/3100/4400/7000 |
| Standard shaft diameter | mm | 30/35/50 | 30/35/50 |
| Shaft vertical stroke | mm | 115 | 115 |
| Max.tool diameter | mm | 180 | 160 |
| Max.tenoning depth | mm | 65 | 55 |
| Standard accessories | |||
| 3-phase motor power | HP-KW | 4,0-3,0 | 3,0-2,2 |
| Carriage dimensions | mm | 1800x315 | 1250x315 |
| Weight | kg | 680 | 560 |
| Optional accessories | |||
| Single-phase motor | HP-kW | 4,0-3,0 | 3,0-2,2 |
| Increased 3-phase motor | HP-kW | 5,5-4,0 | 4,0-3,0 |
| Dimension Carriage | mm | 2200/2600 | 1600/1800/2000/2200 |
-

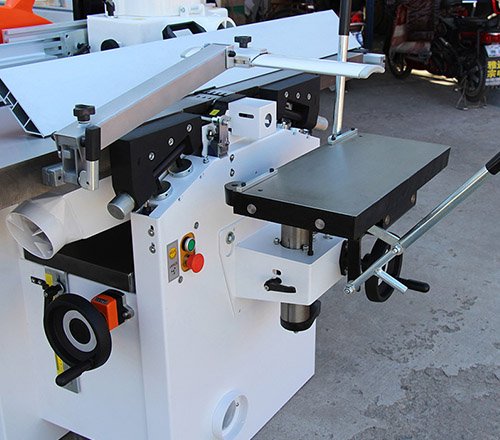

Mortiser
-

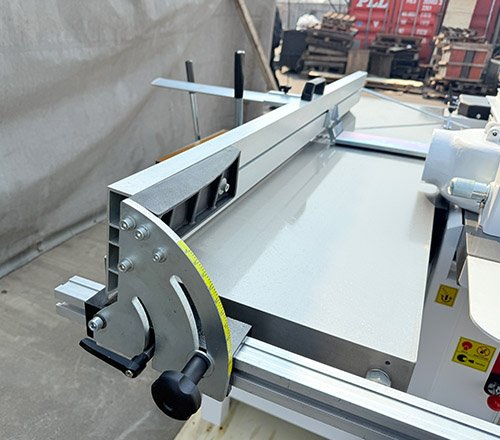

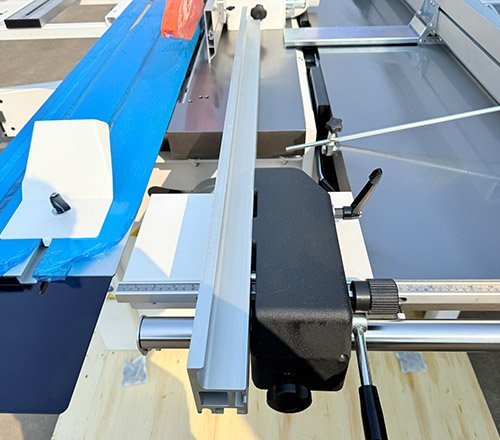

Circular saw
-
Surface planer
-
Thickness planer
-
Shaper

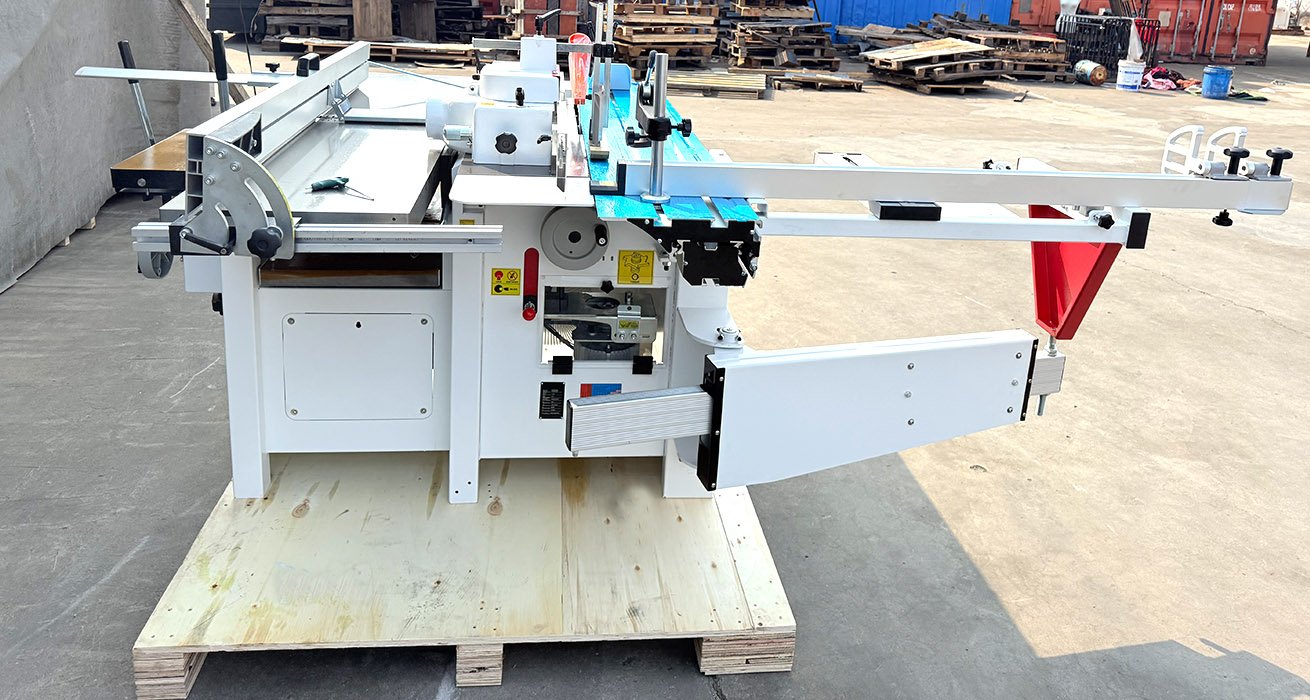

| Packaging Photo |
|
