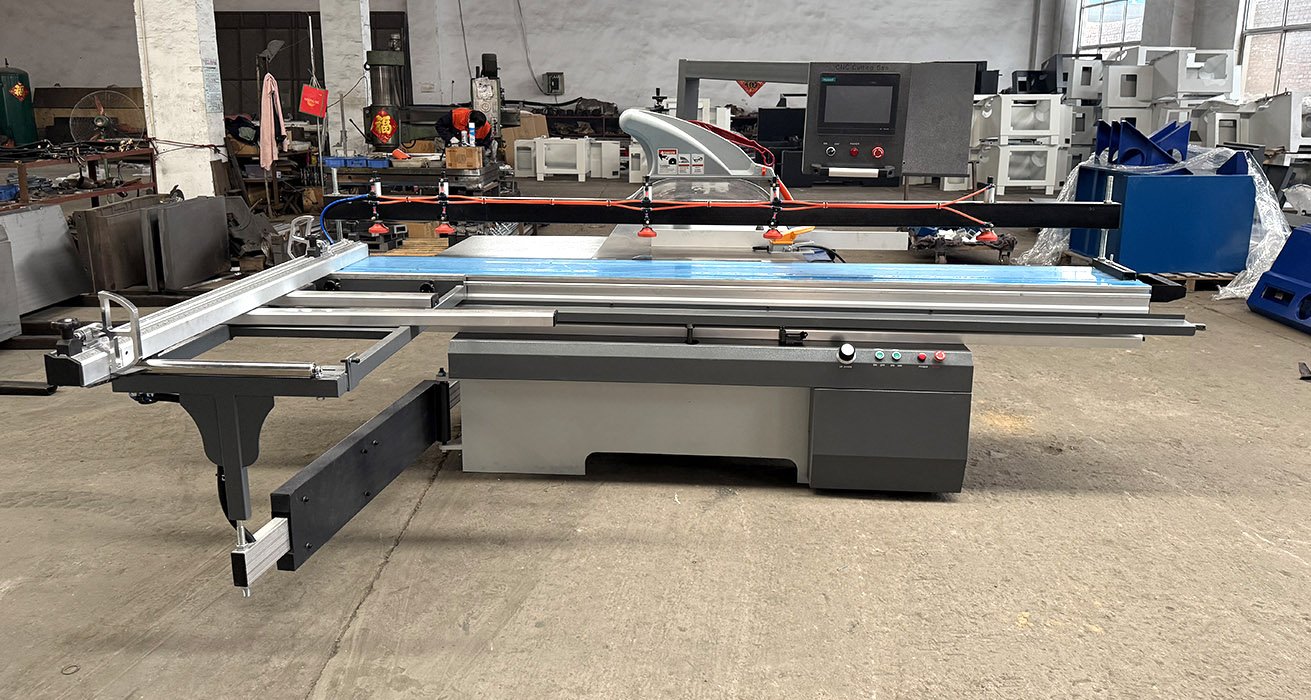

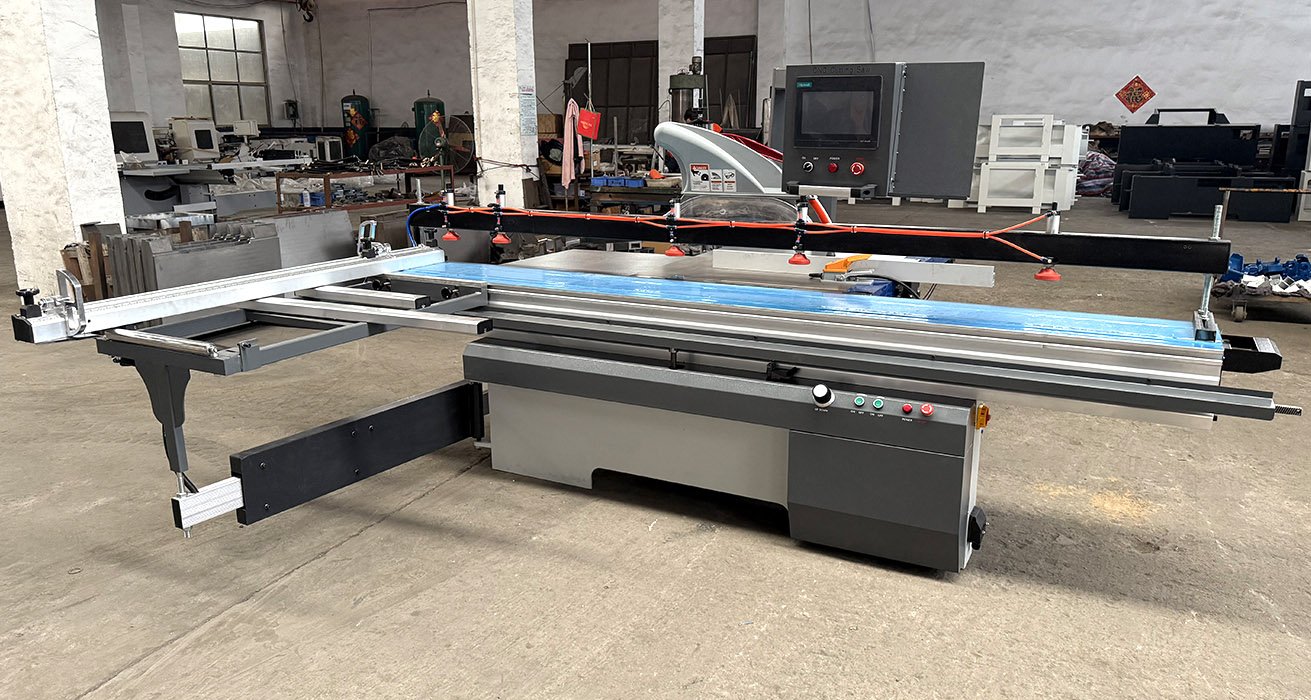

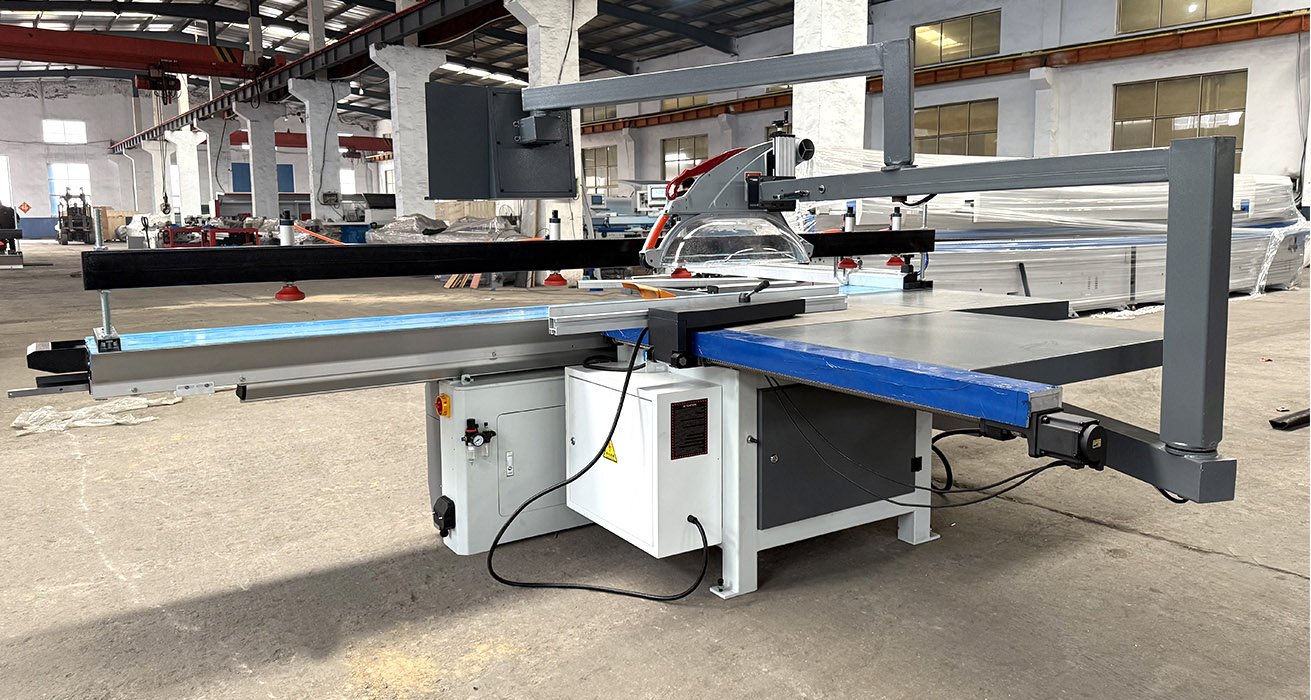

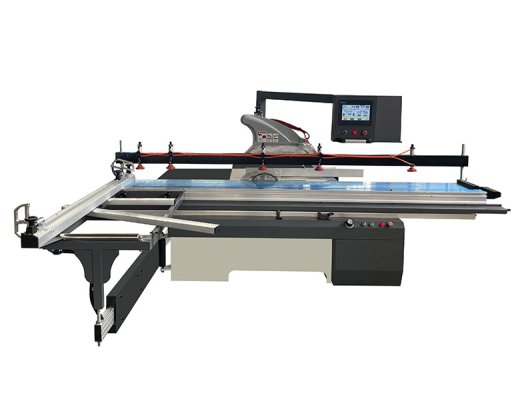

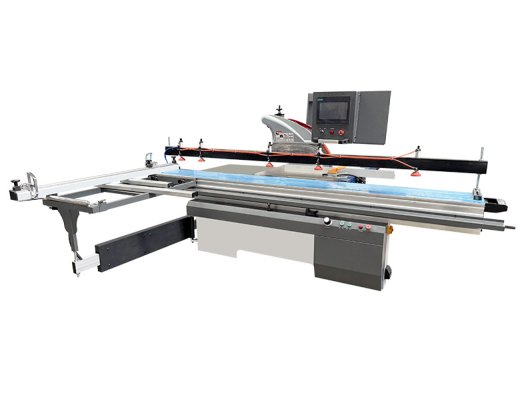

MJ6132AC' CNC Sliding Table Saw

- MJ6132AC' CNC Sliding Table Saw

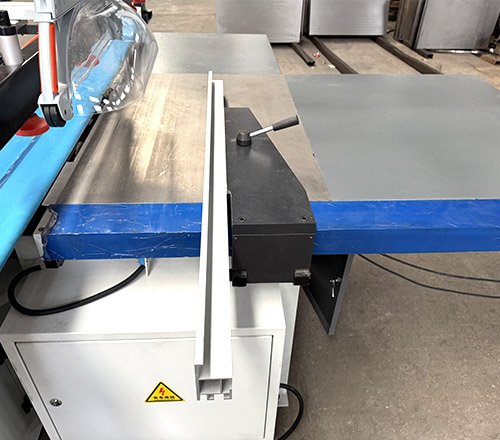

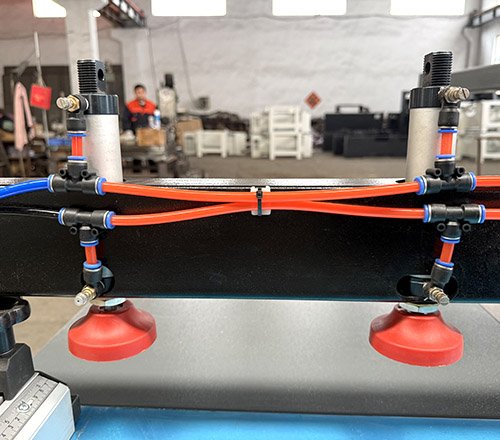

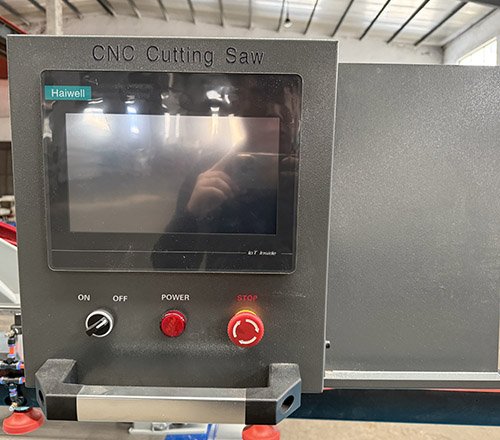

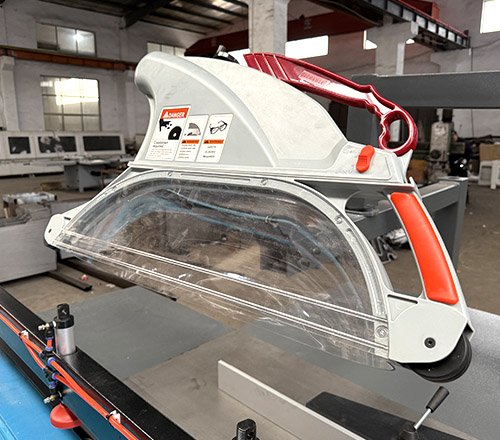

CNC sliding table saw, touch screen can control the position of the right side of the ruler, with pneumatic pressure device, saw blade pneumatic lifting and lowering, collapsible Large Dust Collecting Enclosures, can be automatic cutting can also be manual cutting.

Heavy duty body, good stability of gantry milling processing, sandblasted surface with plastic spraying process, simple and generous and do not lose paint, to ensure the durability of the machine.

Inquire now

Add to cart

Product Details

Reviews

Inquiry

Products Recommended

Product Details

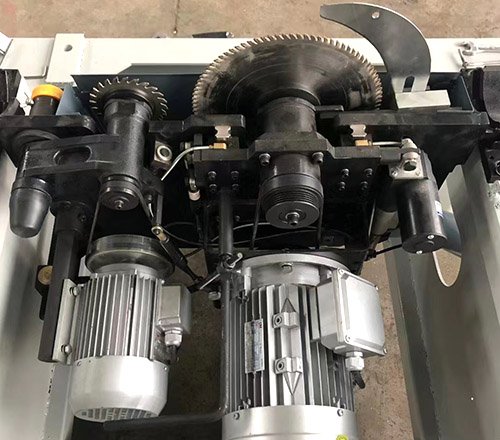

5.5+1.1kw pure copper motor, fast heat dissipation to ensure long time processing operation, equipped with linear guide electric lifting structure, making it stable, cutting accuracy, electric lifting structure to improve production efficiency.

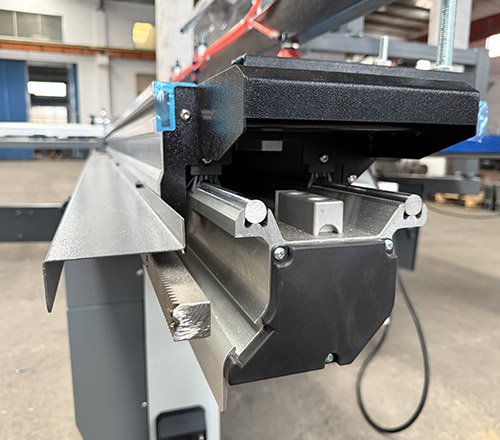

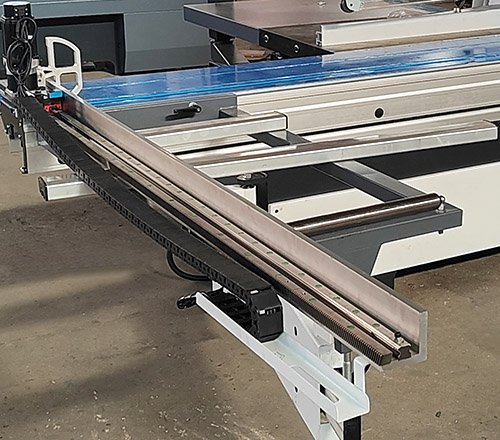

European 390mm wide heavy duty push table, guide rail is celluloid plated round bar structure, high positioning accuracy, made of high strength extruded aluminum alloy, high strength, no deformation; the surface is oxidized, beautiful and wear-resistant.

Model:	MJ6132AC
Push table width:	390mm
Push table length:	3200mm
Main motor power:	5.5kw
Scribing saw motor power:	1.1kw
Main saw blade diameter:	300mm
Scribing saw blade diameter:	120mm
Spindle diameter:	30mm
Sub-axis diameter:	20mm
Maximum cutting length:	3100mm
Maximum cutting thickness:	75mm
Weight:	900kg
Angle of saw blade:	0-45°
Voltage:	380V 3P 50HZ can be customized
