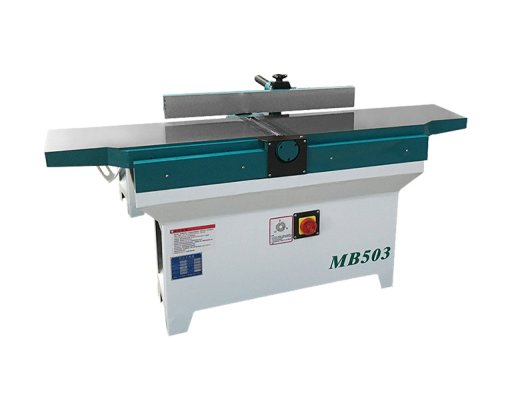

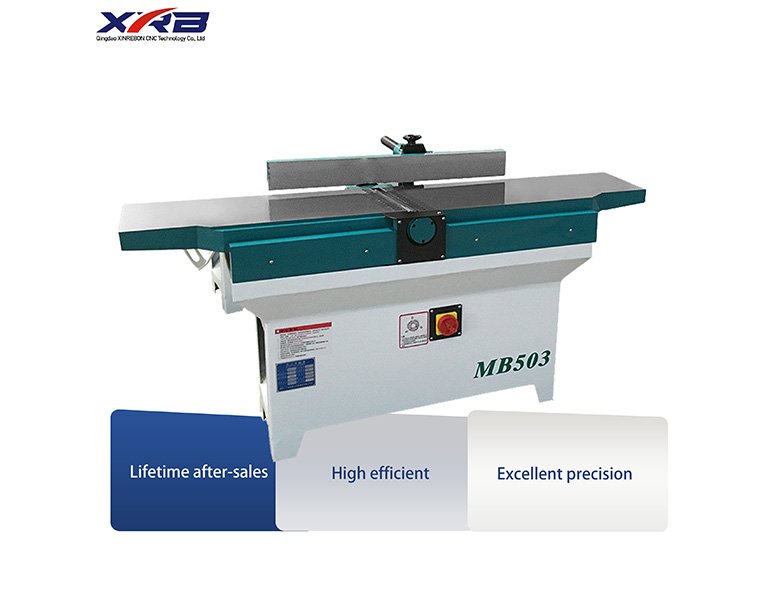

Woodworking Surface Planer Jointer Description:High accuracy Processing of wood surface formation, wood can be inclined planing smooth. Professional bevel flat plane and flat-fell seam, Widely used in integrated materials processing, furniture factory, construction industry, wood mold processing and other enterprises.We provide more models of woodworking thicknesser planers, you can choose the thicknessing width with 250, 300,400, 500, 600, 630mm Except flat planer, we also provide automatic feeding flat planer ,four sides planer and Straight mouth planer.
Inquire now
+Add to cart
+Product Details
Reviews
Inquiry
Products Recommended
Model | MB503 | MB504 | MB505 | MB506 |
Max.working depth | 3mm | 3mm | 4mm | 4mm |
Max.working width | 300mm | 400mm | 500mm | 600mm |
Spindle speed | 5600r/min | 5600r/min | 5600r/min | 5600r/min |
Knife shaft quantity | 3pcs | 3pcs | 3pcs | 3pcs |
Motor power | 2.2kw | 3kw | 4kw | 4kw |
Motor speed | 2840r/min | 2840r/min | 2840r/min | 2840r/min |
Weight | 230kg | 280kg | 320kg | 360kg |
-

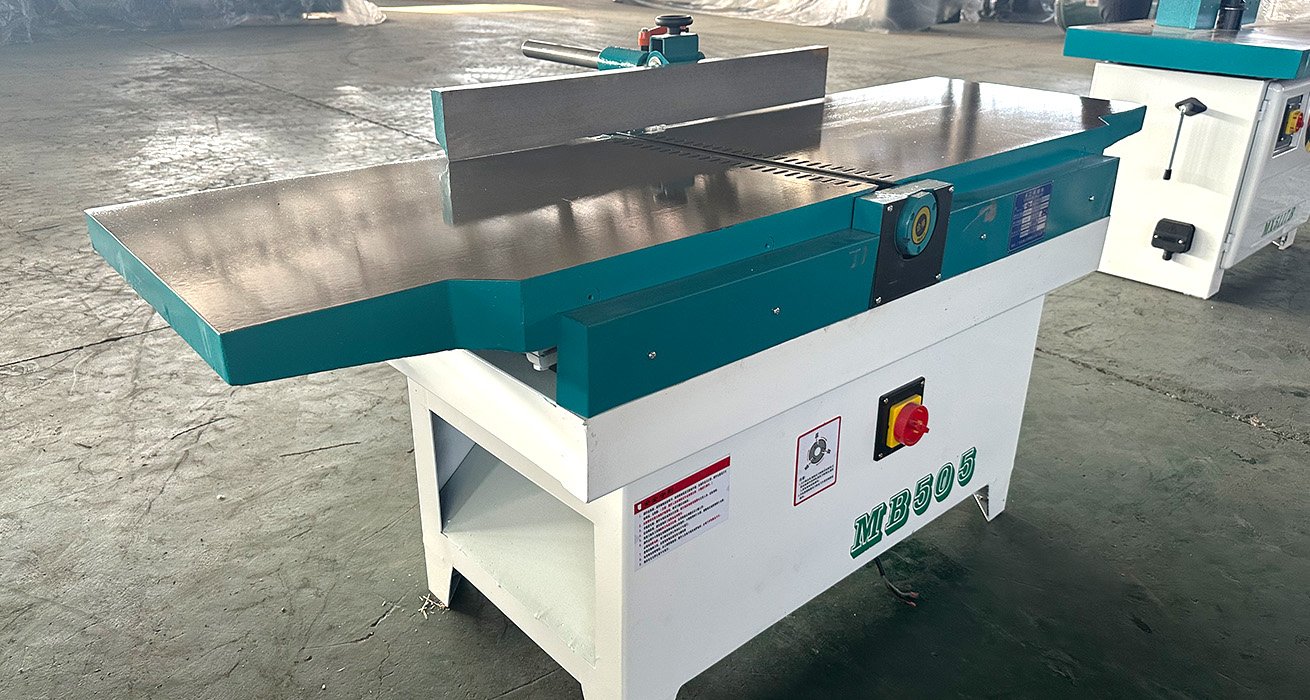

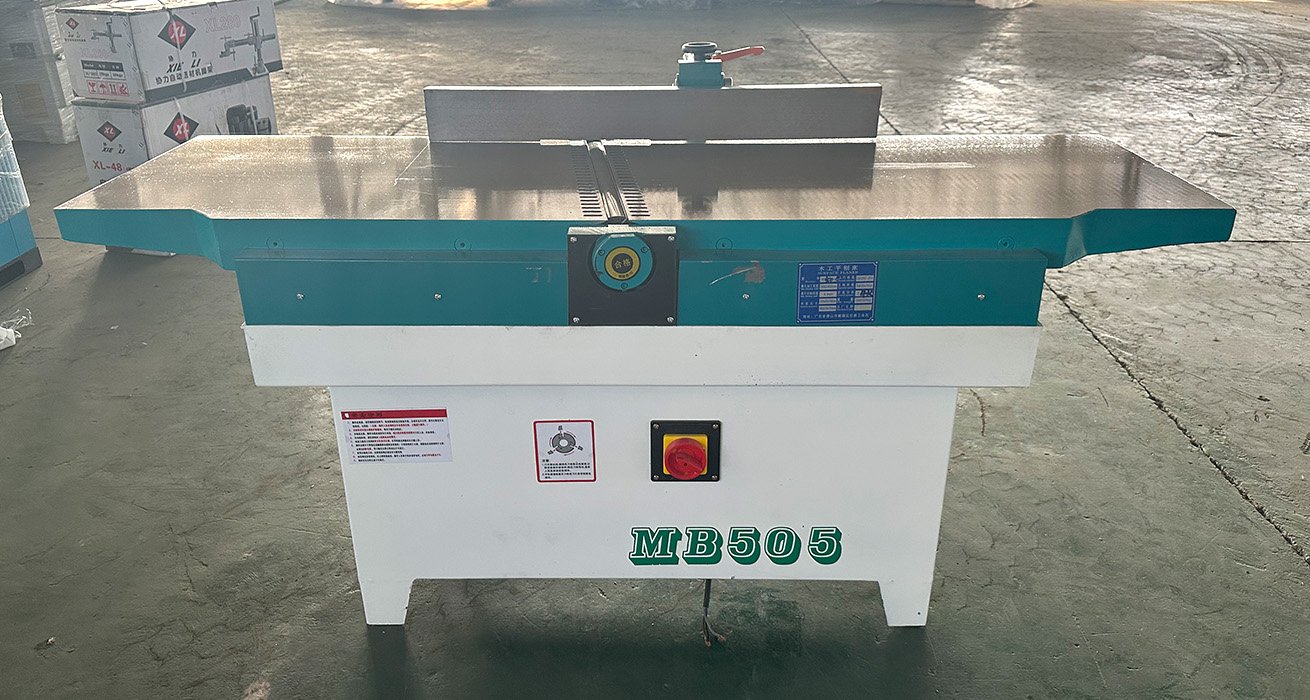

Wood planing machine
-

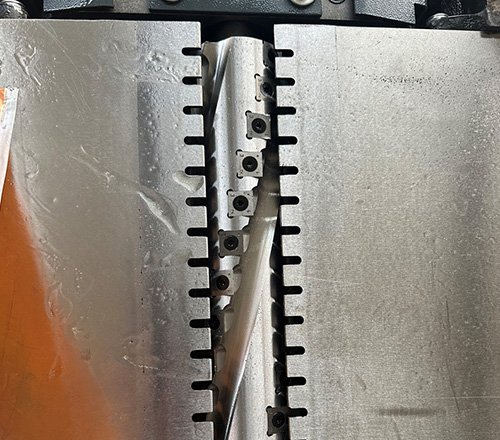

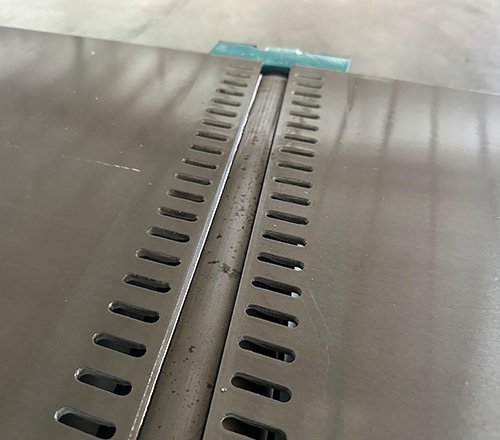

Straight cutter Shaft
-

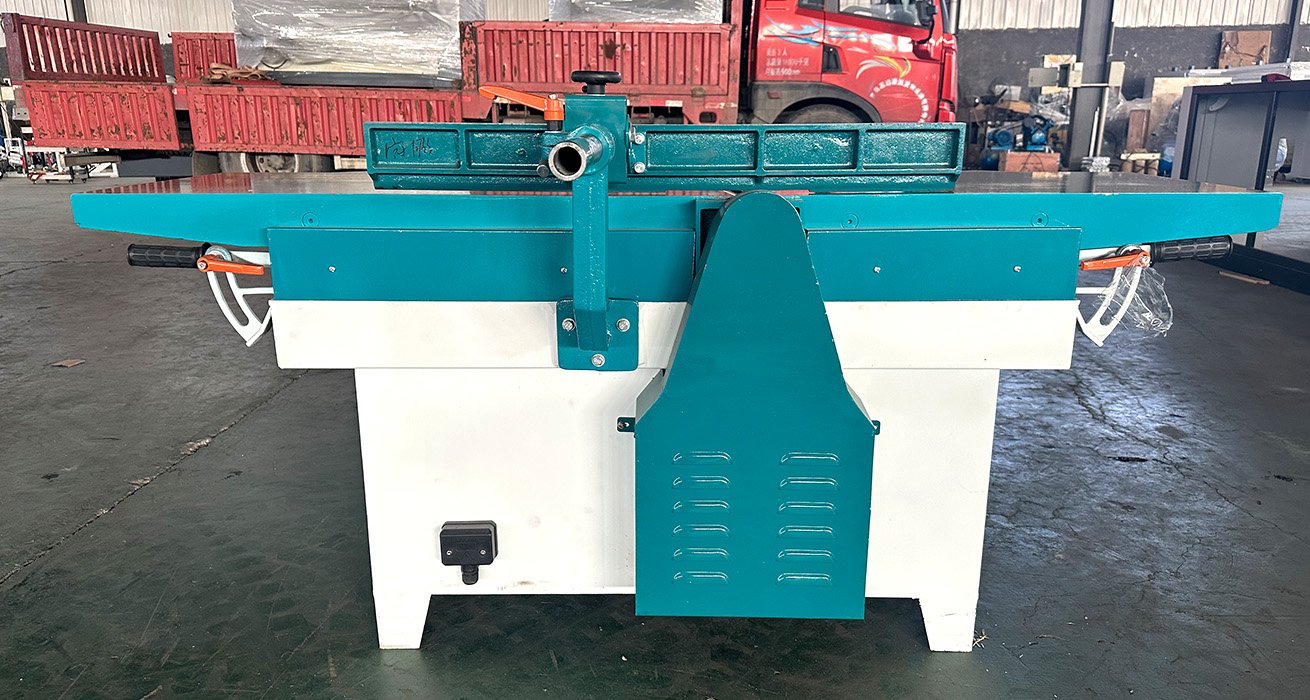

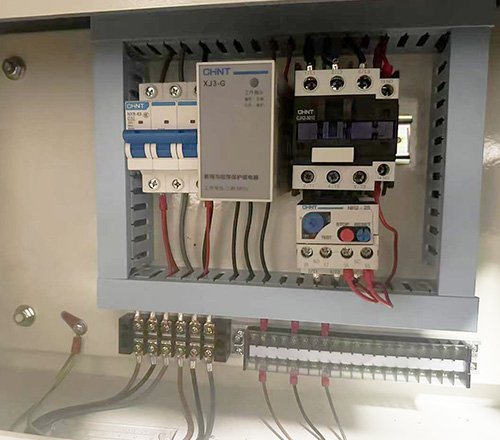

Electrical box
-

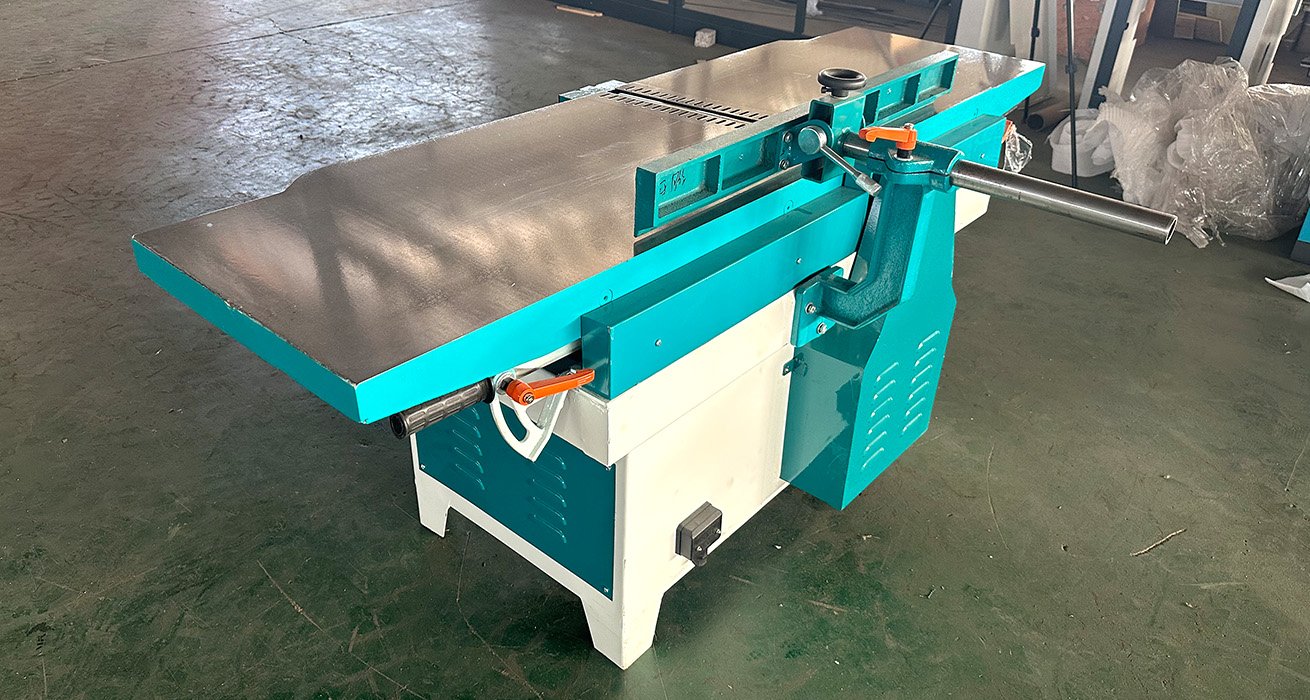

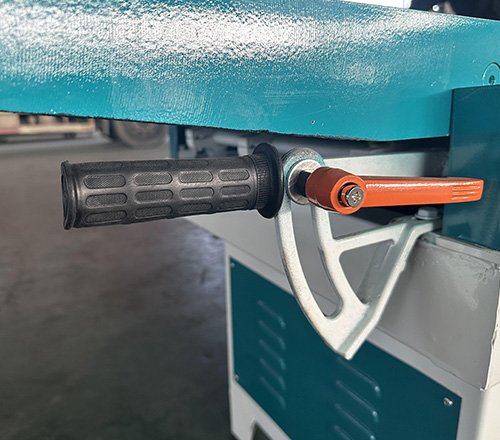

Adjustment of table planing thickness
Optional Accessories | |
![]() | ![]() |

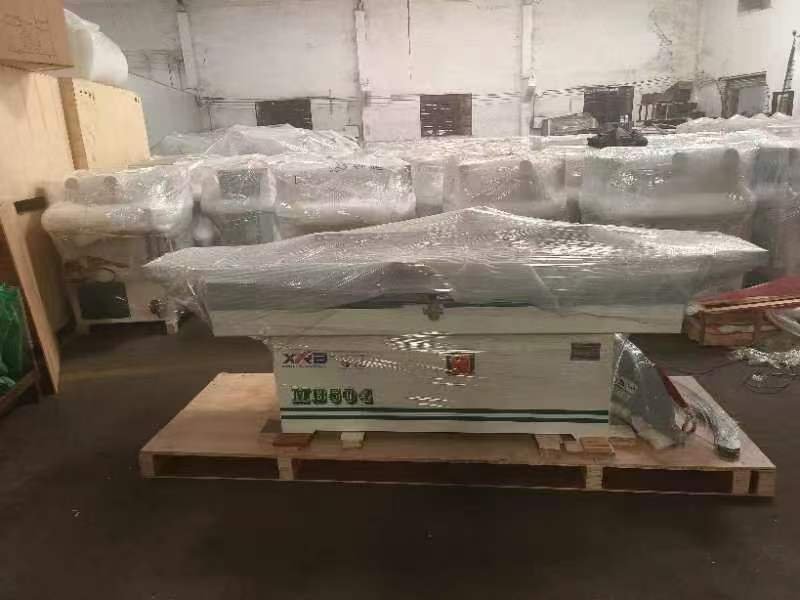

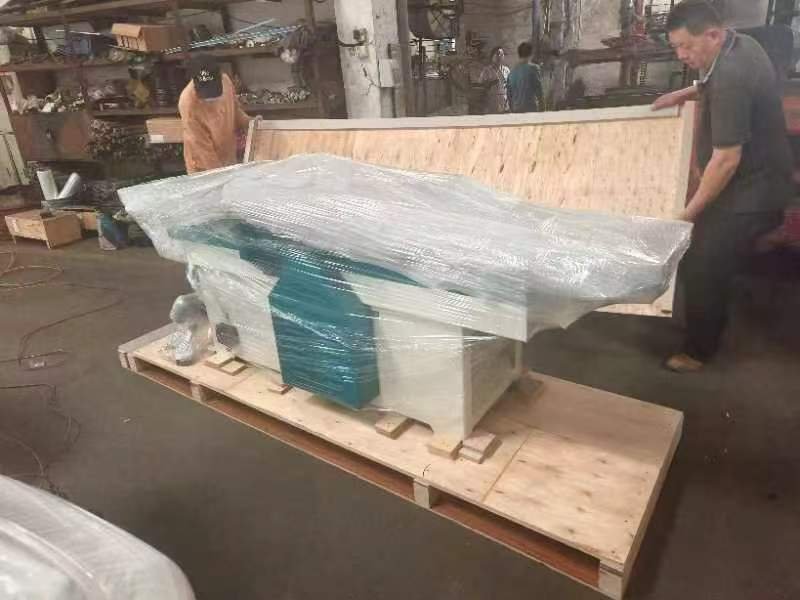

Packaging Photo | |
![]() | ![]() |
Product Processing | |
![]() |
