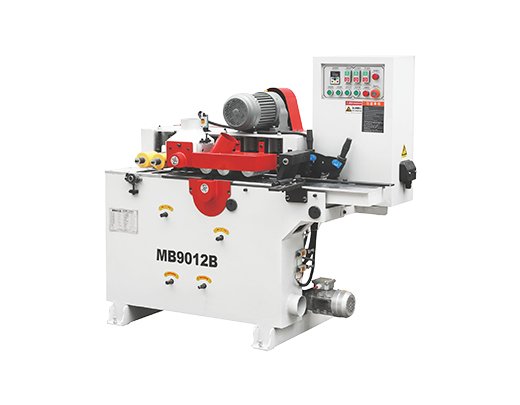

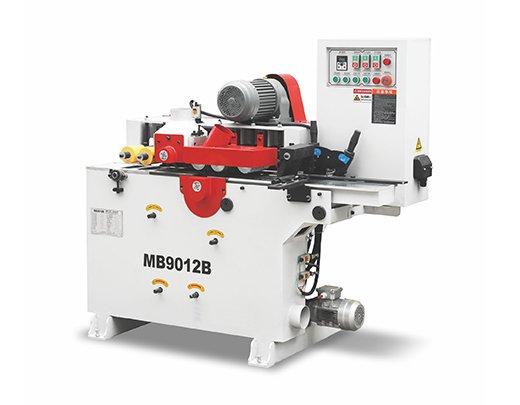

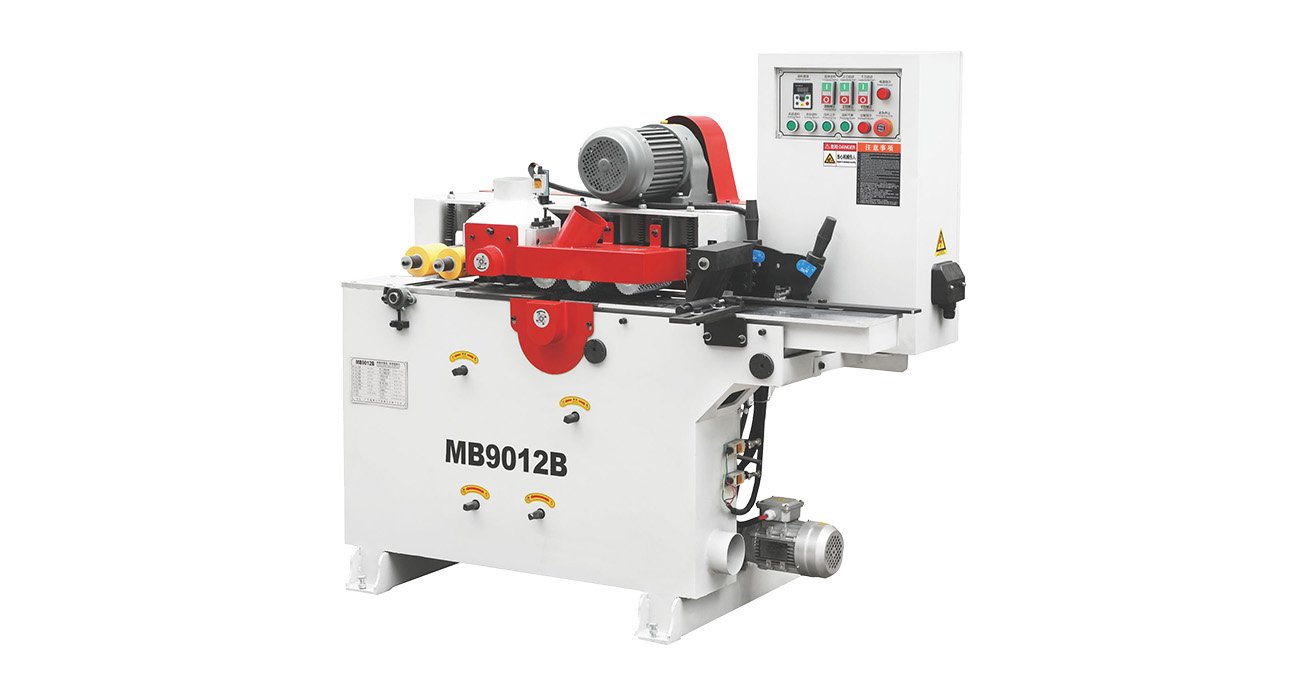

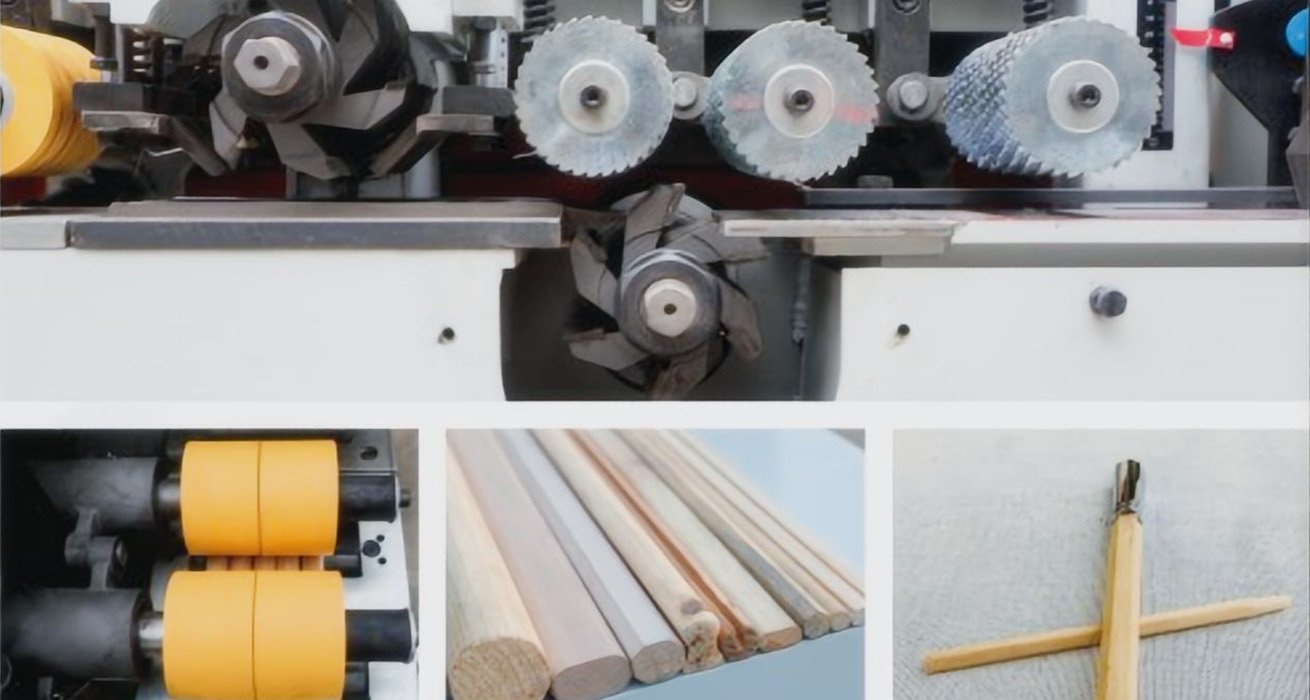

MB9012B round bar machine
One feed to complete multiple round rod processing, improve production efficiency High flexibility, can be customized according to the needs of a variety of molding knife, easy to produce a variety of shape round rod
Equipped with emergency stop button, anti-rebound device, etc., to ensure safe operation process Widely used in furniture making,wooden crafts, wooden handles and other industries.
Inquire now
+Add to cart
+Product Details
Reviews
Inquiry
Products Recommended
Product Details
| Maximum working length | 6000mm |
| Minimum working length | 300mm |
| Maximum working width | 120mm |
| Minimum working width | 10mm |
| Maximum machining thickness | 60mm |
| Minimum machining thickness | 6mm |
| Feeding motor power | 1.5kw |
| Feed rate | 4-20m/min |
| Gross power | 12.87kw/16.87kw |
| Ffirst tool shaft motor | 5.5kw/7.5kw |
| Second upper tool shaft motor | 5.5kw/7.5kw |
| Feeding motor power | 0.37kw |
| Spindle speed | 8500r/min |
| Maximum tool diameter | φ120mm |
| Spindle diameter | 中30mm |
| Diameter of the suction port | φ100mm |
| Overall dimension | 1435x760x1355mm |
| weight | 680kg |
-

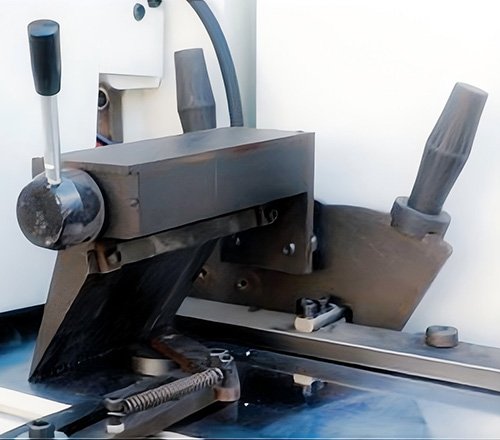

Anti-rebound device
-

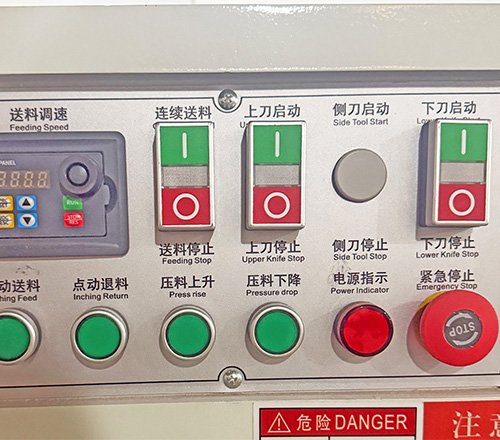

Control panel device
-

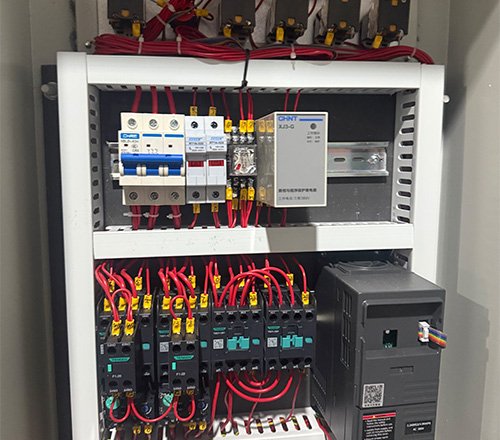

Electrical Box
-

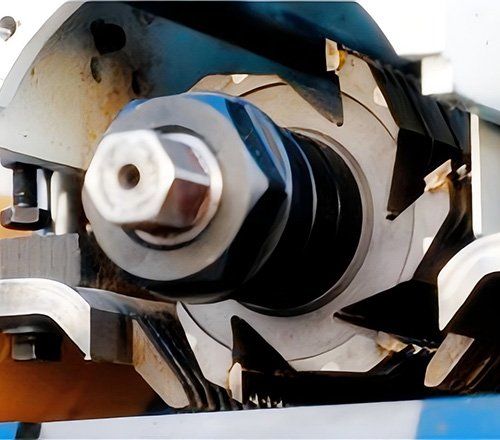

Forming tool device
-

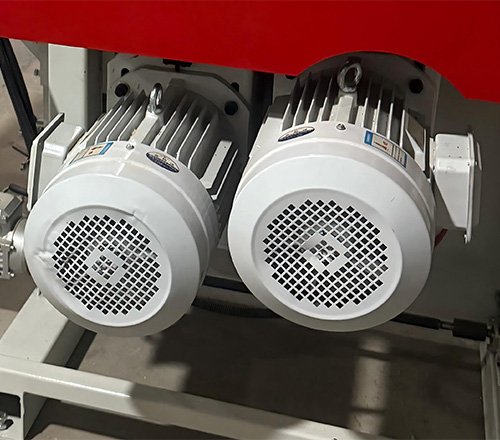

High precision spindle motor
-

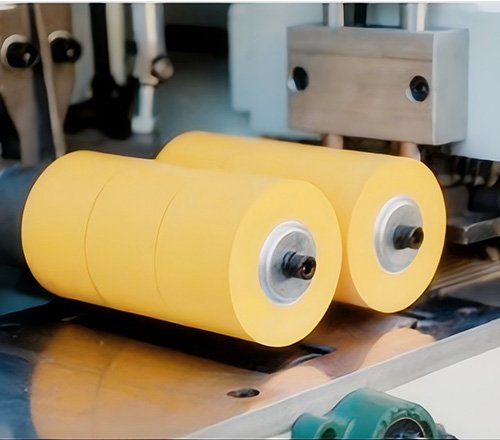

Rubber wheel device
-

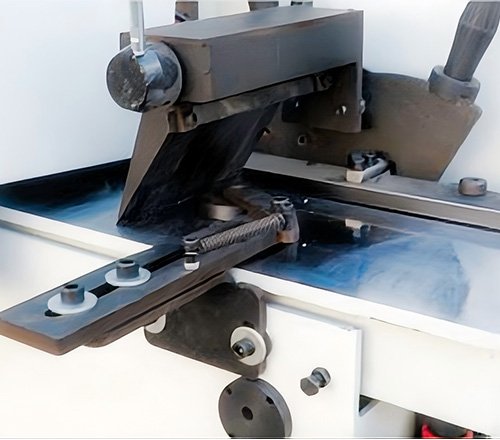

Side feeding device
-

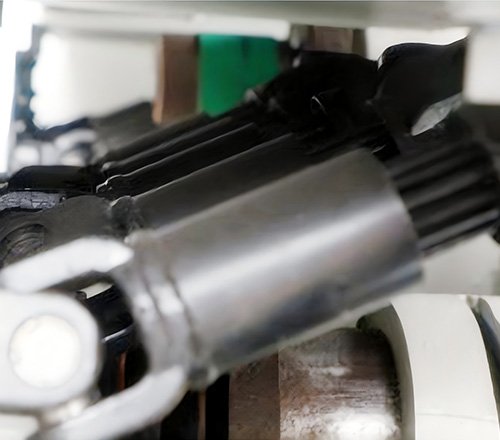

Universal joint device

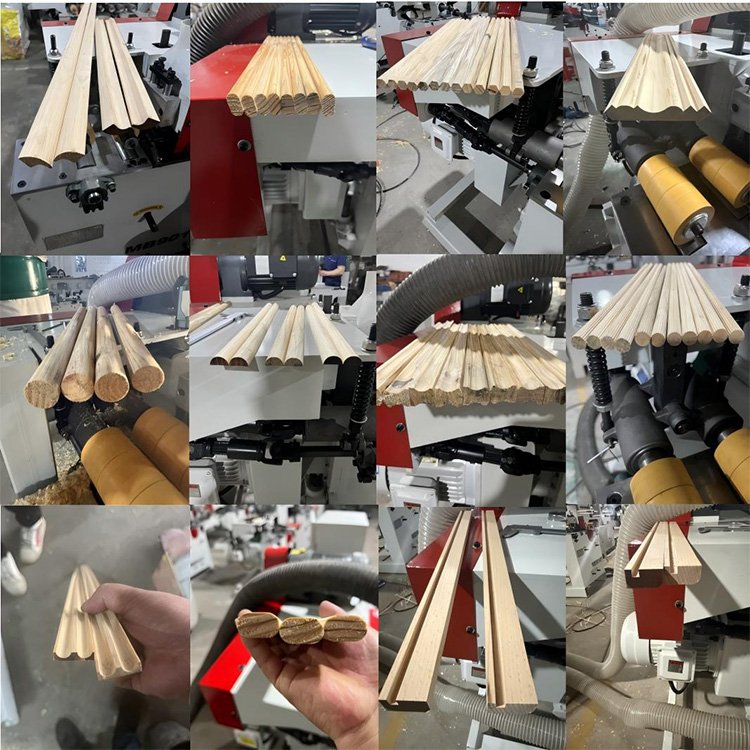

Product Processing | |
 |
