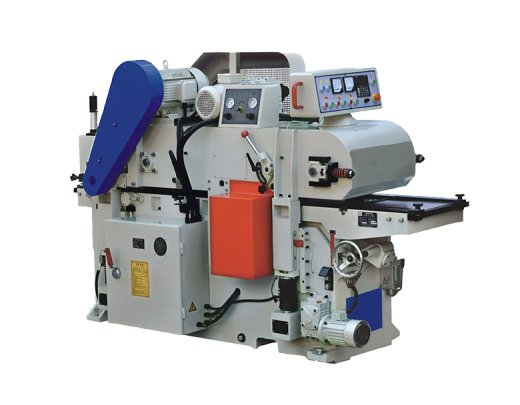

Double Sided Planer

- Double Sided Planer

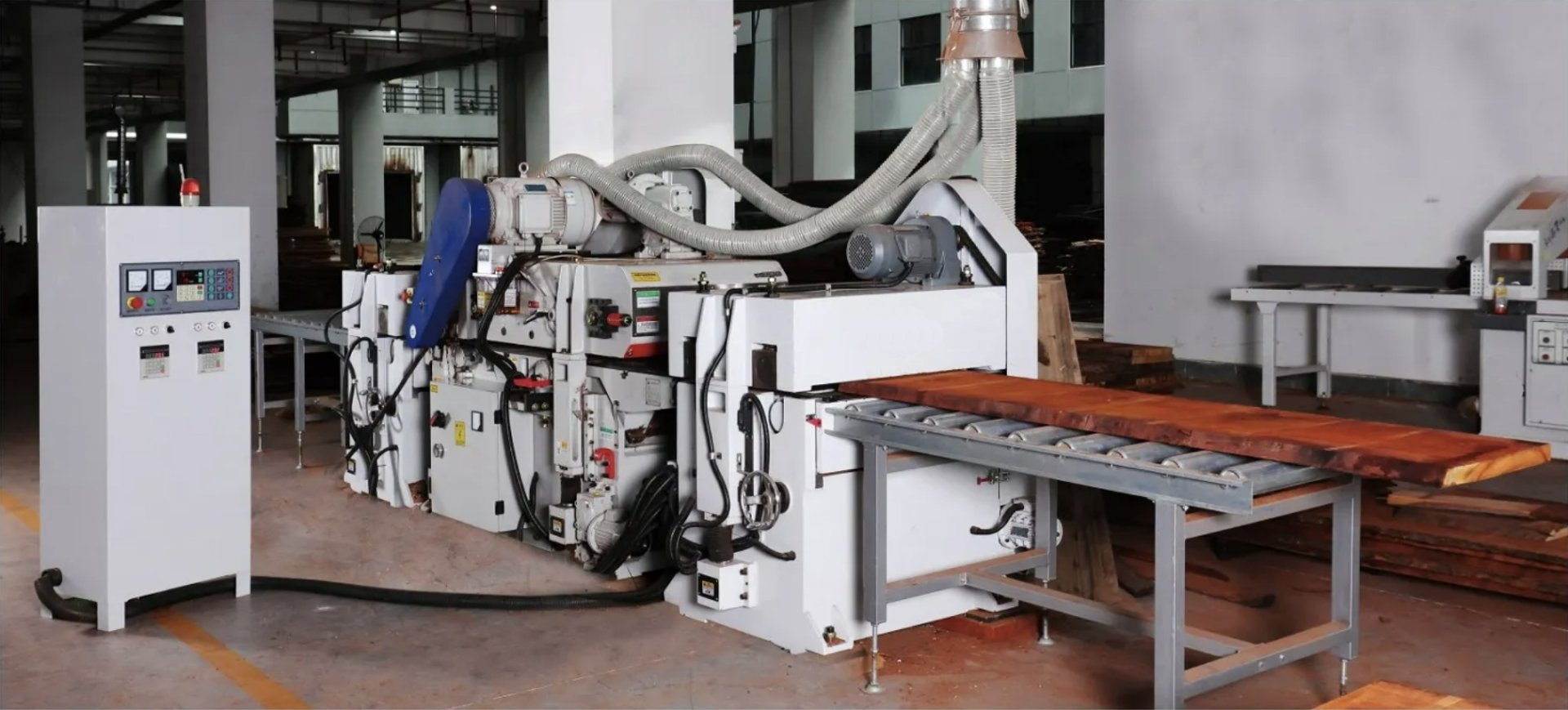

According to the special requirements of users, we can customize the professional equipment for double-cutting and widening 630-thickness 150and 700-inch large wooden boards. lt can synchronize with the three-machine linkage (frequency control) and synchronously raise and lower! Feeding is strong and stable. t can also be operated separately by three machines, with excellent performance and won wide acclaim from users.

Inquire now

Add to cart

Product Details

Reviews

Inquiry

Products Recommended

Product Details

With good shock-absorbed quality, a stable iron casting lathe, and a numeral-controlled processing center that can process all materials once, it is good for knifes spindle and feeding.

The main spindle is processed specially and the other imported spindles with highprecision can well support the whole machine.

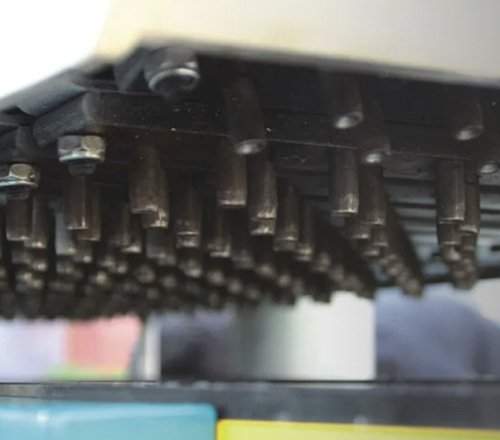

With elastic pedrail scratcher (optional in functions): the pressed distance of the elastic scratchers can be chosen according to the thickness and curvature of the wood so as to increase the processing precision and strengthen the feeding.

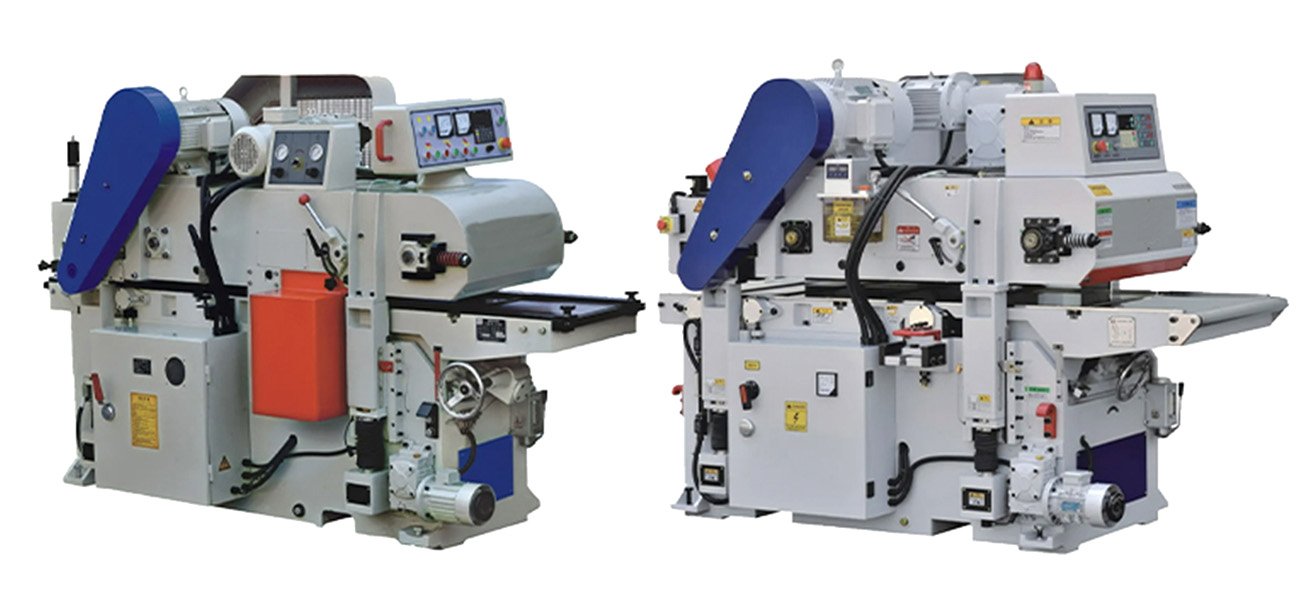

Main technical data	MB204F	MB204H	MB206F	MB206H
Working width	410mm	410mm	610mm	610mm
Working thickness	200mm	200mm	200mm	200mm
Min working length	260mm	260mm	260mm	260mm
Max cutting depth(upper spindle)	8mm	8mm	8mm	8mm
Max cutting depth(bottom spindle)	5mm	5mm	5mm	5mm
Tool cutting circle diameter	φ101mm	φ101mm	φ101mm	φ101mm
Spindle speed	5000r/min	5000r/min	5000r/min	5000r/min
Feed speed	4-16m/min	0-16m/mim	4-16m/min	0-16m/mim
Upper &bottom spindle motor	7.5/7.5kw	7.5/7.5kw	11/7.5kw	11/7.5kw
Feed motor	2.2kw	2.2kw	2.2kw	3kw
Machine weight	2100kg	2450kg	2500kg	2800kg

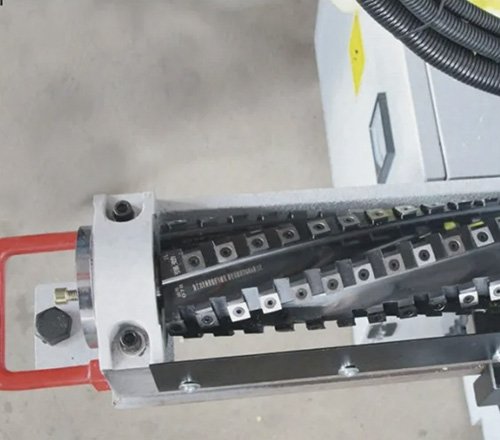

Spiral cutter shaft

Pull the knife shaft quick change tool, cutting tool replacement correction is convenient, quick, Security.

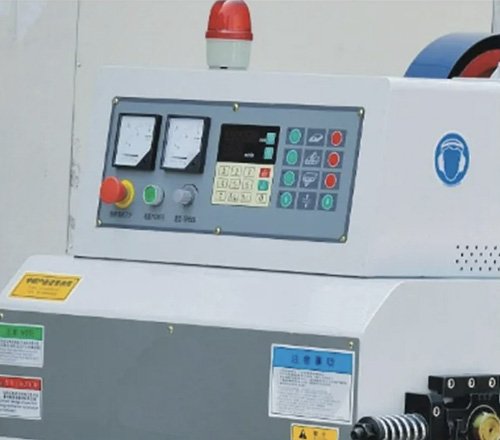

Frequency control

Select the frequency converter frequency control of the brand inverter, and choose the feeding speed according to the actual demand of the processed wood.

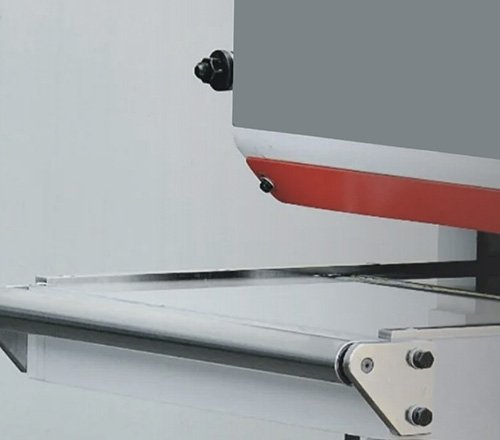

Processing station

Processing mesa adopts high hardness chromium plating processing, surface smooth level off,forever Wear-resisting, hooks on both ends can be articulated transmission platform.

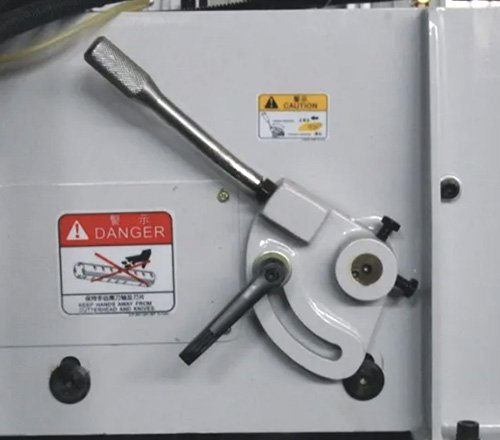

Feeding

The feeding unit can be adjusted upwards and downwards, the elevating range reaches10mm, and thus the processing precision can be enhanced with powerful feeding.

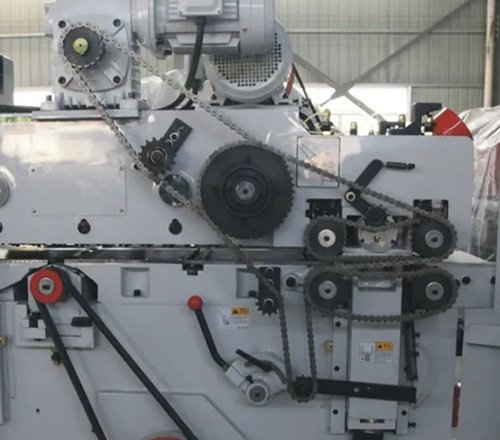

Overload protection

Provided with a driven feed roller structure, ensuring a stronger and smoother feeding. equipped with an overloading protection mechanism.
Short material processing

Equipped with a pressure plate guarantees short workpiece smooth machining increasing production output.
