Woodworking Surface Planer Jointer Description:High accuracy Processing of wood surface formation, wood can be inclined planing smooth. Professional bevel flat plane and flat-fell seam, Widely used in integrated materials processing, furniture factory, construction industry, wood mold processing and other enterprises.We provide more models of woodworking thicknesser planers, you can choose the thicknessing width with 250, 300,400, 500, 600, 630mm Except flat planer, we also provide automatic feeding flat planer ,four sides planer and Straight mouth planer.
Inquire now
+Add to cart
+Product Details
Reviews
Inquiry
Products Recommended
Machine name | Surface Planer/Wood Jointer | |||
Model | MB503 | MB504 | MB505 | MB506 |
Max.working depth | 3mm | 3mm | 4mm | 4mm |
Max.working width | 300mm | 400mm | 500mm | 600mm |
Spindle speed | 5600r/min | 5600r/min | 5600r/min | 5600r/min |
Knife shaft quantity | 3pcs | 3pcs | 3pcs | 3pcs |
Motor power | 2.2kw | 3kw | 4kw | 4kw |
Motor speed | 2840r/min | 2840r/min | 2840r/min | 2840r/min |
Weight | 230kg | 280kg | 320kg | 360kg |
-

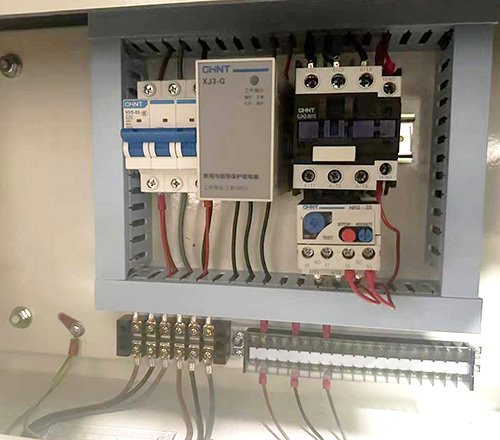

Electrical box
-

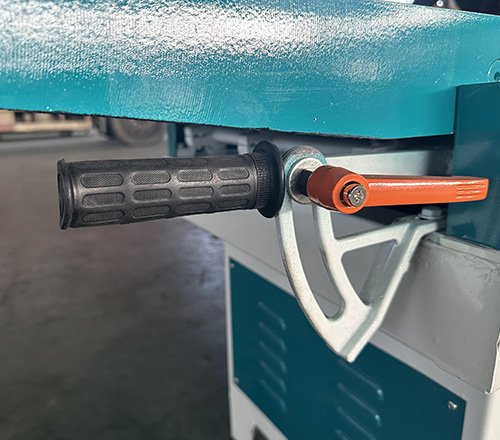

Adjustment of table planing thickness
-

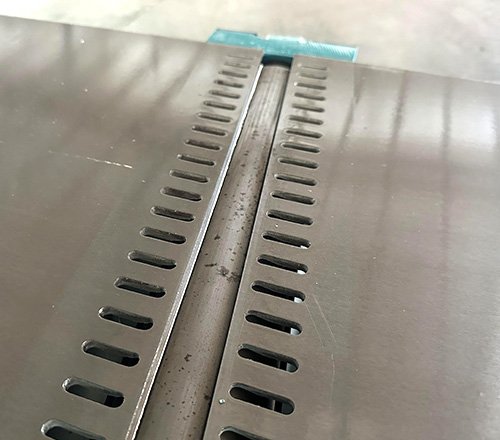

Straight cutter Shaft
-

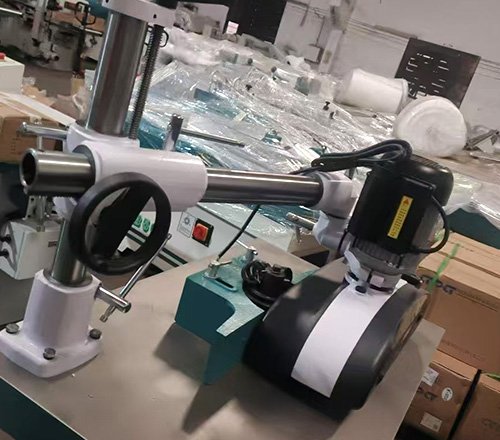

Automatic feeding device
Packaging Photo | |
![]() | ![]() |
Product Processing | |
![]() |
