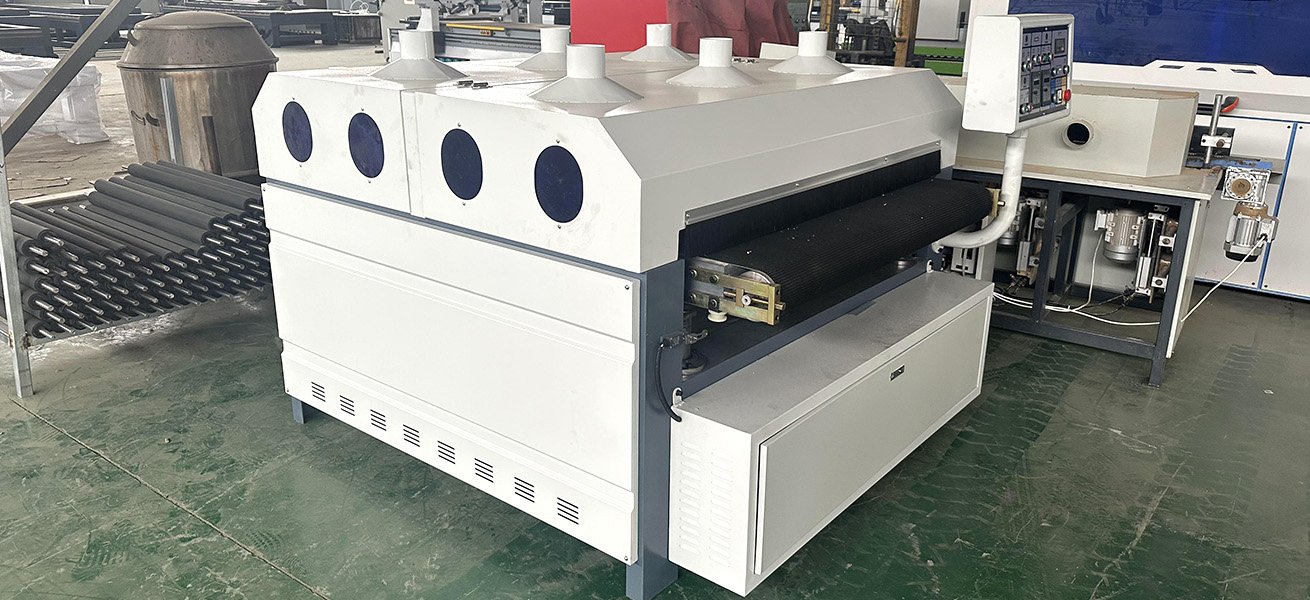

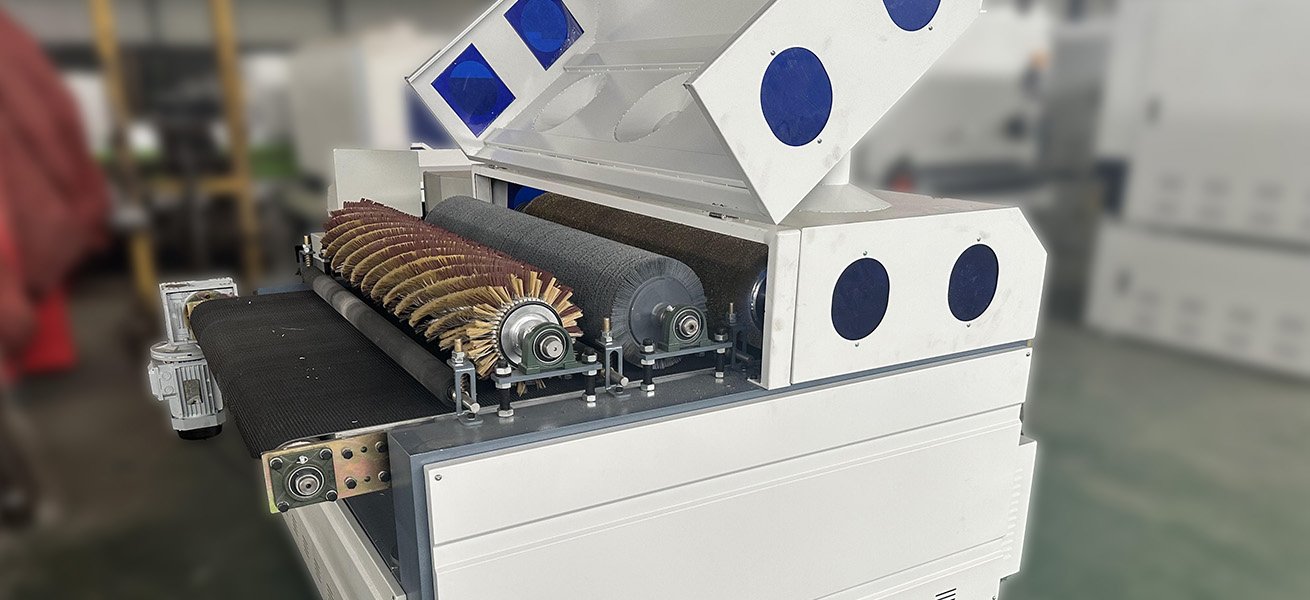

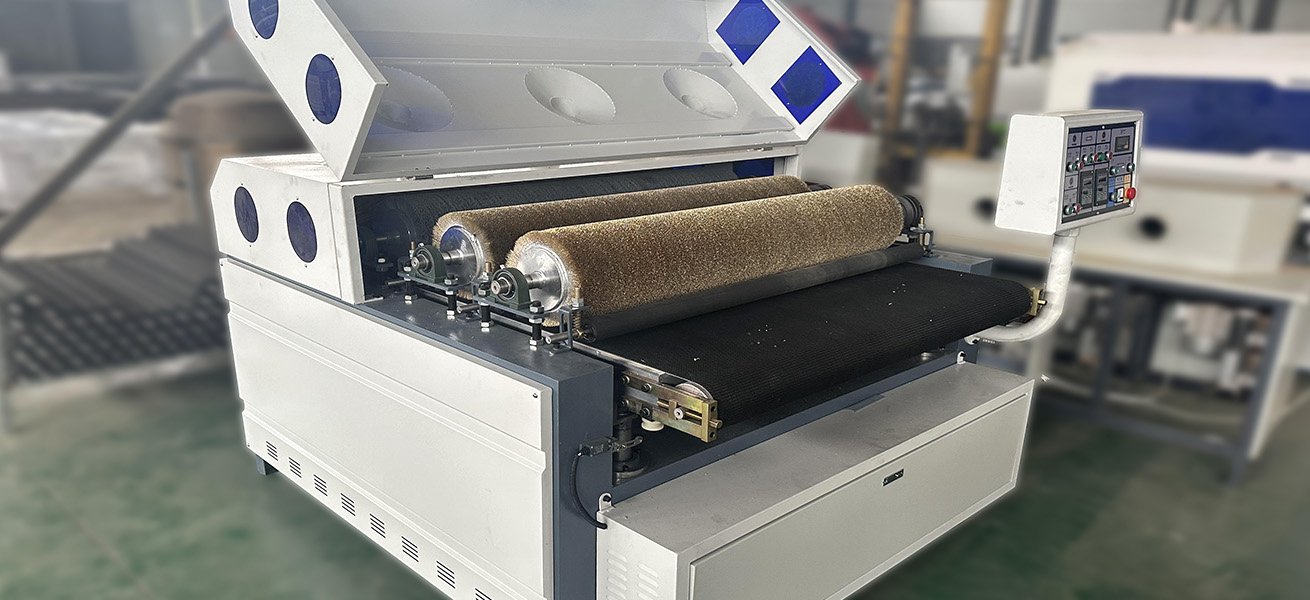

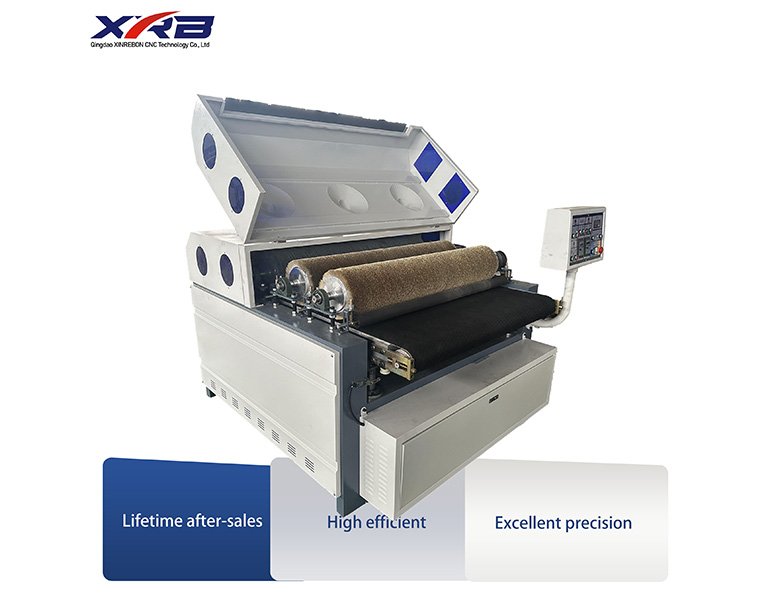

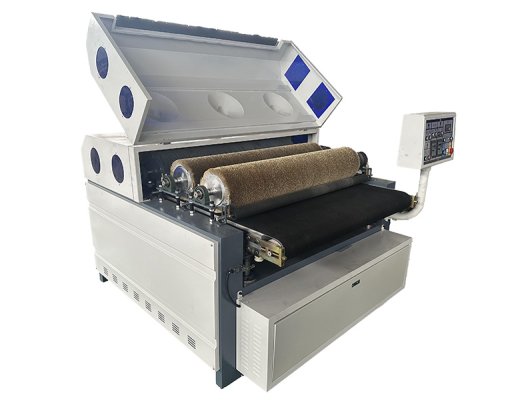

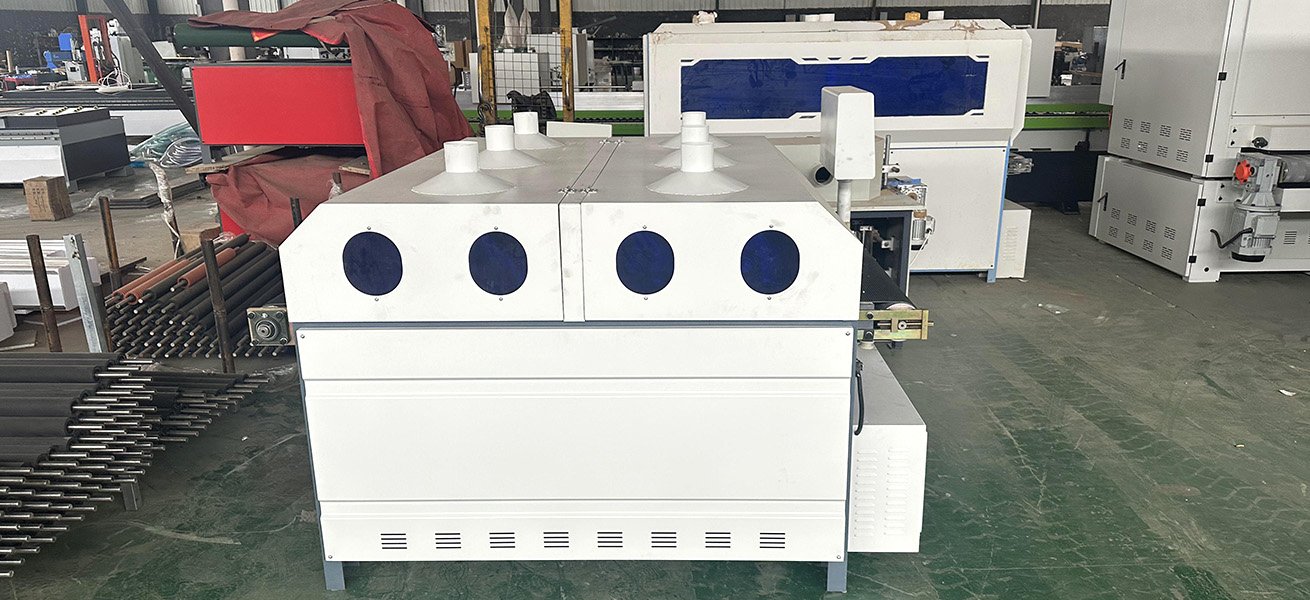

Steel Wire Roller Drawing Machine

- Steel Wire Roller Drawing Machine

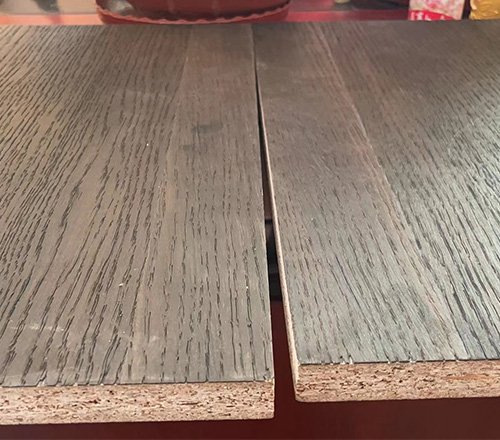

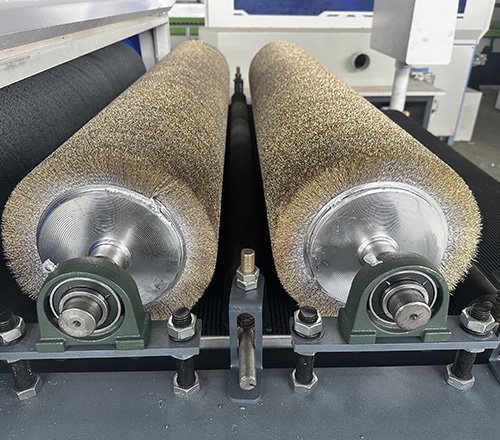

Wood brushing process is a surface treatment process, is the wood board as the substrate, under the action of external force to make the wood surface texture, groove grain effect of the technology processing method. Can be used for all kinds of oak, pine, elm, veneer and other wood products antique old open paint process. Can also be used for soft metal products such as aluminum products, copper products, etc. surface polishing, de-oxidation, adhesion and other process production Wire rollers are made of high-strength, wear-resistant, bending-resistant carbide wire, which is not only flexible, but also wear-resistant and deformation-resistant, with a thickness of 0.1-0.6.

Inquire now

Add to cart

Product Details

Reviews

Inquiry

Products Recommended

Product Details

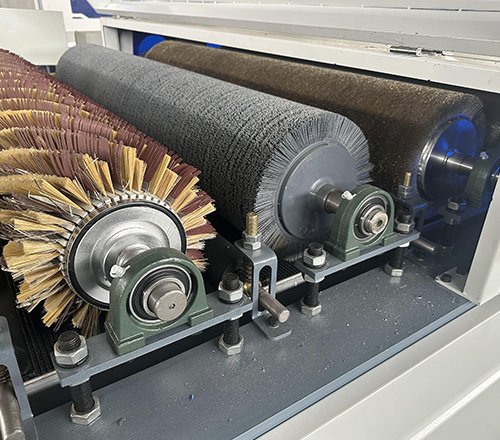

Deburring Dupont wire is used to clean up the burrs produced after wire drawing. It is made of imported synthetic materials and has a good polishing effect. Coarse and fine optional 80 mesh-320 mesh according to the product work freely with Spiral sisal polishing roller using high-quality natural plant sisal as bristles can completely solve the road The problem of static electricity in the turn, and good dust removal effect, with imported sand coarse strip to polish the surface of the plate after brushing to make its surface more smooth and delicate can be directly sprayed primer.

Models	630-4	1000-4	1300-4
Configuration table	Two drawing rollers one Dupont wire one sisal wire thickness 0.20.30.40.5 0.6 arbitrary with Dupont wire 180/240/320 polishing wheel 180/240/320 diameter 260	Two drawing rollers a DuPont a sisal steel wire 0.20.30.40.50.6 arbitrary with DuPont wire 180/240/320 polishing wheel 180/240/320 diameter 260	Two drawing rollers one Dupont wire one sisal 0.2 0.30.40.50.6 Random matching steel wire Dupont wire 180/240/320 Polishing wheel 180/240/320
Size	230012001400mm	230015001400mm	23001900/400mm
Power	13KW	16KW	22KW
Rotational Speed	Wire drawing rollers 880 rpm,polishing rollers 0-800	Wire drawing rollers 880 rpm,polishing rollers O- 800	Wire drawing rollers 880 rpm,polishing rollers O- 800
Processing width	0-630mm	0-1000mm	0-1300mm
Processing thickness	Conventional 1-100mm,can be customized individually	Conventional 1-100mm, can be customized individually	Conventional 1-100mm, can be customized individually
Conveying speed	200-500m	200-500m	200-500mm
All models can be customized according to customer's wishes
