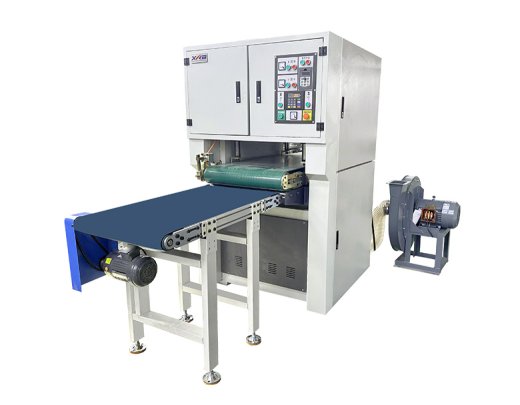

- R-RP' Wide Belt Sanding Machine
Wide belt sanding machine is suitable for calibrating and fine sanding laminate lumber, composite board, particle board, solid wood, panel furniture, bamboo floor, wood door, veneer board, MDF board, fibre board and etc. It is one of the necessary equipment for integrated wood and furniture manufacturing.
Inquire now
+Add to cart
+Product Details
Reviews
Inquiry
Products Recommended
Product Details

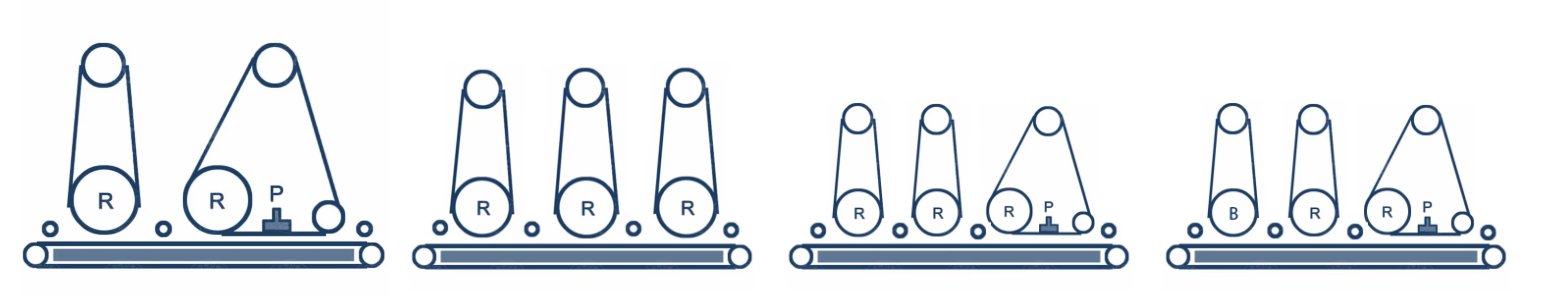

Internal structure can be customized
| Model | R-RP630 | R-RP1000 | R-RP1300 | |
| First motor power | 11kw | 22kw | 30kw | |
| Second motor power | 7.5kw | 15kw | 22kw | |
| Maximum processing width | 630mm | 1000mm | 1300mm | |
| Processing thickness | 3-100mm | 3-100mm | 3-100mm | |
| Abrasive belt size | 650*1920mm | 1020*2200mm | 1320*2200mm | |
| Transmission motor power | 1.5kw/Stepless speed | 1.5kw/Stepless speed | 4kw/Stepless speed | |
| Working air pressure | 0.6-0.8 mpa | 0.6-0.8 mpa | 0.6-0.8 mpa | |
| Conveying speed | 2-28m/min | 2-28m/min | 2-28m/min | |
| Net weight | 1200kg | 1800kg | 3300kg | |
-

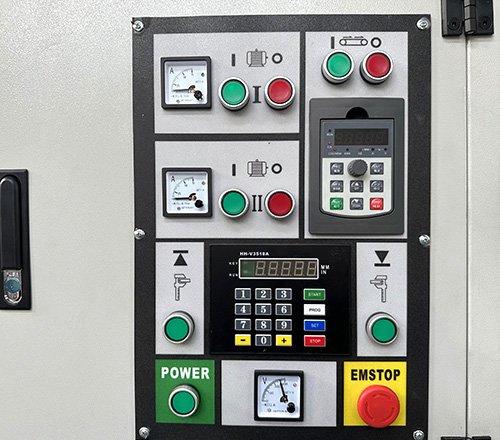

Control panel
-

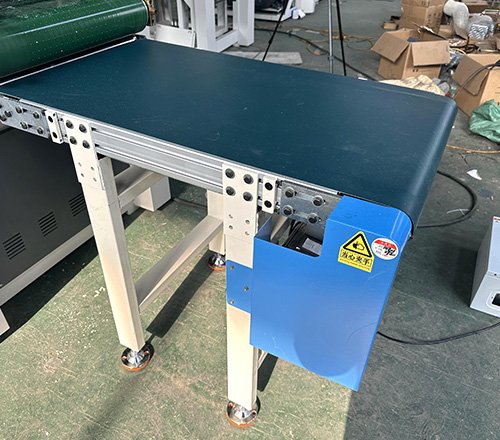

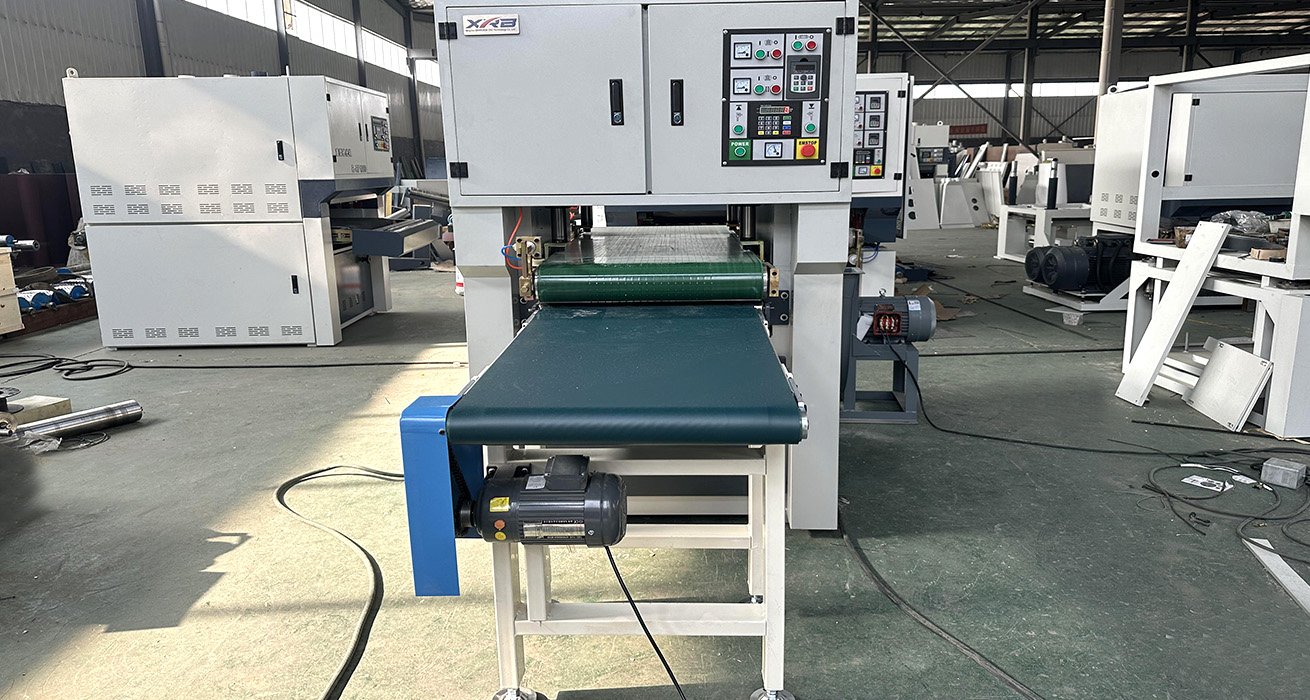

Conveyor table
-

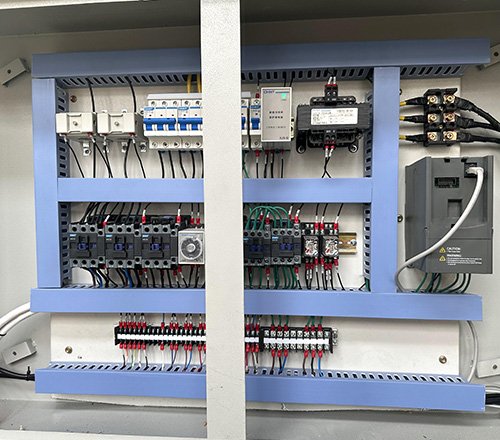

Electrical box
-

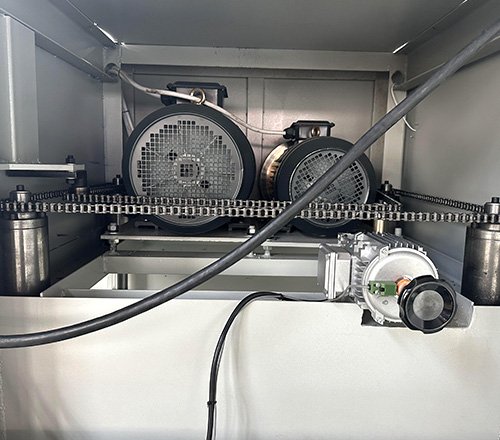

Pure copper motors
-

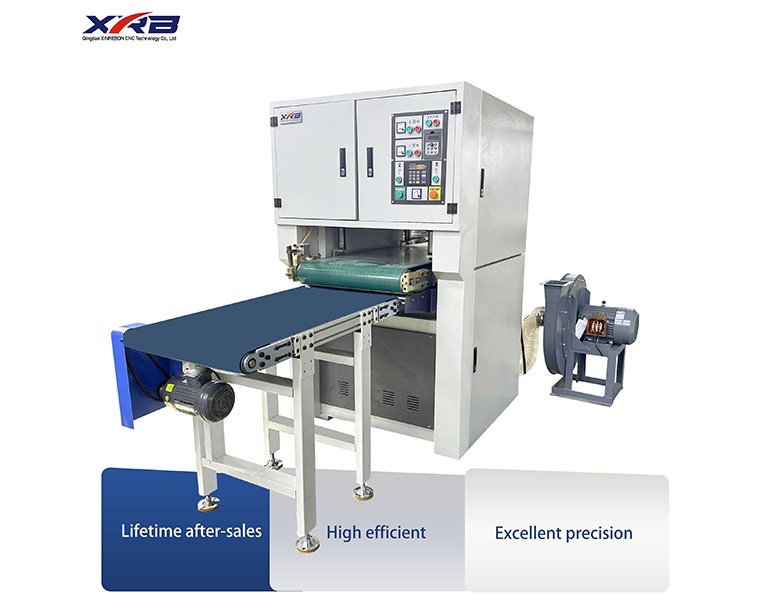

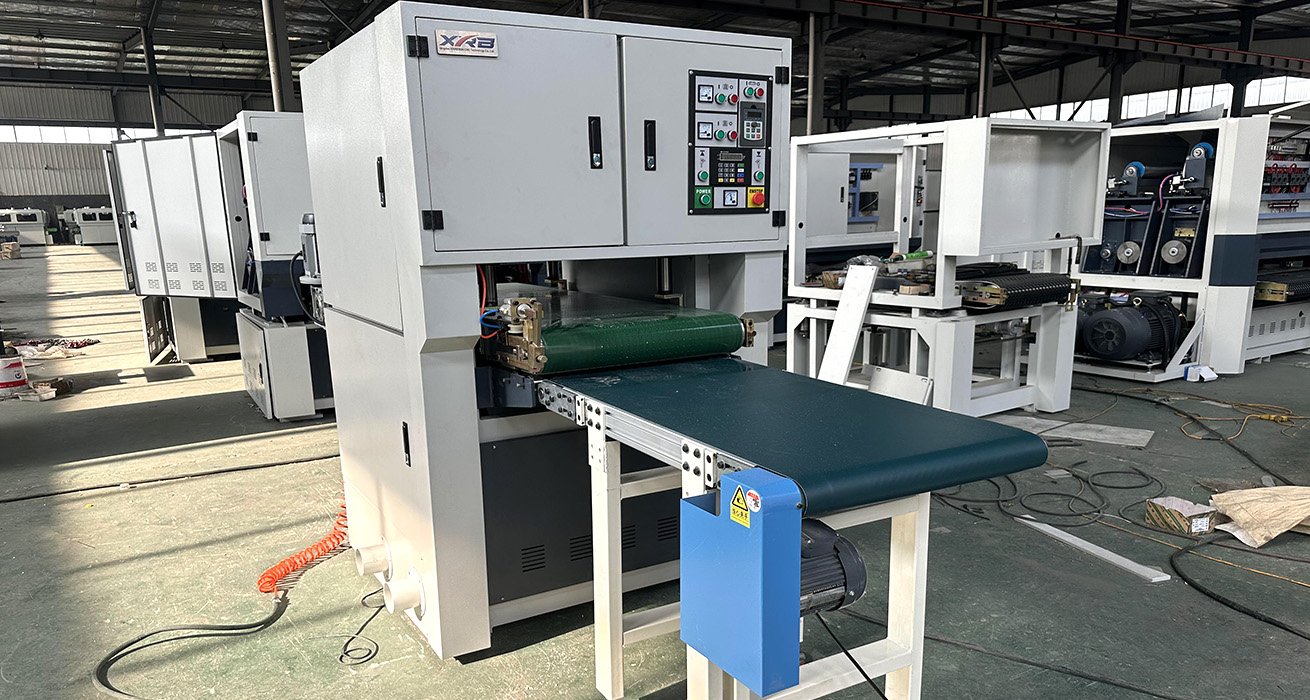

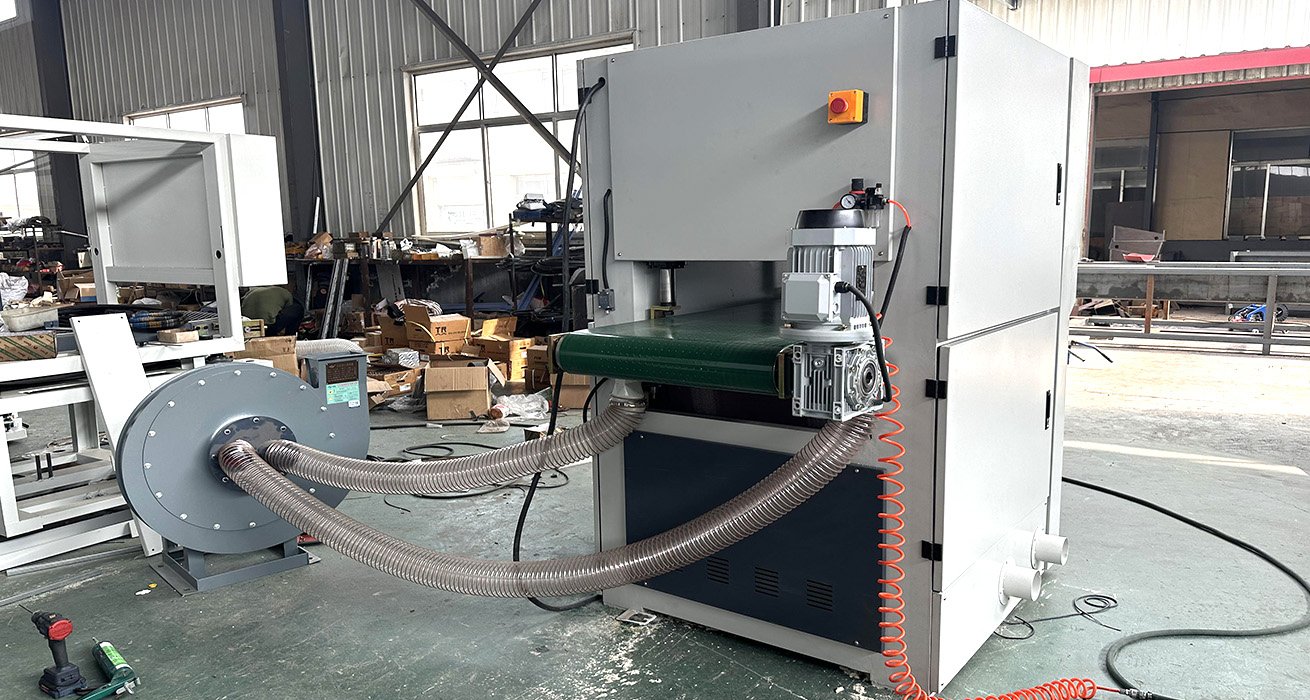

R-RP sanding machine

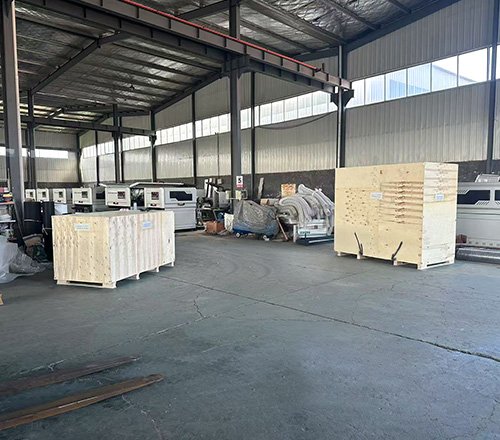

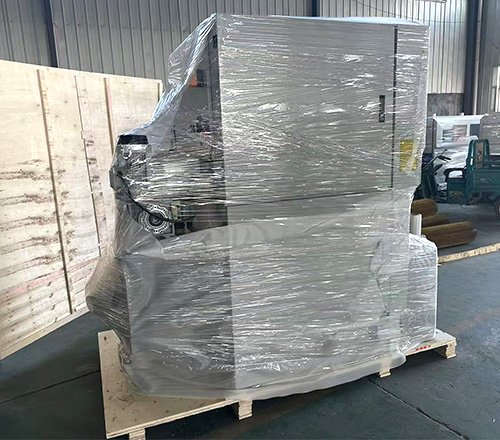

| Sanding Machine Wooden Box Packing | |
 |  |
