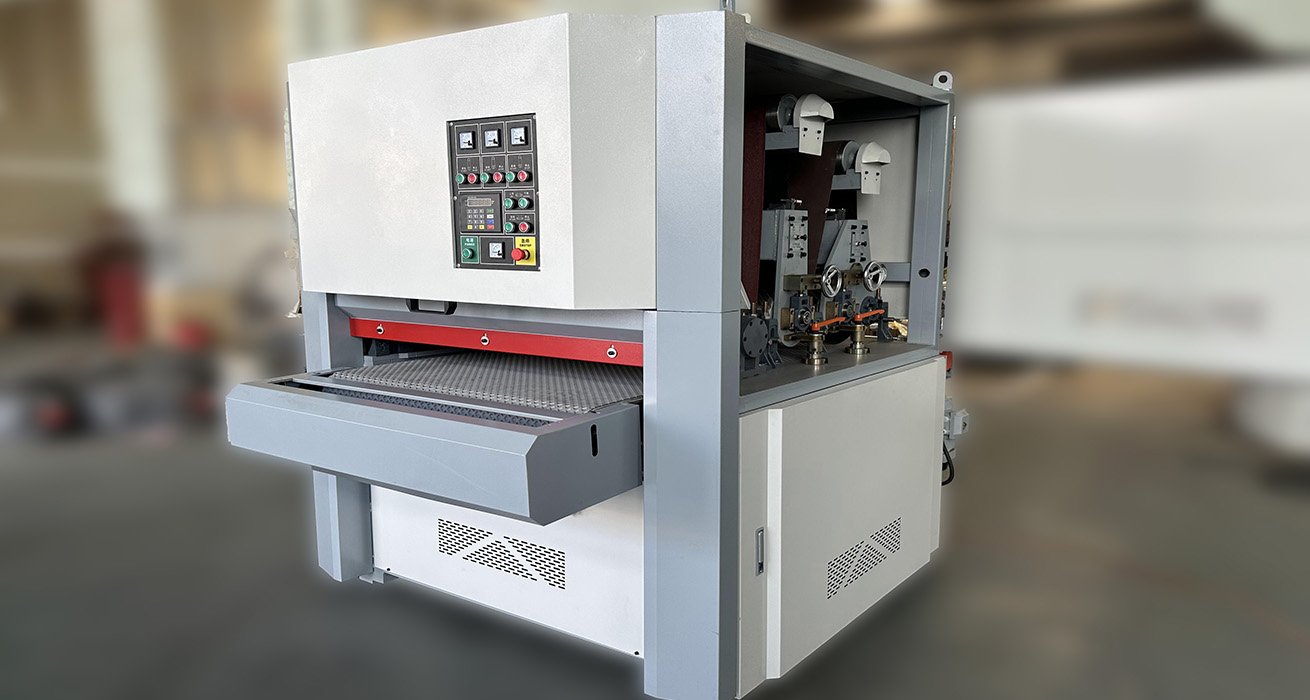

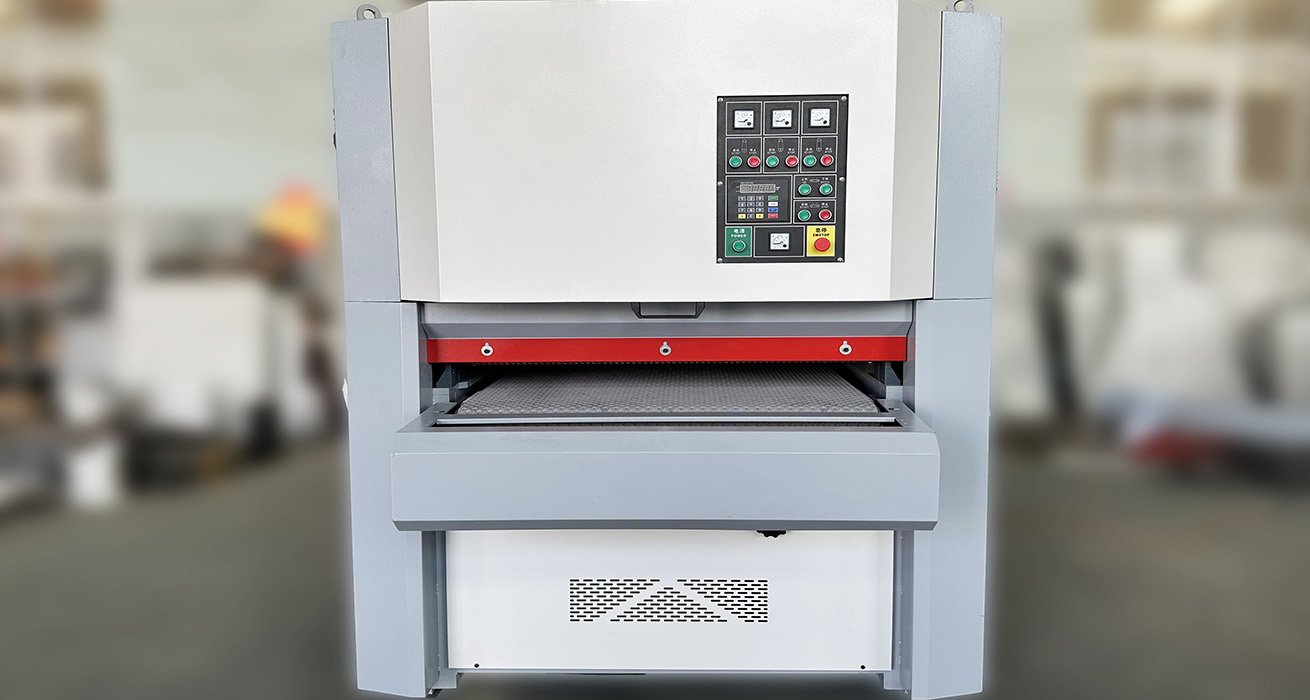

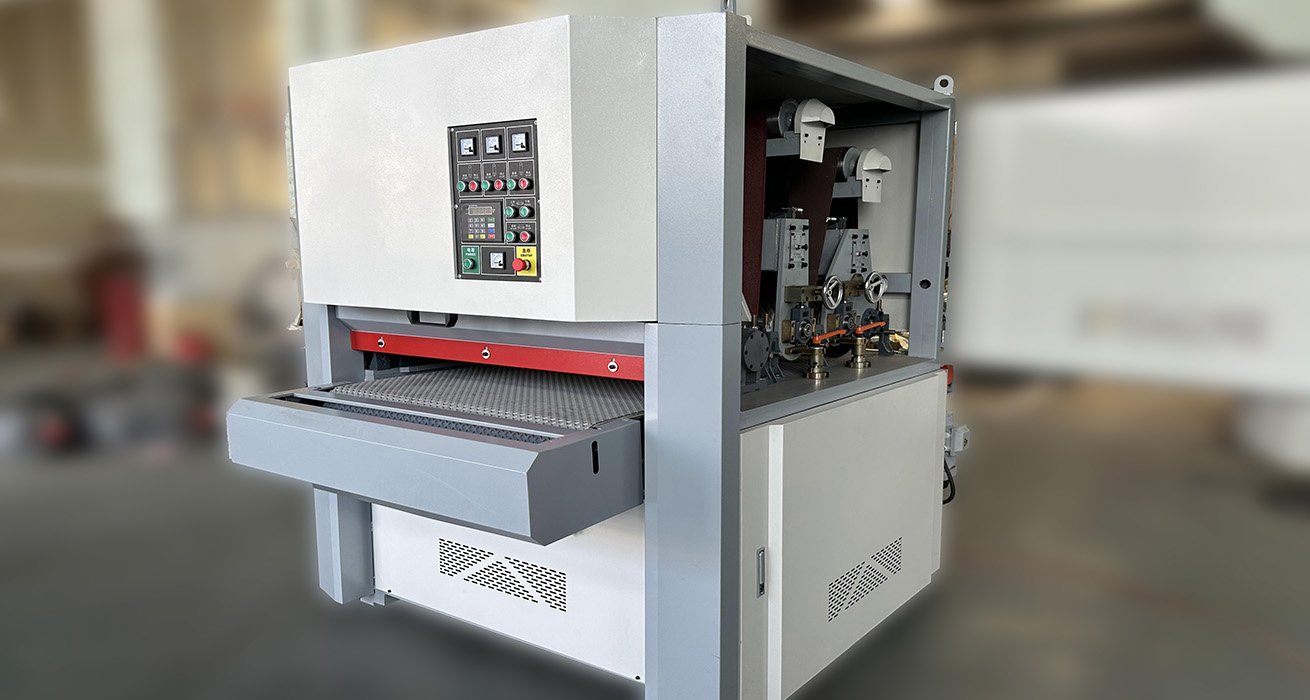

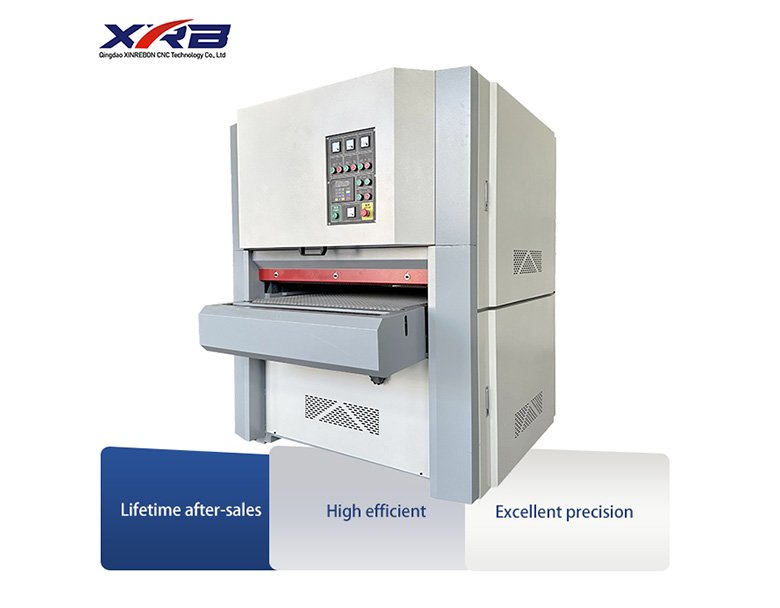

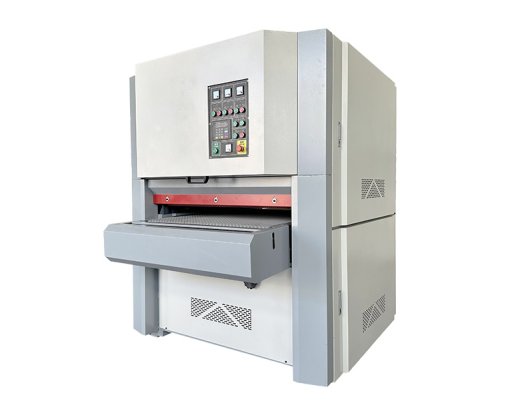

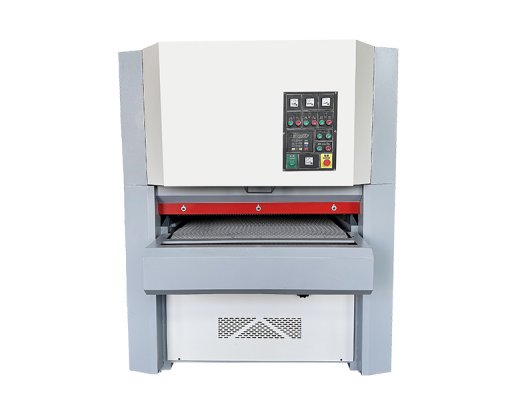

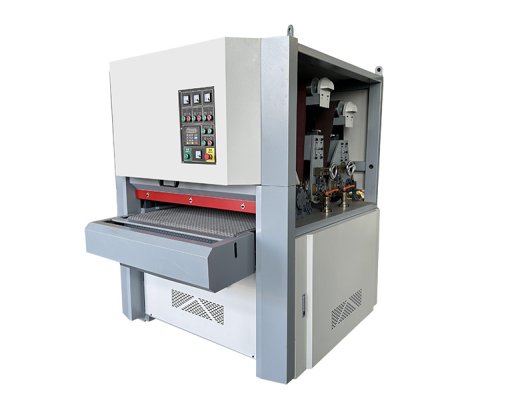

- B-R-RP' Planing Knives Sanding Machine
It is reasonable to match the planer roller and sander. The planer is generally used for sand planing of raw materials. The planer can remove 3mm at a time, without the effect of sanding, and the flatness is not as good as the sanding machine. The sanding machine sands 70-80 threads at a time. If you want to sand to 3mm, you need to sand 3-4 times, and the sanding machine can complete it. It is relatively slow. The combination of the two is a planing sander.
Inquire now
+Add to cart
+Product Details
Reviews
Inquiry
Products Recommended
Product Details
1. Imported planer roll, will be thick roll and soft roll (or a combination of sand frame), and then after the first plane sand polishing process, energy efficient.
2. With floating pressure boots, short sand material available.
3. Casting stop device is used to avoid rebounding and hurting the plate during processing.
4. Conveyor belt drive adopts variable-frequency helical gear worm reducer, more stable and reliable.
| Model | B-R-RP630 | B-R-RP1000 | B-R-RP1300 |
| 1 motor power | 11kw | 15kw | 22kw |
| 2 motor power | 11kw | 15kw | 37kw |
| 3 motor power | 7.5kw | 11kw | 22kw |
| Conveyor power | 1.5kw | 1.5kw | 4kw |
| Maximum processing width | 630mm | 1000mm | 1300mm |
| Processing thickness | 3-110mm (Customized) | 3-110mm(Customized) | 3-110mm (Customized) |
| Abrasive belt size | 650*1900mm | 1330*2200mm | 1330*2200mm |
| Working air pressure | 0.6-0.8 mpa | 0.6-0.8 mpa | 0.6-0.8 mpa |
| Conveying speed | 2-25m/min | 2-25m/min | 2-25m/min |
| Net weight | 2000kg | 3000kg | 4000kg |
-

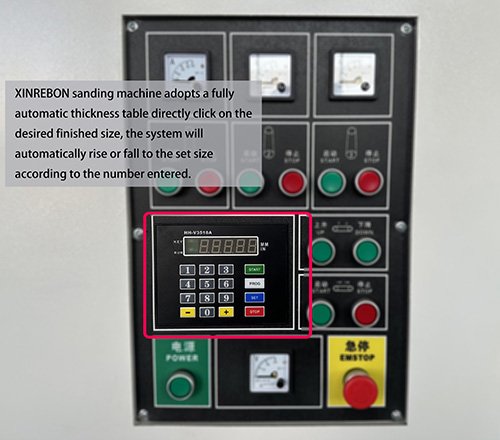

Control Panel
-
Motor
-

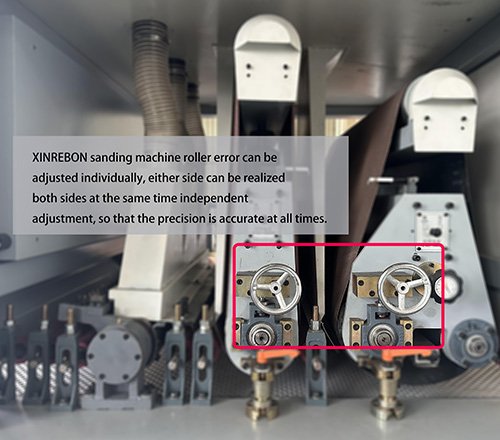

Adjust
-

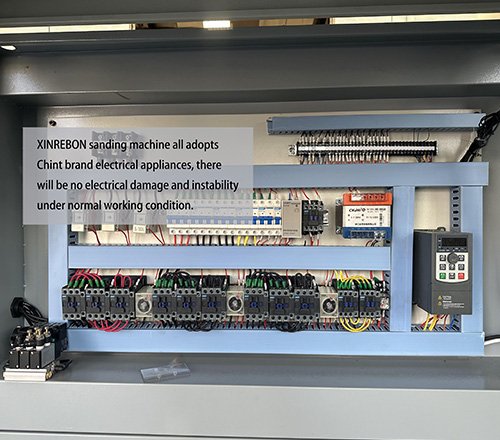

Electrical Appliances
