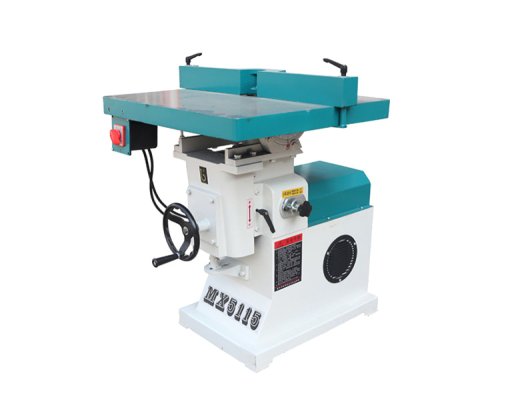

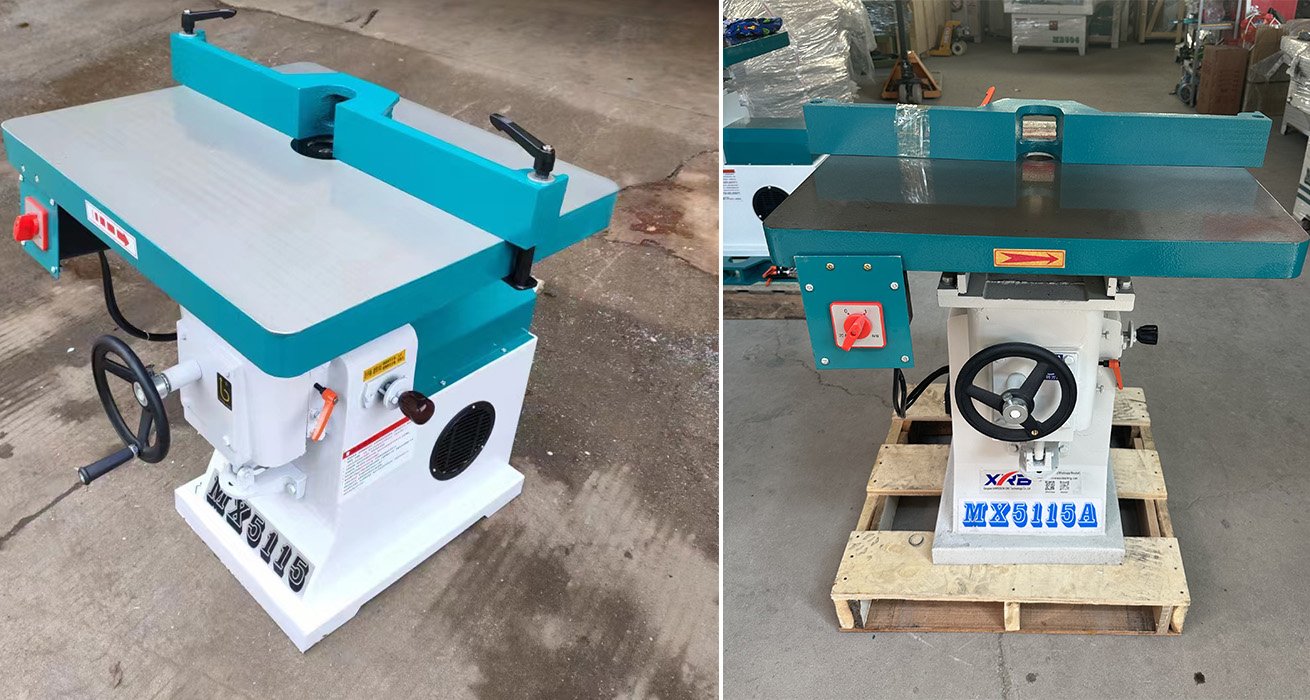

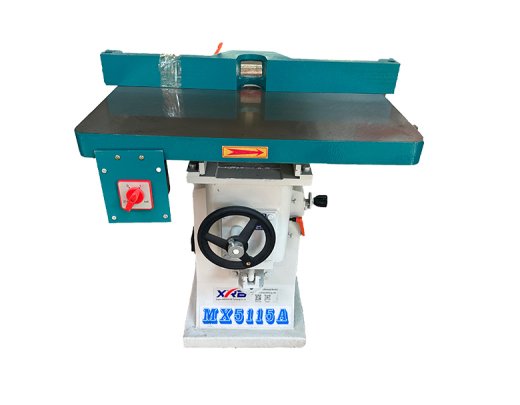

Wood shaper / spindle moulder / tenoner tooling / vertical milling machine MX5115A
Wood shaper is applied to milling planes, grooves, teeth, threads and spline shafts, milling machines can also process more complex curved surfaces,trimming with high efficiency and It can be used to install all kinds of boring and milling tools,chamfering the workpiece, cutting straight grooves, straight lines, sliding the table to the T-slot, etc. It is the first choice for solid wood,Acrylic and panel furniture.
Inquire now
+Add to cart
+Product Details
Reviews
Inquiry
Products Recommended
Product Details
| Model | MX5115A |
| Table size | 650*550mm |
| Max.processing depth | 50mm |
| Spindle speed | 18000r/min |
| Table tilt angle | 45° |
| Voltages | 380V/Custom |
| Motor power | 2.2kw/3kw |
| Dimension | 650*570*880mm |
| Weight | 155KG |
-

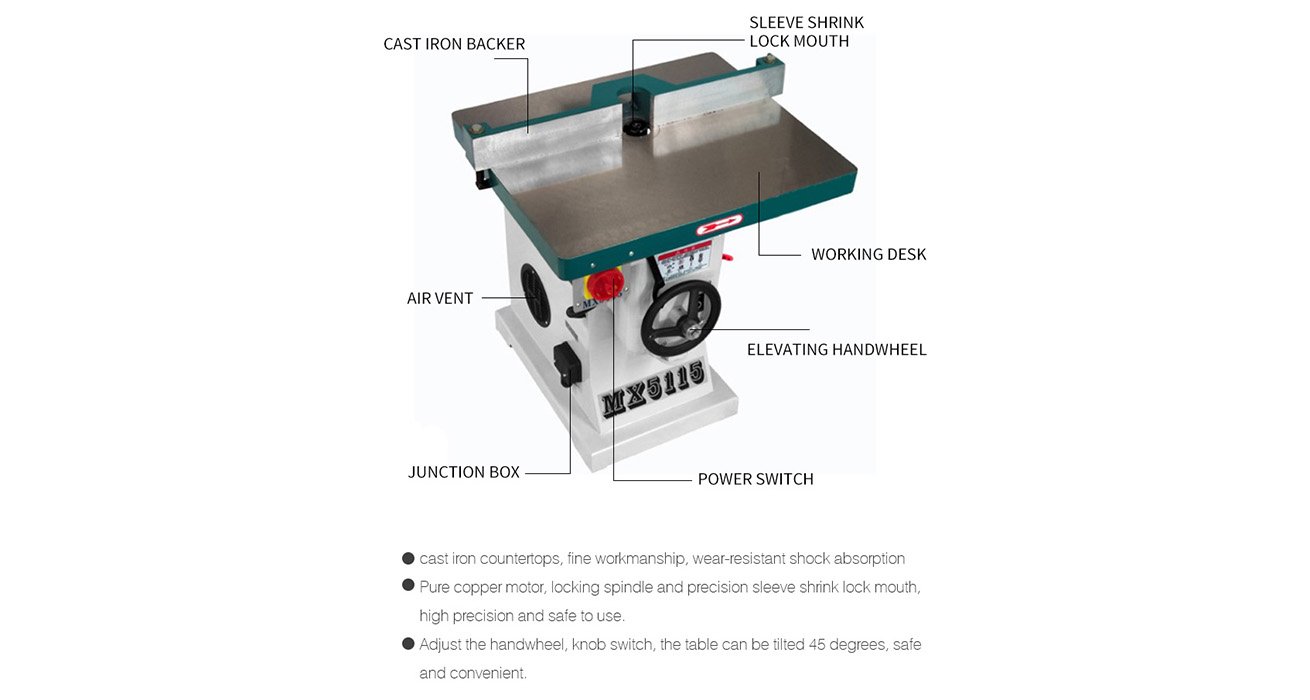

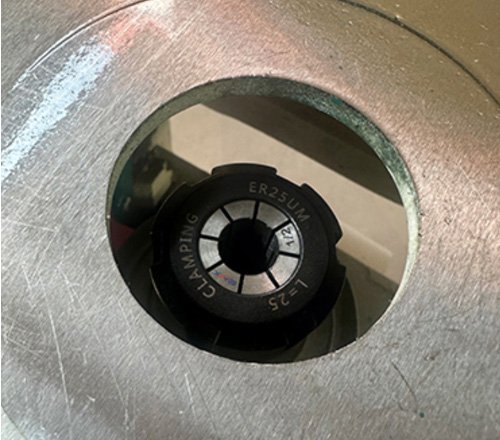

Sleeve shrinklock mouth
The high-precision lock nozzle isused to make the fixation stronger,and it can be used with different tools.
-

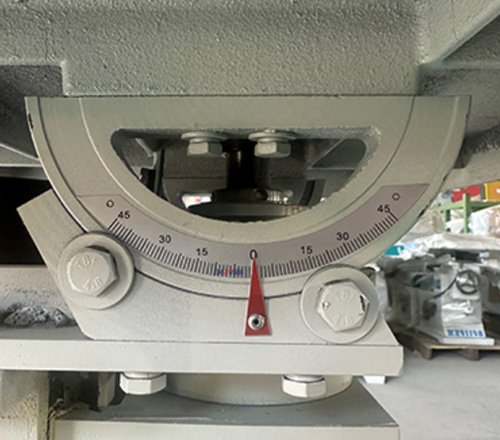

Workbench adjustment seat
The half-moon-shaped tableadjustment seat can adjust the tablesurface by 45 degrees.
-

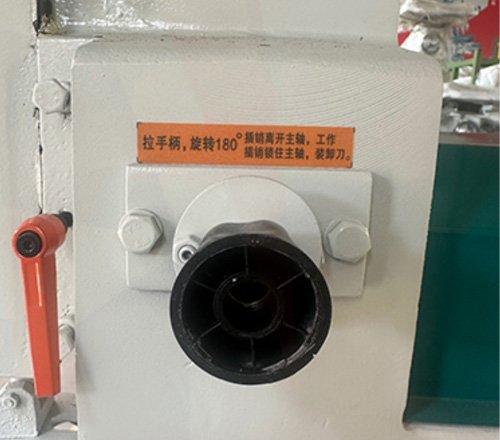

Spindle lockingdevice
Use spindle locking device toprevent workWhen loosening, reduce therisk.
-

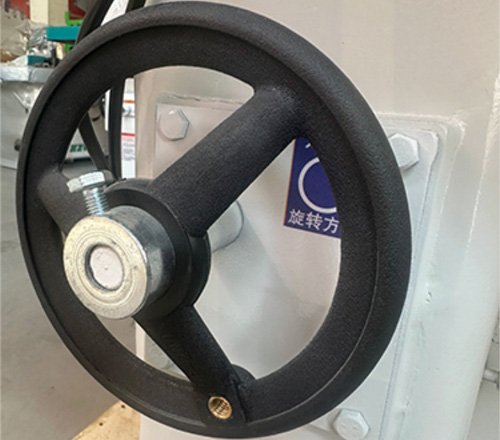

Table liftinghand wheel
The worktable lifting hand wheel isconvenient to control the lifting ofthe worktable
-

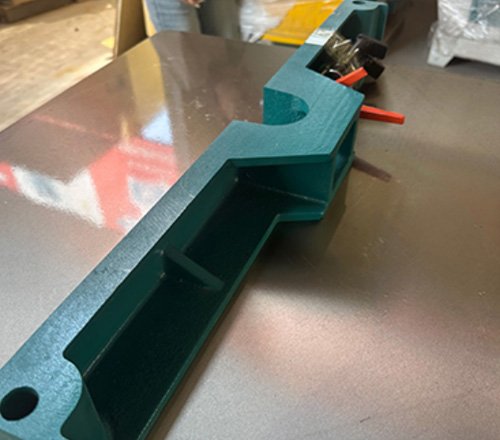

Cast iron backrest adjustment
No wrench and screw, easy to adjust.
