- Multi blade saw

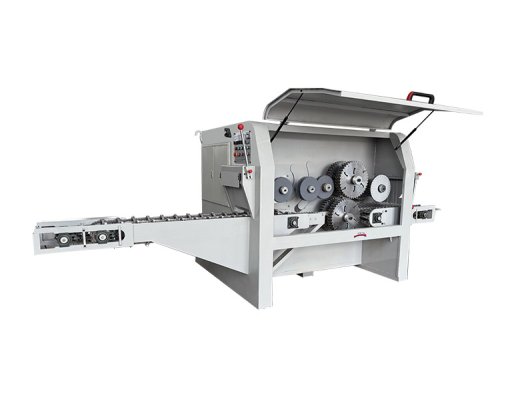

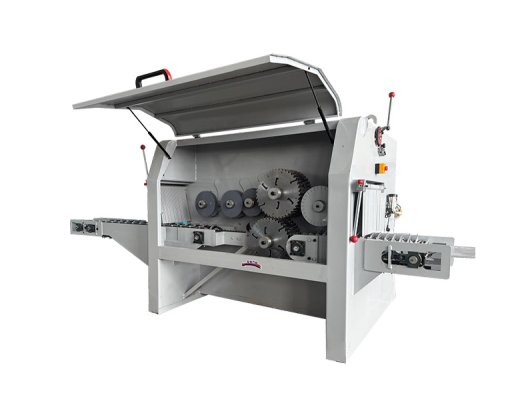

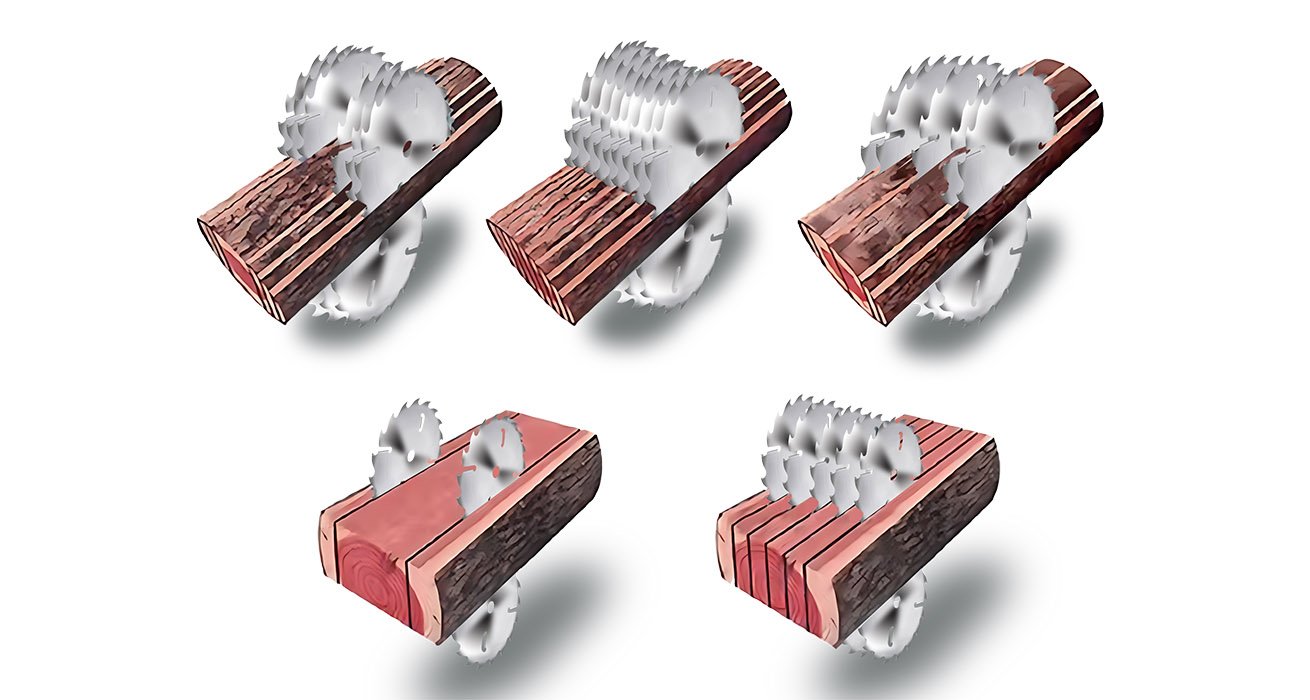

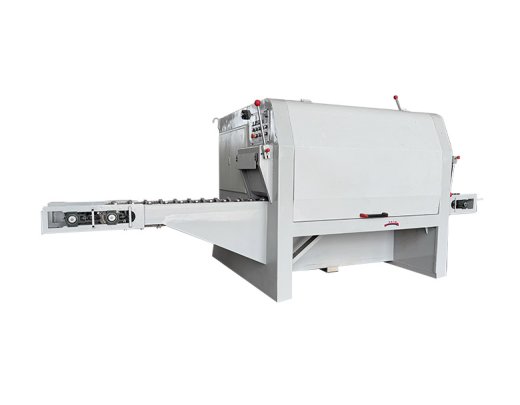

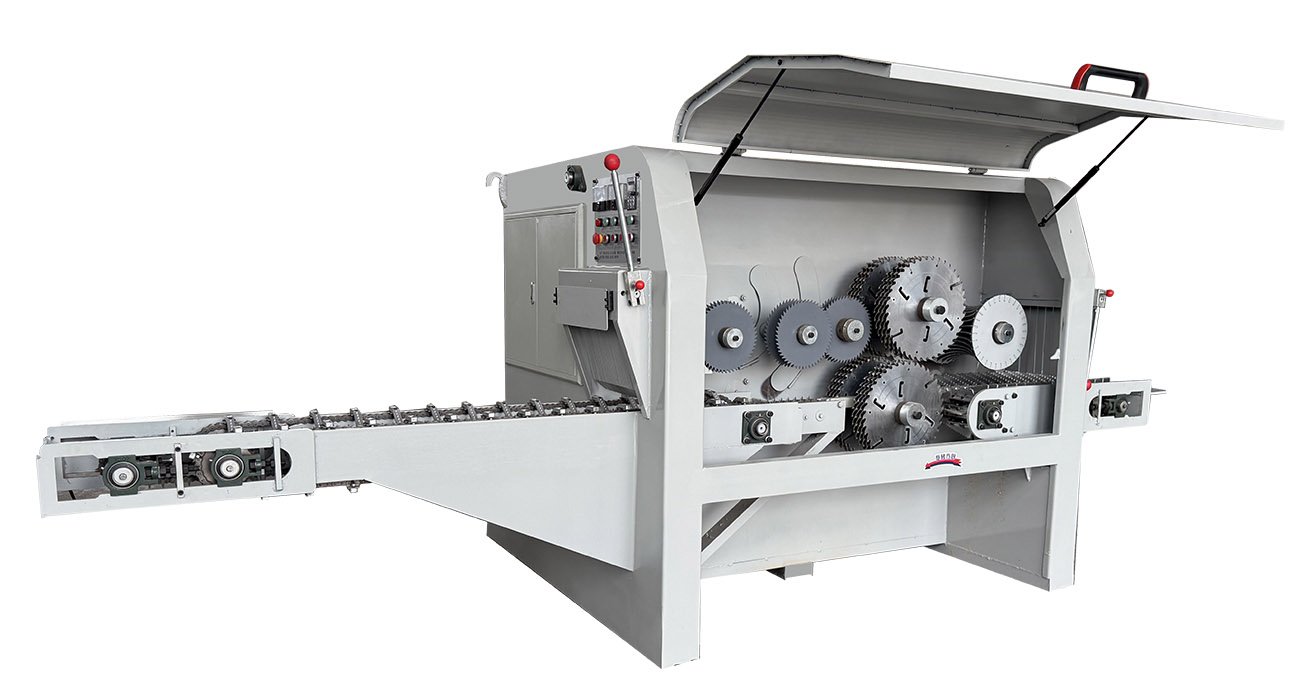

1, High-Efficiency Multi-Blade Rip Saw for Precision Wood Plank Cutting Enhance your wood processing with our advanced Multi-Blade Rip Saw, designed for efficient and precise plank cutting. Multiple blades can cuts through various wood types, significantly reducing cutting time. 2, It ensures consistent plank thickness and quality, ideal for large-scale projects.
3, Safety features include blade guards, emergency stops, and anti-kickback mechanisms.
4, With a user-friendly interface for easy blade adjustments, this saw is perfect for furniture makers, construction businesses, and lumber mills seeking to streamline operations and improve product quality.
Inquire now
+Add to cart
+Product Details
Reviews
Inquiry
Products Recommended
Product Details
| Model | R20 | R25 | R30 | R35 | R40 |
| Feed length | 40-400cm | 45-400cm | 55-400cm | 60-400cm | 70-400cm |
| Feed diameter | 6-20cm | 8-25cm | 10-30cm | 12-34cm | 15-39cm |
| Main motor power | 22kw/22kw | 30kw/22kw | 37kw/37kw | 45kw/37kw | 45kw/45kw |
| Feeding motor power | 1.5kw | 2.2kw | 3kw | 1.5kw*2 | 1.5kw*2 |
| Spindle diameter | 50mm | 60mm | 60mm | 70mm | 70mm |
| Spindle speed | 3300r/min | 3300r/min | 2650r/min | 2450r/min | 2300r/min |
| Cooling method | water cooling | water cooling | water cooling | water cooling | water cooling |
| Saw blade specifications | 305*50*2.6mm | 355*60*3.2mm | 405*60*3.2mm | 455*70*3.8mm | 500*70*4.0mm |
| Size | 340*180*155cm | 360*190*160cm | 410*200*165cm | 420*210*170cm | 450*220*170cm |
| Machines other than the above parameters can be customized.Please contact the merchant for details. | |||||
-

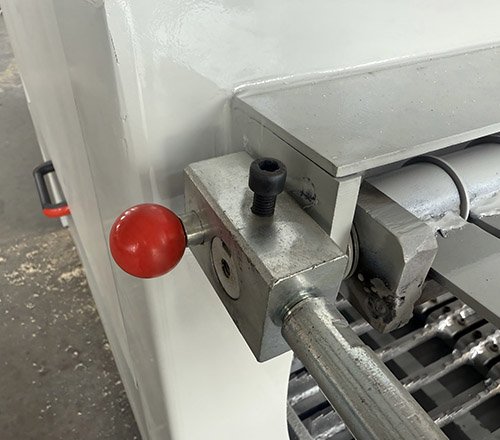

Anti-rebound device
-

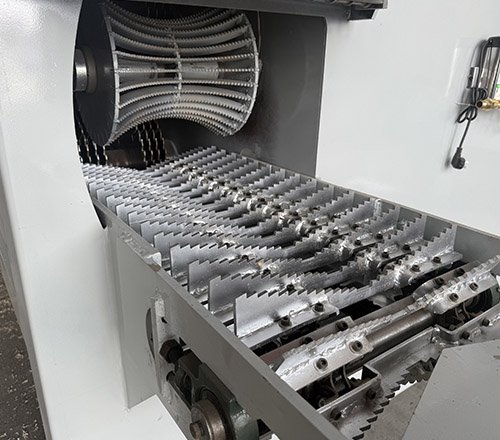

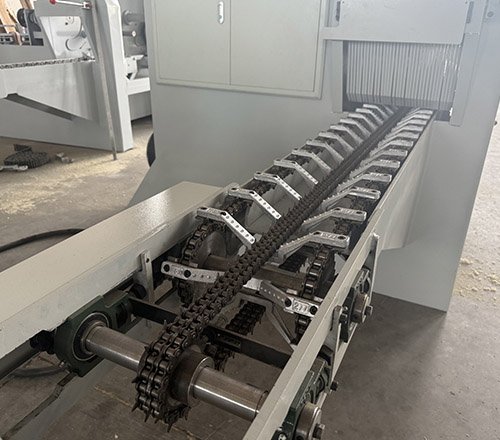

Front conveyor
-

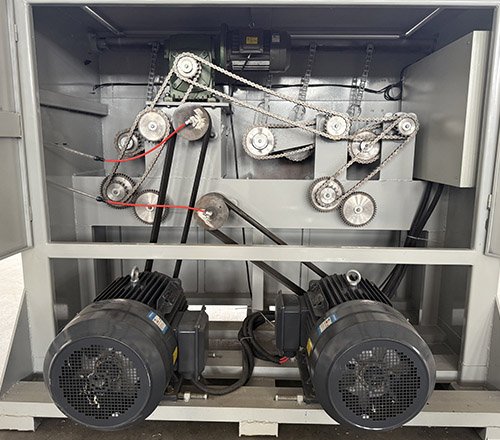

Internal structure
-

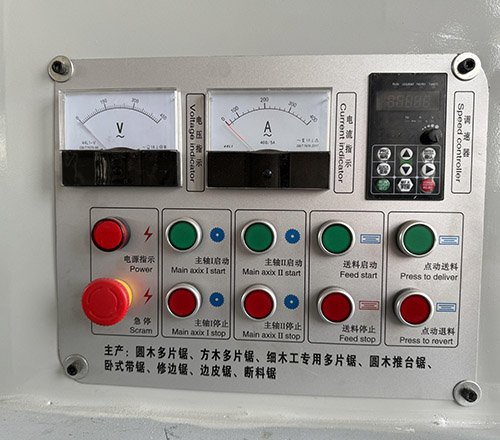

Control Panel
-

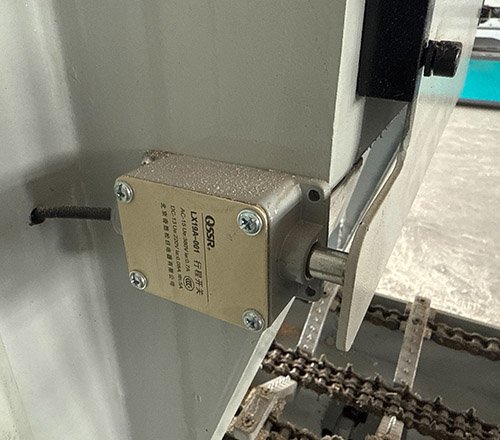

Limit switches
-
Rear conveyor
