- Wood Hot Press Machine
Is suitable for furniture production factory, wooden door factory, artificial board of second operation veneering, to hot-pressing bonding panel furniture, building partition wall, wooden door, fireproof door surface materials. In a variety of man-made board, such as: plywood, core-board, MDF, particle board’s surface pressing all kinds of decorative materials, decorative fabric, wood veneer, PVC, etc., It can also be used for veneer drying, leveling, color decoration wood leveling, finalize the design and the effect is remarkable.
Inquire now
+Add to cart
+Product Details
Reviews
Inquiry
Products Recommended
Product Details
| Model | 120*3layer | 120*5layer | 200*5layer |
| Total pressure | 120 | 120 | 200 |
| Platen size | 2500*1300mm(Support) | 2500*1300mm(Support) | 2500*1300mm(Support) |
| Number of layers | 3 | 5 | 5 |
| Number of platens | 4 | 6 | 6 |
| Heating power | 37kw | 49.5kw | 90kw |
| Pressure pump power | 7kw | 7kw | 7.5lkw |
| Max temperature | 200℃ | 200℃ | 200℃ |
| Heating media | Thermal oil or steam | Thermal oil or steam | Thermal oil or steam |
-
Product Details

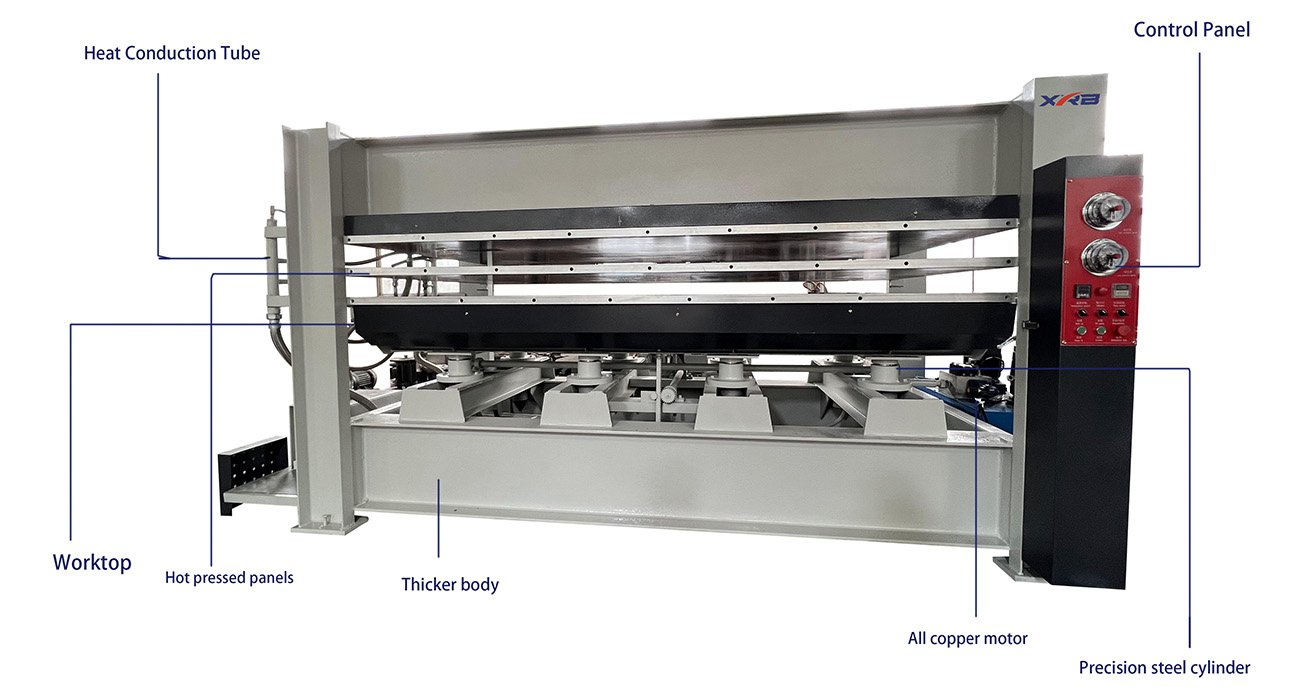

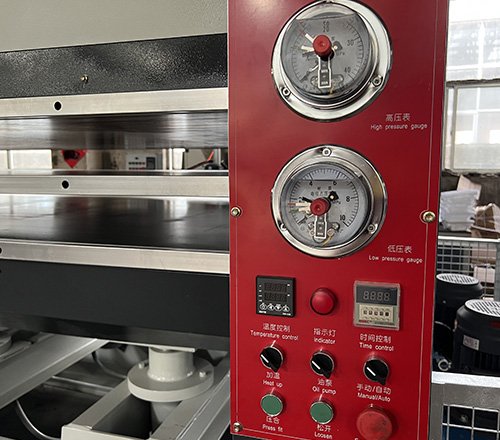

Push-button operation panel, simple operation, equipped with time, temperature control table, always monitor the operation of the machine, a key start, with an emergency stop button switch, high safety performance
-
Product Details

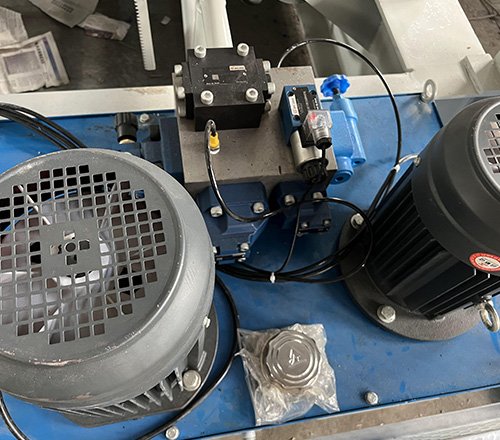

Adopt new integrated hydraulic system with accumulator control system and zero configuration pressure sensor to control the use of pressure; up and down configuration of large-capacity oil tank and new direct-connected liquid filling device; configuration of forced air cooling system to effectively reduce the working temperature of the hydraulic system
-
Product Details

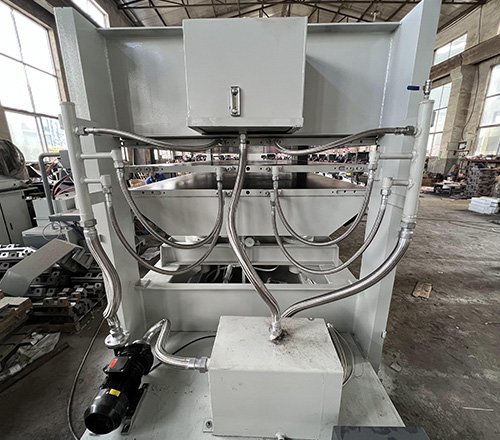

The oil is heated in the oil tank and then flows into the oil channel inside the hot press, so the temperature is more balanced than the direct heating tube and the error value is small.
-
Product Details

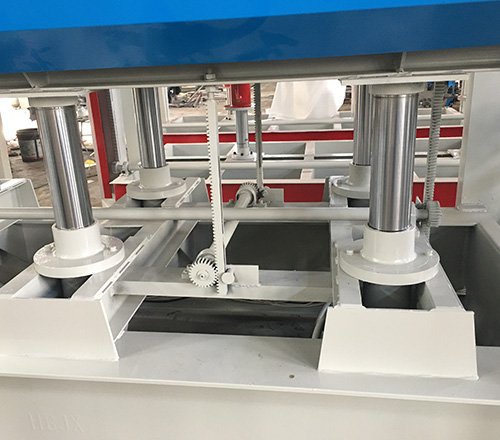

The cylinder body is designed with steel to ensure stability, good sealing, and good safety
