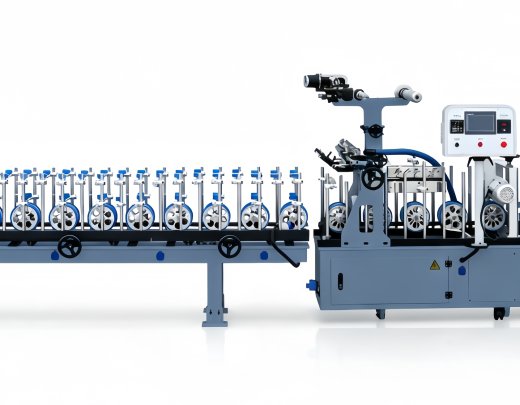

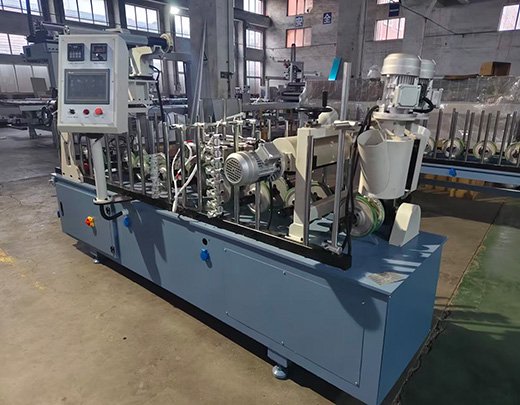

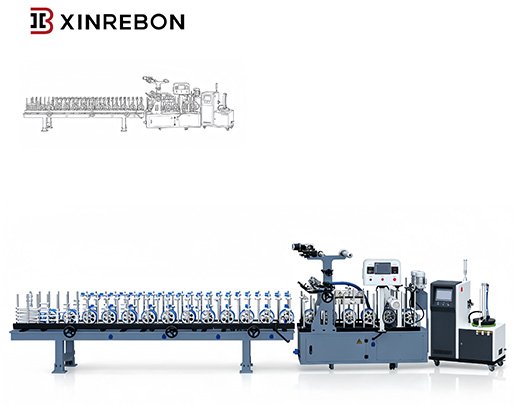

Profile Wrapping Machine
High-Precision Wrapping:
Ensures flawless finish for profiled surfaces.
Strong PUR Adhesion:
Provides durable bonding for long-lasting results.
Efficient & Stable Operation:
Operates smoothly with minimal maintenance.
Widely Applicable:
Suitable for various woodworking projects including moulding and panels.
Precision Control System:
Offers accurate control for smooth and clean wrapping.
Inquire now
+Add to cart
+Product Details
Reviews
Inquiry
Products Recommended
Product Details
Machine Features
This machine is capable of laminating decorative materials such as PVC, wood veneer, decorative paper,PP and PU onto the surface of profiles made from MDF, plastic panels, aluminum alloy and other substrates.It adopts a dedicated PUR hot melt melting and glue supply system equipped with a 5-gallon platen glue melter. Advanced auxiliary systems including three-sided preheating device, photoelectric deviation correction system and three-sided dust removal unit are available as optional configurations.
The machine features a split-type structure. One glue coating system can be paired with any number of pressing sections. This design allows quick switching of different moulding profiles, greatly improving production efficiency. It avoids the tedious work of frequent pressure roller adjustments during product changeovers, and significantly reduces overall equipment procurement costs.
Profile Wrapping Machine | ||
Model | 350B-PUR | 450B-PUR |
Maximum Adhesive Application Width | 350mm | 450mm |
Maximum Processing Thickness | 120mm | 120mm |
Lamination Speed | 0-50m/min | 0-30m/min |
Total Power | 10.5kw | 10.5kw |
Optional configuration
-

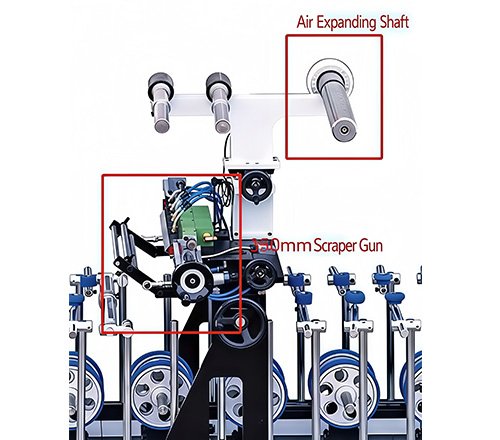

Gluing Unit
The film winding shafts on thegluing section are airexpansion shafts equippedwith electromagnetic brakes.
-
5-Gallon Platen Hot Melt Glue Melter(20KG Adhesive Capacity)
The platen glue melter requires machine shutdown for glue replacement.After refilling adhesive, reheating of the glue is mandatory before resuming production.
-

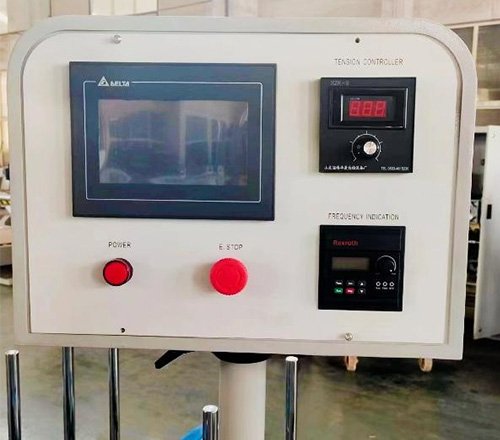

Touch Screen & PLC Control System
It realizes real-time data transmission between the profile wrapping machine and the glue melter. The glue output automatically adjusts synchronously with the running speed of the machine, and the glue application weight can be precisely controlled at around 30 grams per unit area
-
Split-type structure
Split-type structure separates the gluing section and pressing sections, enabling quick replacement of different pressing assemblies.
-

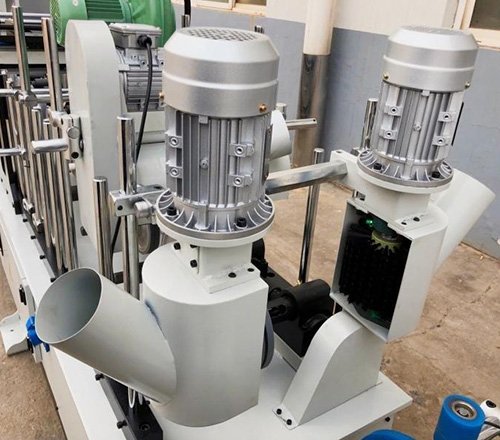

three-sided dust removal unit
This system cleans three sides of the profile before lamination, ensuring a smooth and flat finished surface after wrapping.
-

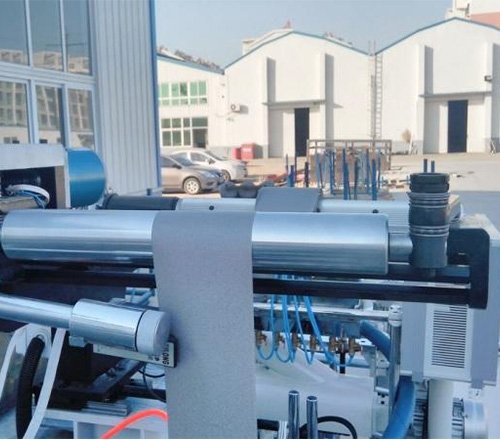

photoelectric deviation correction system
The photoelectric deviation correction system can adjust decorative materials to the accurate position within two running profiles and maintain stable alignment continuously.
-

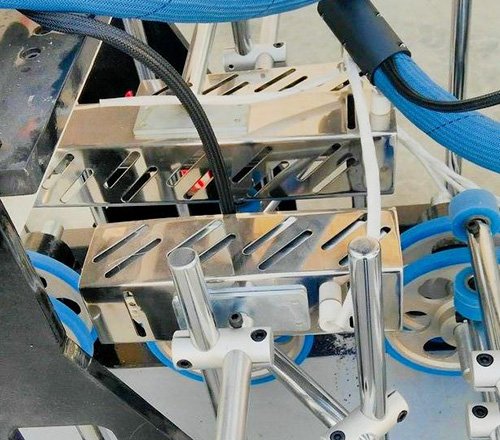

three-sided preheating device
The three-sided preheating system effectively enhances the bonding force during wrapping operation in cold winter environments.
-

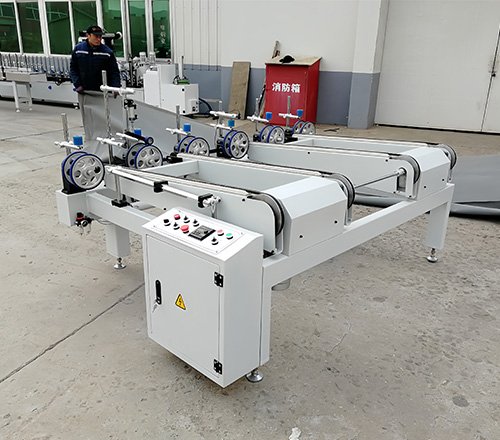

Automatic Lifting Feeder
Lifting automatic feeding design for wood mouldings, compatible with L-shaped profiles, partial irregular special-shaped mouldings and flat straight profiles.
-

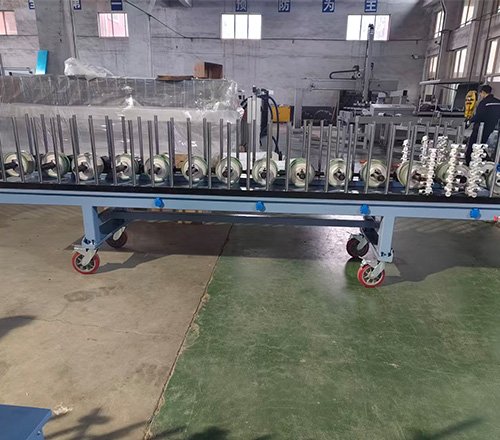

Split-Type Separate Structure
The gluing unit and pressing sections are independent split assemblies, allowing fast replacement of different pressing modules to match various profile production demands.
-
Non-Stop Glue Replenishing Melter
It enables continuous production without halting the machine, saving production time and drastically reducing hot melt glue waste.
