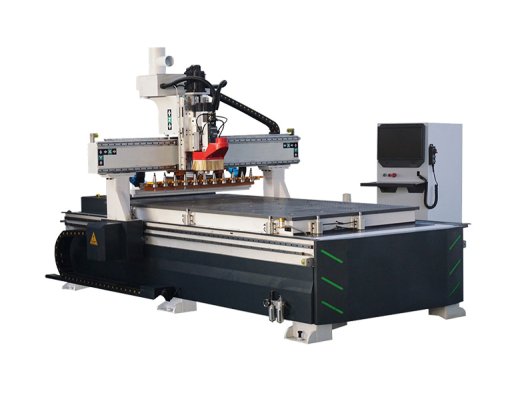

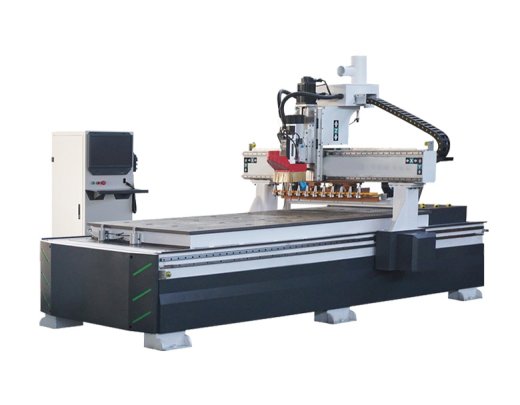

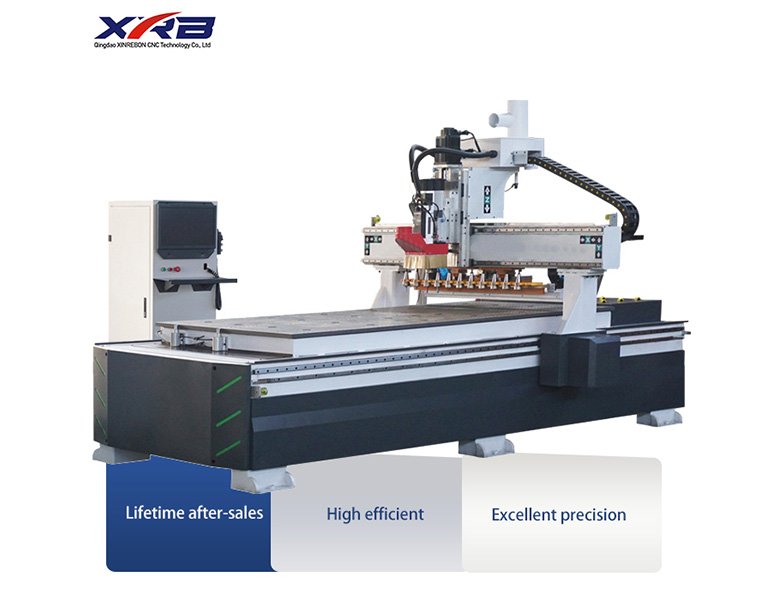

1325ATC' ATC CNC Router

- 1325ATC' ATC CNC Router

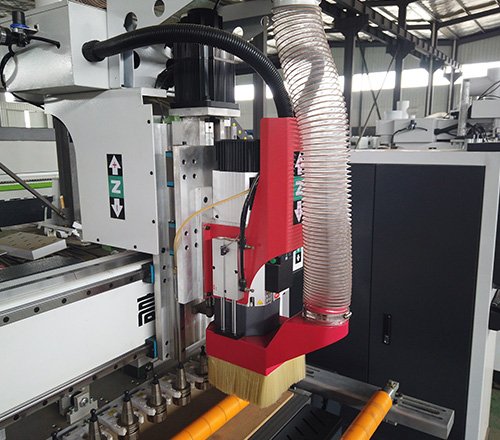

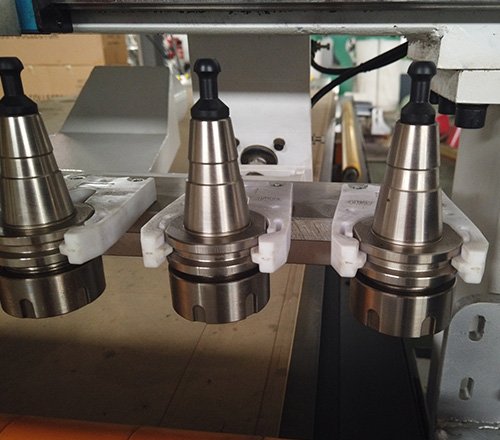

1. UE481 with 9 kW China ATC air cooling spindle and linear tool changing, the machine can change tools automatically during the work.

2. Widely used in furniture industry.

3. Semi-tracking tool change reduces the weight of the fuselage and speeds up the tool change.

4. The bed is welded with steel pipe, high-temperature tempering, durable.

5. Wireless handwheel, keyboard, mouse. The unlimited range can control the machine from a distance.

6. Large Working Area: With a working table size of 1300 x 2500 mm, this CNC router offers a spacious area for cutting and engraving large-scale projects. It is suitable for users who require a high degree of flexibility and versatility in their work.

Inquire now

Add to cart

Product Details

Reviews

Inquiry

Products Recommended

Product Details

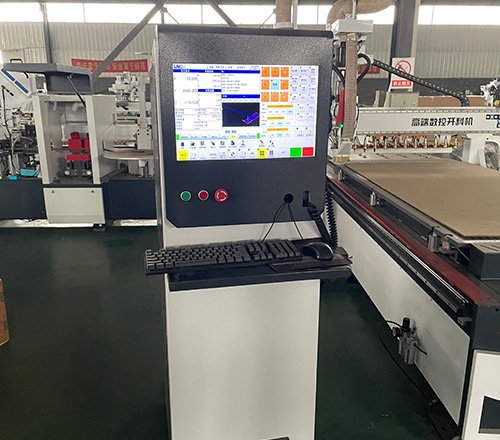

Advanced Control System: The LNC controller provides efficient and precise control over the machine's movements, allowing for smooth and accurate cuts. The 11kw Inovance inverter ensures stable and reliable operation.

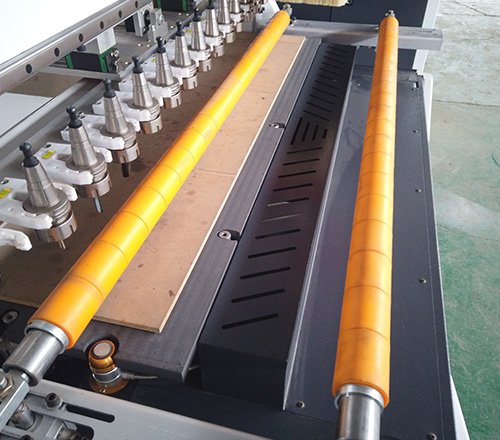

"Automatic loading and unloading tables are optional, design of two working tables is improve efficiency“

1. Drilling: Adopts different diameter drills to drill different sizes hole on various boards.

2. Grooving: With suitable tools to do grooving or slotting, it also can finish Clamex joint slots for Lamello.

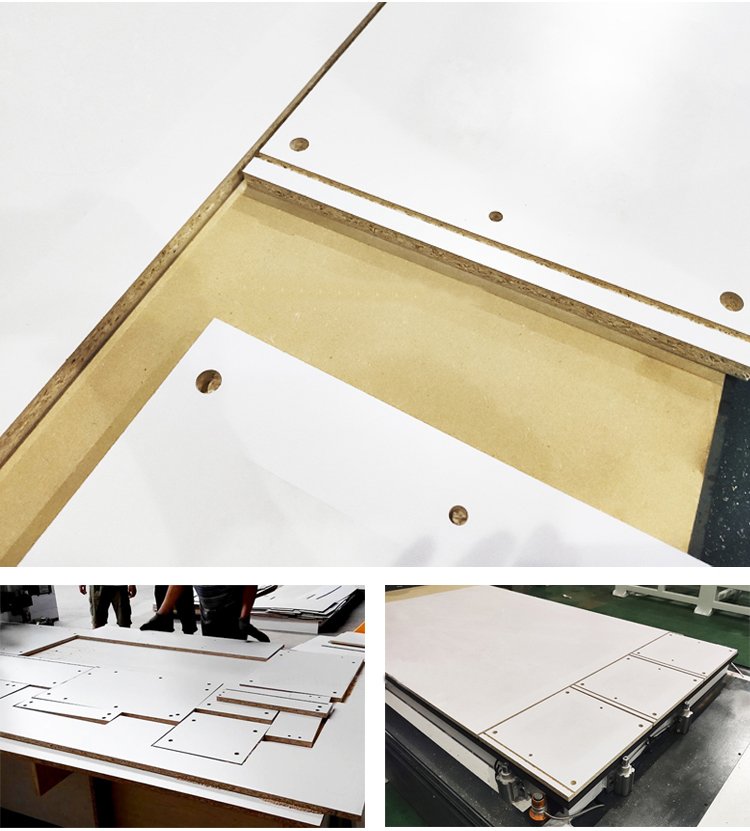

3. Cutting: Suitable for the regular shapes and irregular shapes cutting, also can do edging.

4. Milling: Adopts different shapes CNC milling tools to achieve beautiful designs.

5. Hollow-cutting: Solve production of the carved screens, separating boards, or other products that need to be hollowed cut.

6. Carving/engraving: 2D carving design on wooden, composite, or other soft raw materials.

If you need to do 3D design, please contact us to inquire about other 4/5 axis CNC machines for you."

Overall size：	360026002000mm
Working size：	1220*2440mm
Working area：	12202440150mm
Max speed：	60m/min MAX
Working speed：	15-20m/min MAX depends on materials and thickness
Main spindle：	CC 9KW 24000r/min
Body frame：	Annealing and finishing milling a molding process, stable structure, high precision, small deformation

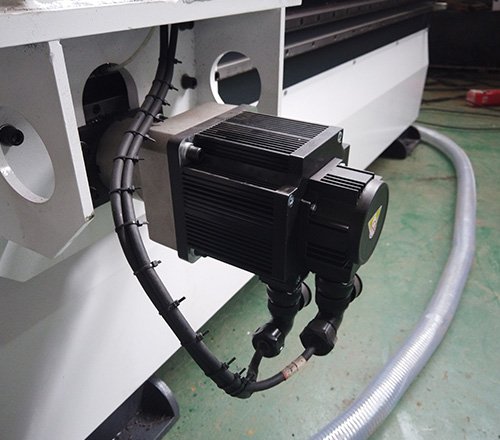

Drive system：	Servo motor
Gear rack：	Taiwan alloy hard tooth face helical rack + alloy hard tooth face helical gear
Guide：	30#

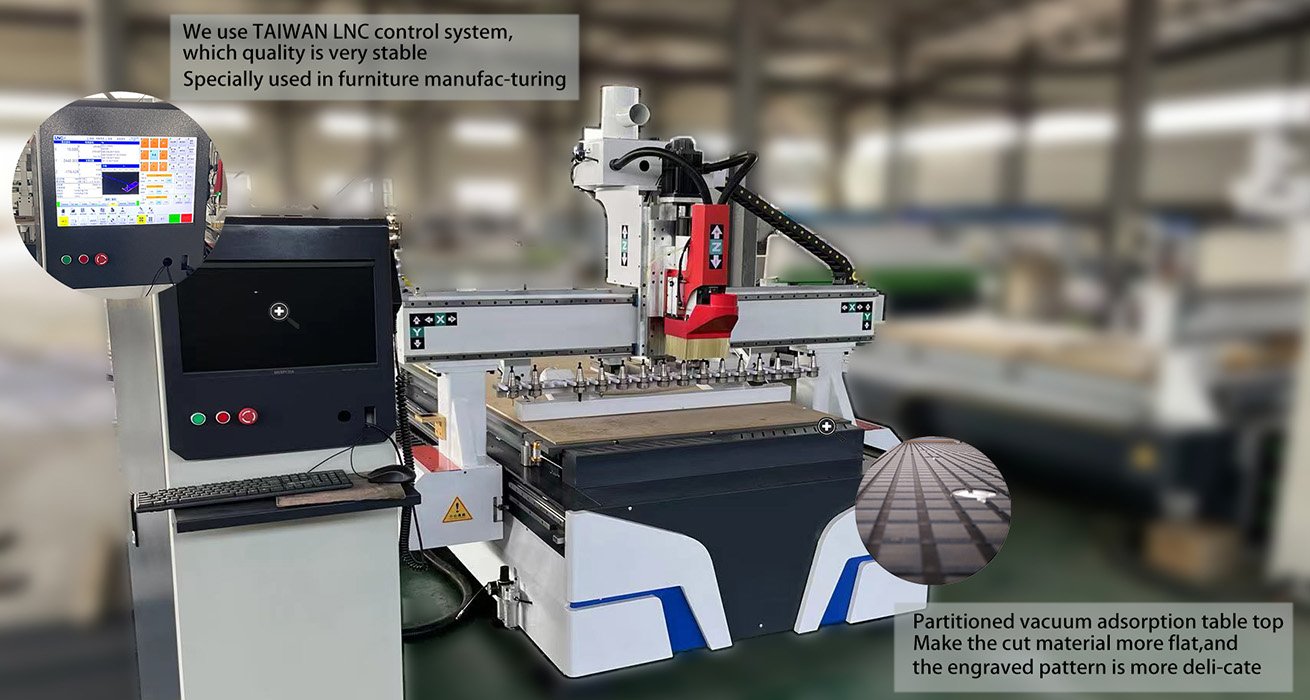

Control system：	Taiwan LNC system

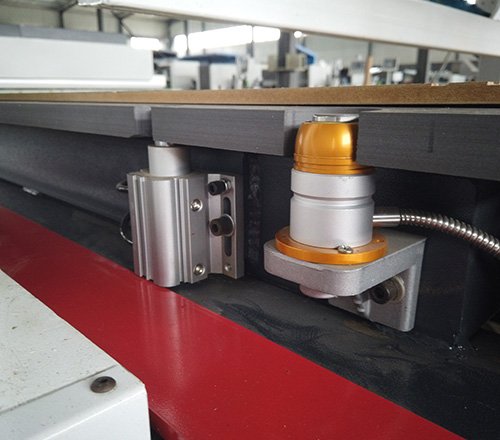

Locate mode：	High precision automatic positioning cylinder

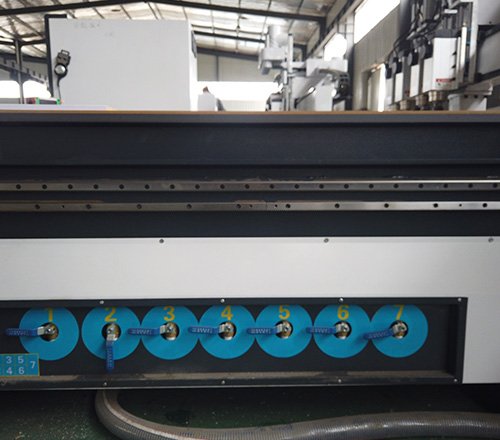

Table structure：	Strong Vacuum worktable

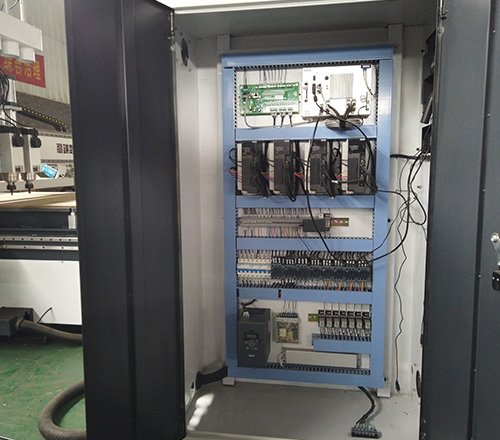

Electrics：	Chint Electric
Inverter：	Fuling
Vacuum pump：	7.5 kw water vacuum pump
Cable：	shanghai BOSHI flexible towline cable with shield
